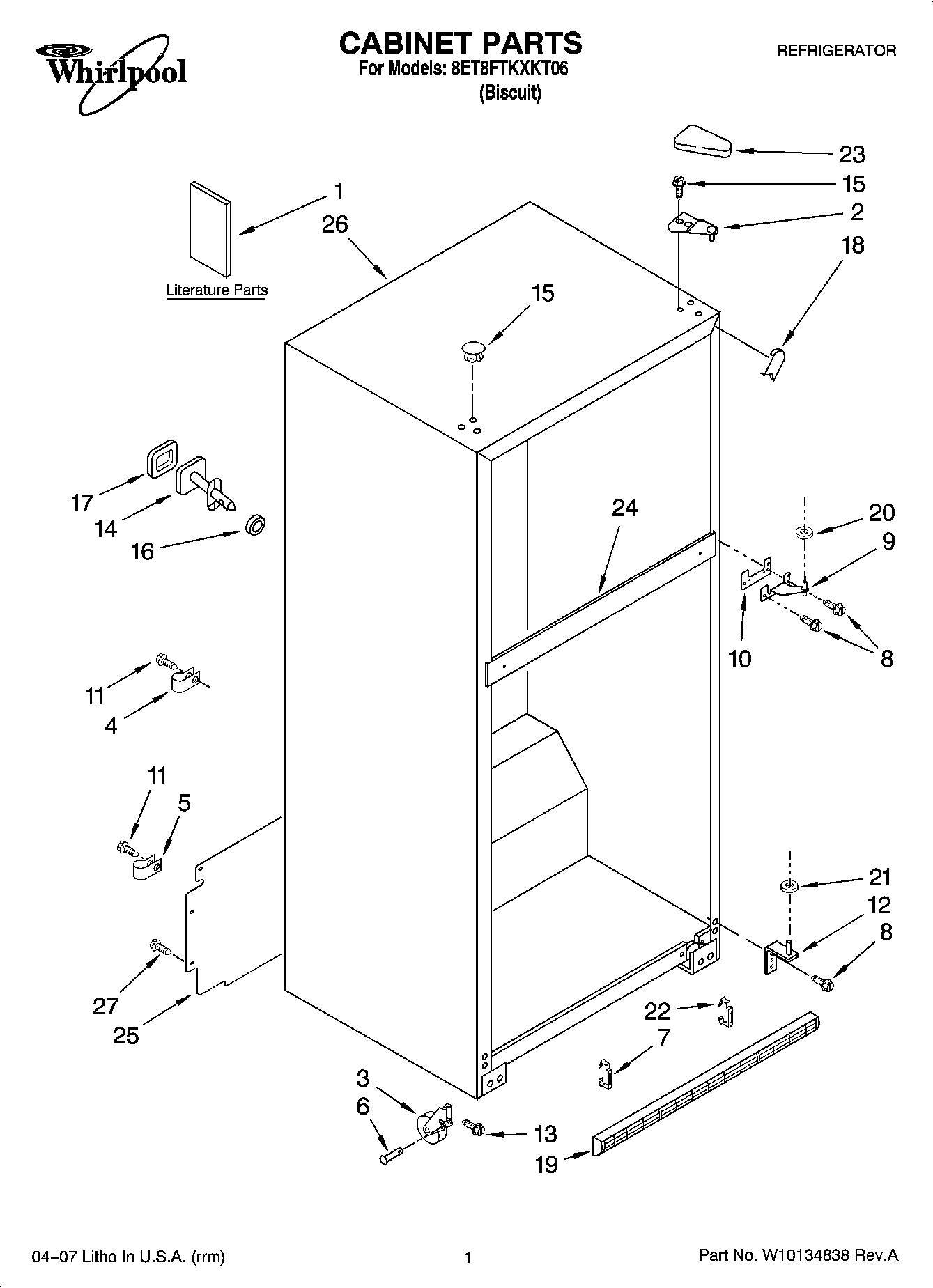

8ET8FTKXKT06 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide (English)
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide (Chinese)
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	489348 Whirlpool Refrigerator Tube Clamp
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
7	CLIP, GRILLE
8	WP489497 Whirlpool Screw
9	WP2254618 Whirlpool Center Door Hinge
10	WP2183854 Whirlpool Refrigerator Shim
11	WP489464 Whirlpool Refrigerator Screw
12	WP2254473 Whirlpool Refrigerator Door Hinge
13	WP3400504 Whirlpool Refrigerator Screw
14	Fitting, Water Tube (Not Serviced)
15	Hole Plug (6) (Biscuit)
16	Seal, Front (Not Serviced)
17	Seal, Rear (Not Serviced)
18	W10283958 Whirlpool Refrigerator Filler
19	WP2254386 Whirlpool Refrigerator Grille
20	WP489467 Whirlpool Hinge Shim
21	WP487576 Whirlpool Washer
22	2254385 Whirlpool Refrigerator Clip
23	2213364 Whirlpool Refrigerator Cover
24	Rail, Center (Not Serviced)
25	Cover, Unit
26	Cabinet, (Not A Serviceable Part)
27	WP489442 Whirlpool Refrigerator Screw
