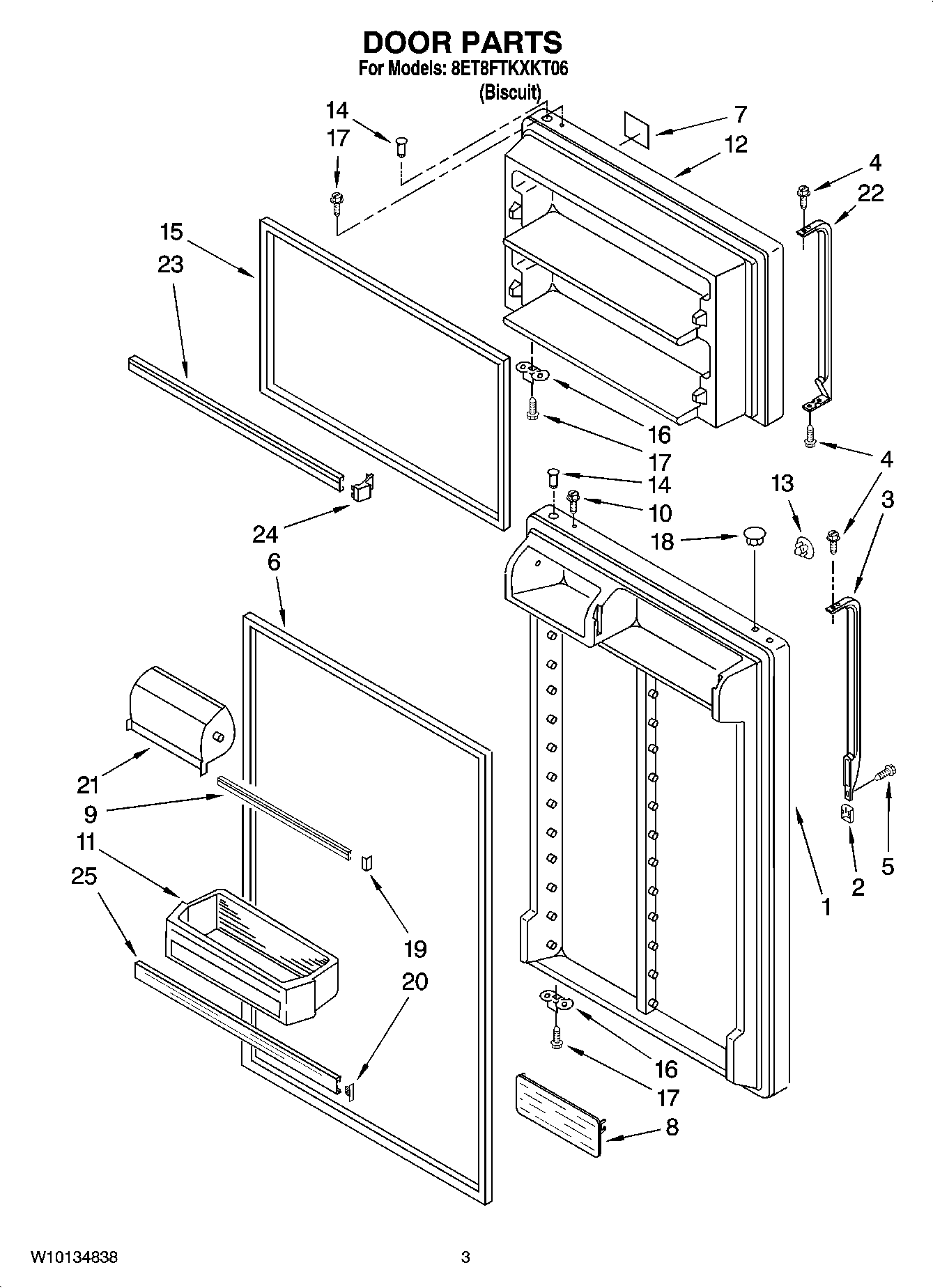

8ET8FTKXKT06 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2	Cover, Trim (Biscuit)
4	8534058 Whirlpool Refrigerator Screw
5	WP8281146 Whirlpool Screw
6	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
7	Nameplate (Biscuit)
8	WP2188234 Whirlpool Shelf
9	TRIM-DOOR
10	WP8281206 Whirlpool Refrigerator Screw
11	WP2204810 Whirlpool Refrigerator Cantilever Bin
12	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
13	WP2200936 Whirlpool Refrigerator Handle Plug
14	WP2314293 Whirlpool Refrigerator Thimble
15	2159327 Whirlpool Refrigerator Door Gasket
16	W11745278 Whirlpool Bracket
17	WP681249 Whirlpool Screw Assembly
18	WP2212649 Whirlpool Refrigerator Button Plug
19	ENDCAP-TRM
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	WP2218113 Whirlpool Dairy Door
22	4388949 Whirlpool Refrigerator Handle
23	Trim-Door (2)
24	ENDCAP
25	WPW10421484 Whirlpool Refrigerator Door Trim
