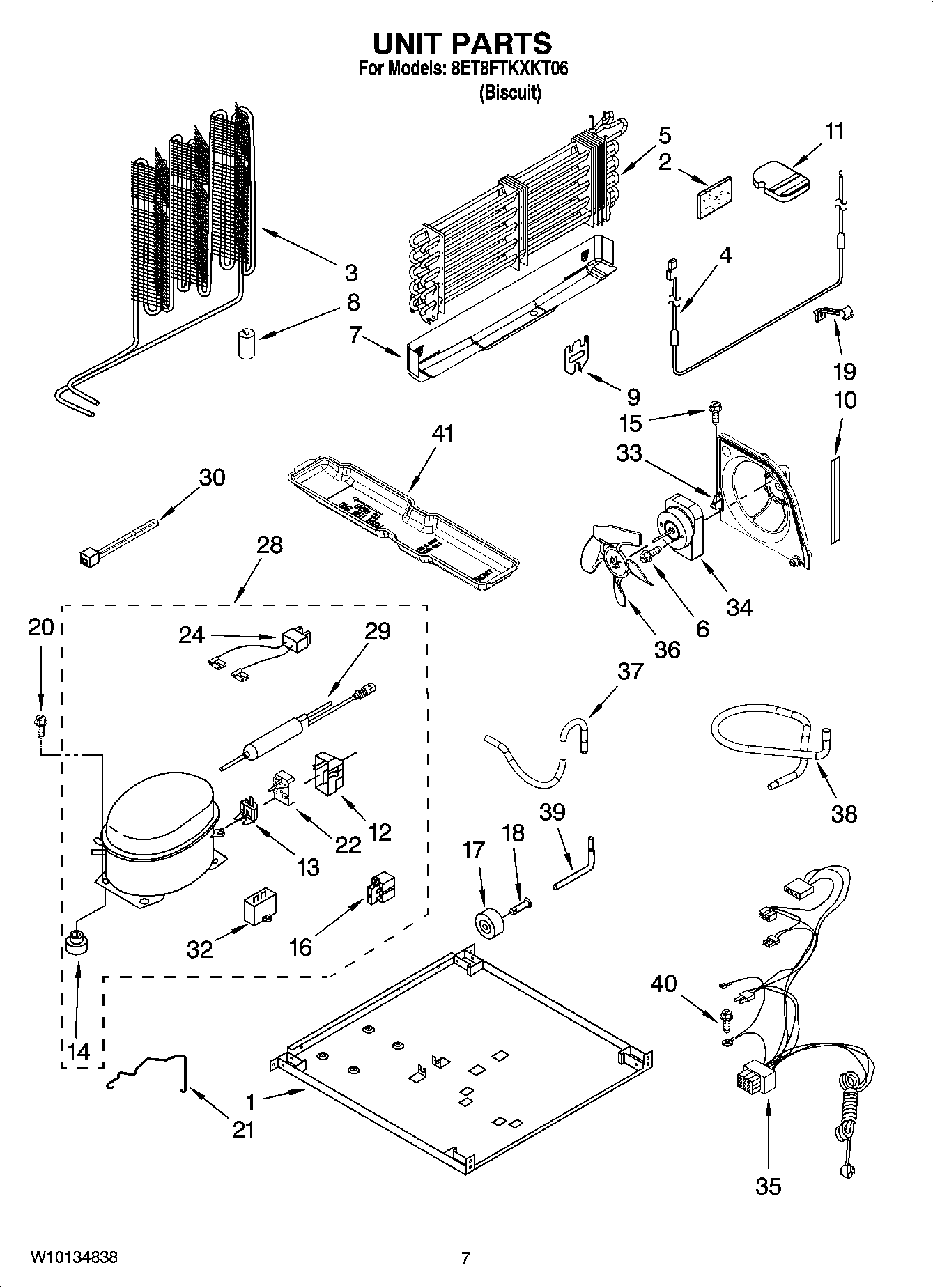

8ET8FTKXKT06 04 – UNIT PARTS

Products

Position	Product
1	Plate, Unit Mounting
2	W11553819 Whirlpool Refrigerator Insulation
3	WP2214960 Whirlpool Refrigerator Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	WPW10171469 Whirlpool Refrigerator Screw
7	Drain Pan
8	W10852725 Whirlpool Refrigerator Grommet
9	Bracket, Heater
10	Extension, Air Baffle
11	Support Block
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	3400518 Whirlpool Oven Foot Mount Screw
16	W10920279 Whirlpool Refrigerator Start Relay
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	2212996 Whirlpool Refrigerator Retainer
22	WP2225929 Whirlpool Refrigerator Start Device
24	WP2172890 Whirlpool Refrigerator Wire
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP2315541 Whirlpool Refrigerator Air Baffle
34	WP2188874 Whirlpool Refrigerator Condenser Motor
35	Wire Assembly Unit
36	W11458267 Whirlpool Refrigerator Fan Blade
37	Tube, Discharge
38	Tube, Suction
39	2154109 Whirlpool Refrigerator Tube
40	WP489128 Whirlpool Refrigerator Screw
41	Following Parts Not Illustrated and Optional Parts Not Included
41	VALVE, ACCESS (5/8“)
41	876764 Whirlpool Refrigerator Primary Valve
41	978027 Whirlpool Refrigerator Primary Valve
41	978030 Whirlpool Refrigerator Valve
41	WP978025 Whirlpool Refrigerator Valve
41	VALVE, ACCESS (1/2“)
41	978026 Whirlpool Refrigerator Primary Valve
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
41	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
