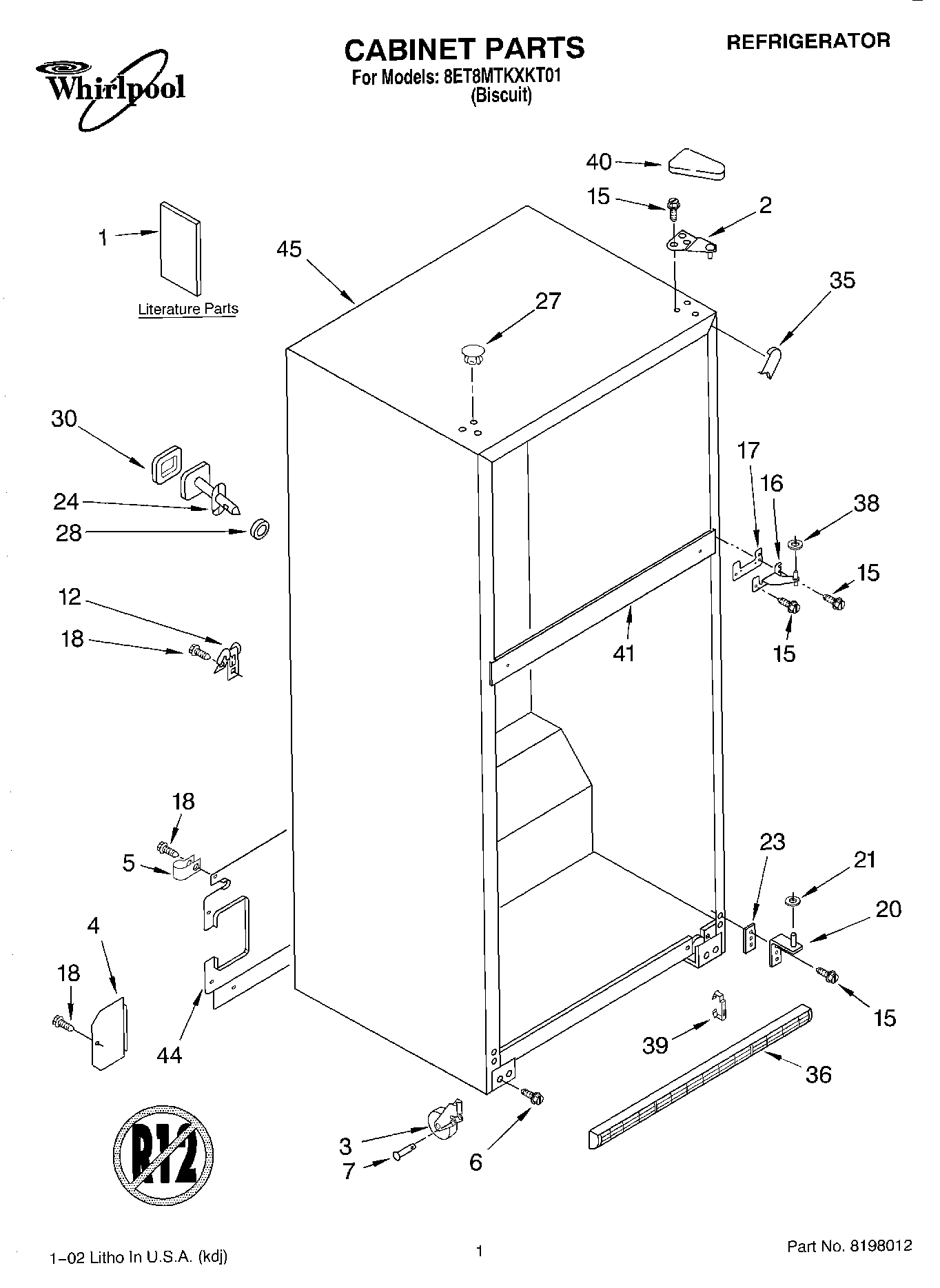

8ET8MTKXKT01 01 – CABINET, LITERATURE

Products

Position	Product
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
1	Literature Parts (Use & Care Guide)
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Cover, Water Valve
5	WP488366 Whirlpool Refrigerator Clamp
6	WP3400504 Whirlpool Refrigerator Screw
7	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	WP487576 Whirlpool Washer
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
35	W10283958 Whirlpool Refrigerator Filler
36	WP2254386 Whirlpool Refrigerator Grille
38	WP489467 Whirlpool Hinge Shim
39	CLIP, GRILLE
40	2213364 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
44	WP2189475 Whirlpool Refrigerator Unit Cover
45	Cabinet (Not A Serviceable Part)
