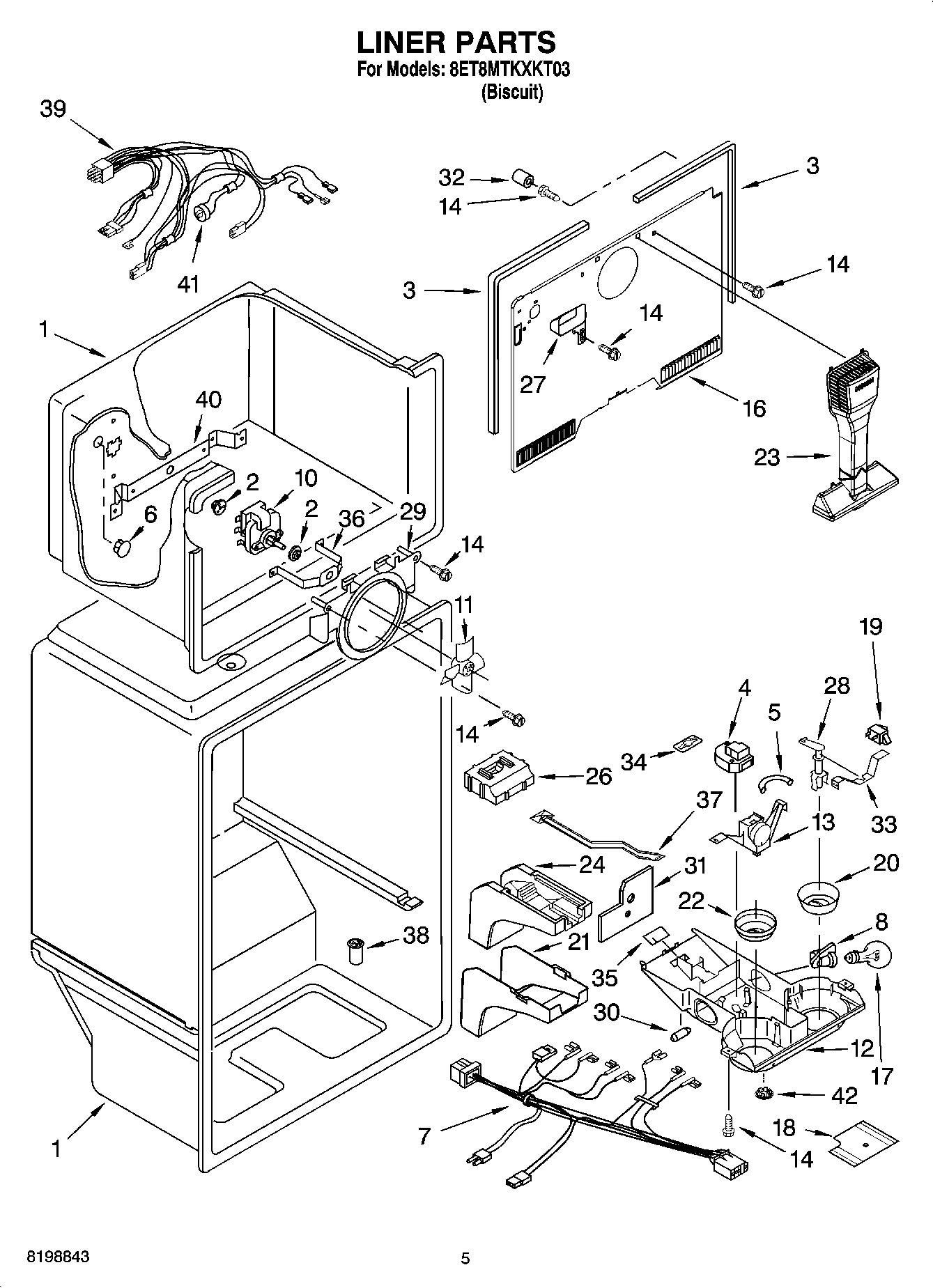

8ET8MTKXKT03 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assy. Control Box
84387478 Whirlpool Refrigerator Light Socket
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Illus. 5 & 18)
14WP489478 Whirlpool Refrigerator Screw
16Cover-Evaporator
17RANGE ONLY 40W 120V APPL BULB
18Shield
19W11384469 Whirlpool Door Switch
20Knob, Damper
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
26Air Diffuser, Top
27Cover, Hole
28Post, Damper
29Bracket, Fan Motor
30Weight, Thermal
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
33Bracket, Damper Knob
34Clip, Defrost Timer
35WP2205079 Whirlpool Refrigerator Seal
36Bracket, Evap. Fan, Front
37Damper, Air
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly, Freezer Compartment
40Bracket, Evap. Fan, Rear
41WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
42940014 Whirlpool Refrigerator Primary Button Plug
