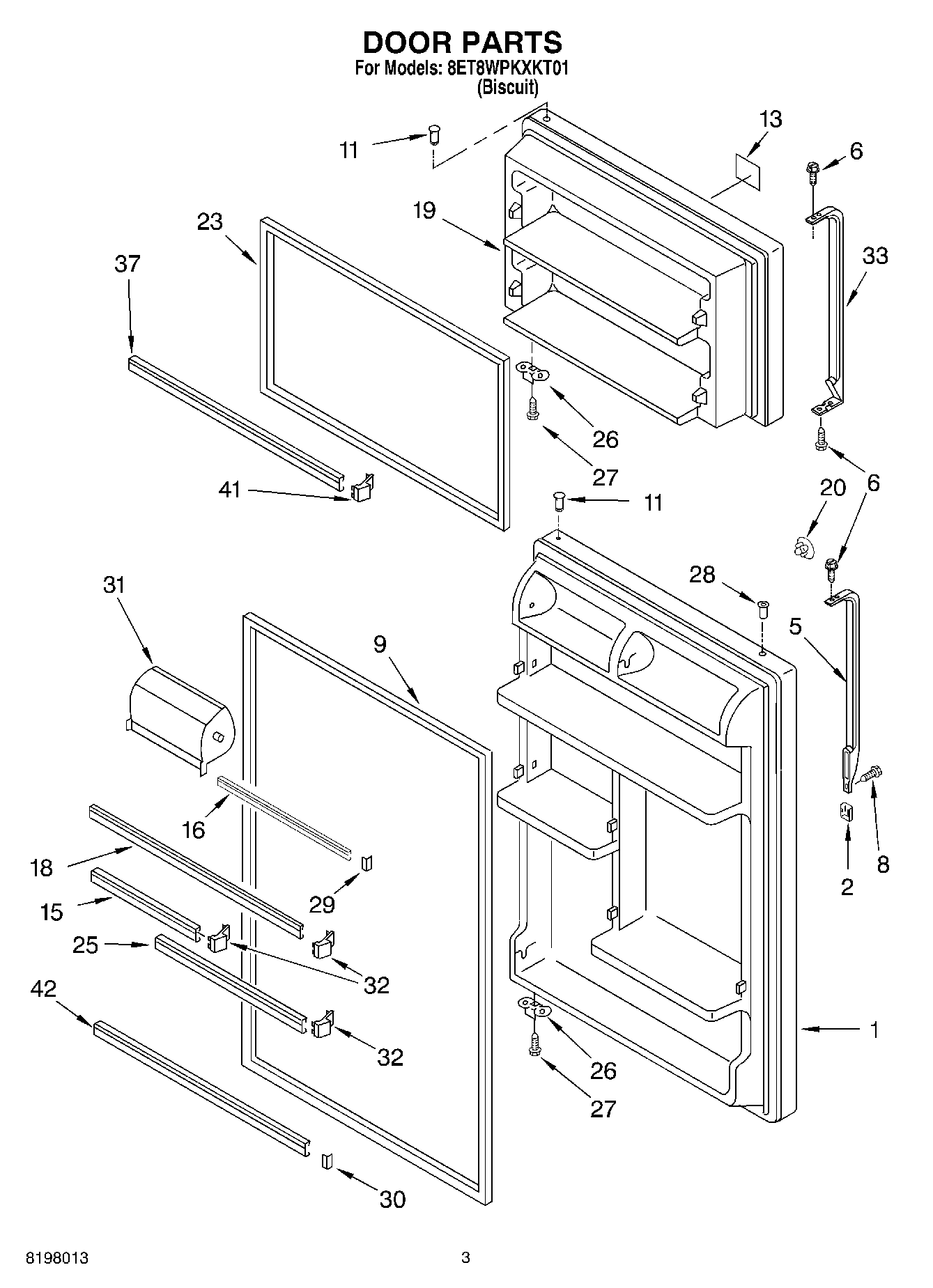

8ET8WPKXKT01 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.9 & No.22) (Biscuit)
2Cover, Trim (Biscuit)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
11WP2183003 Whirlpool Thimble
13Nameplate (Biscuit)
15Trim, Door
16TRIM-DOOR
18WPW10421484 Whirlpool Refrigerator Door Trim
19Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
20WP2200936 Whirlpool Refrigerator Handle Plug
232159327 Whirlpool Refrigerator Door Gasket
25WP2195943 Whirlpool Shelf Retainer Bar
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
32WP2195915 Whirlpool Door Shelf Support
334388949 Whirlpool Refrigerator Handle
37Trim-Door (2)
41ENDCAP
42Trim, Door Shelf
