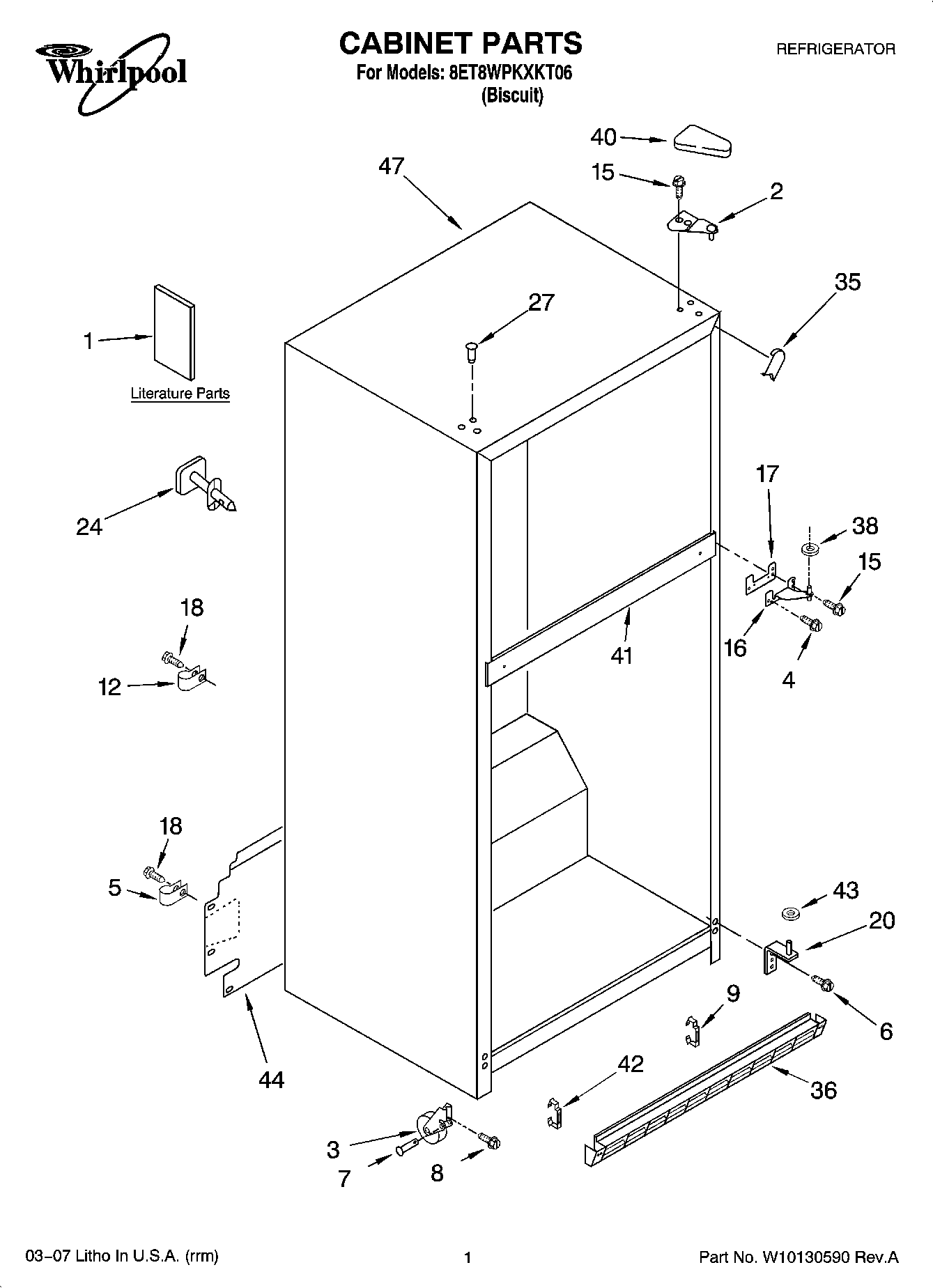

8ET8WPKXKT06 01 – CABINET PARTS

8ET8WPKXKT06 01 – CABINET PARTS

Written by

in

8ET8WPKXKT06 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide (English)
1Use & Care Guide (Chinese)
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489442 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
92254385 Whirlpool Refrigerator Clip
12489348 Whirlpool Refrigerator Tube Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
35W10283958 Whirlpool Refrigerator Filler
36Grille
38WP487576 Whirlpool Washer
402213364 Whirlpool Refrigerator Cover
41Rail, Center (Not Serviced)
42CLIP, GRILLE
43WP489467 Whirlpool Hinge Shim
44Cover, Unit
47Cabinet, (Not A Serviceable Part)
