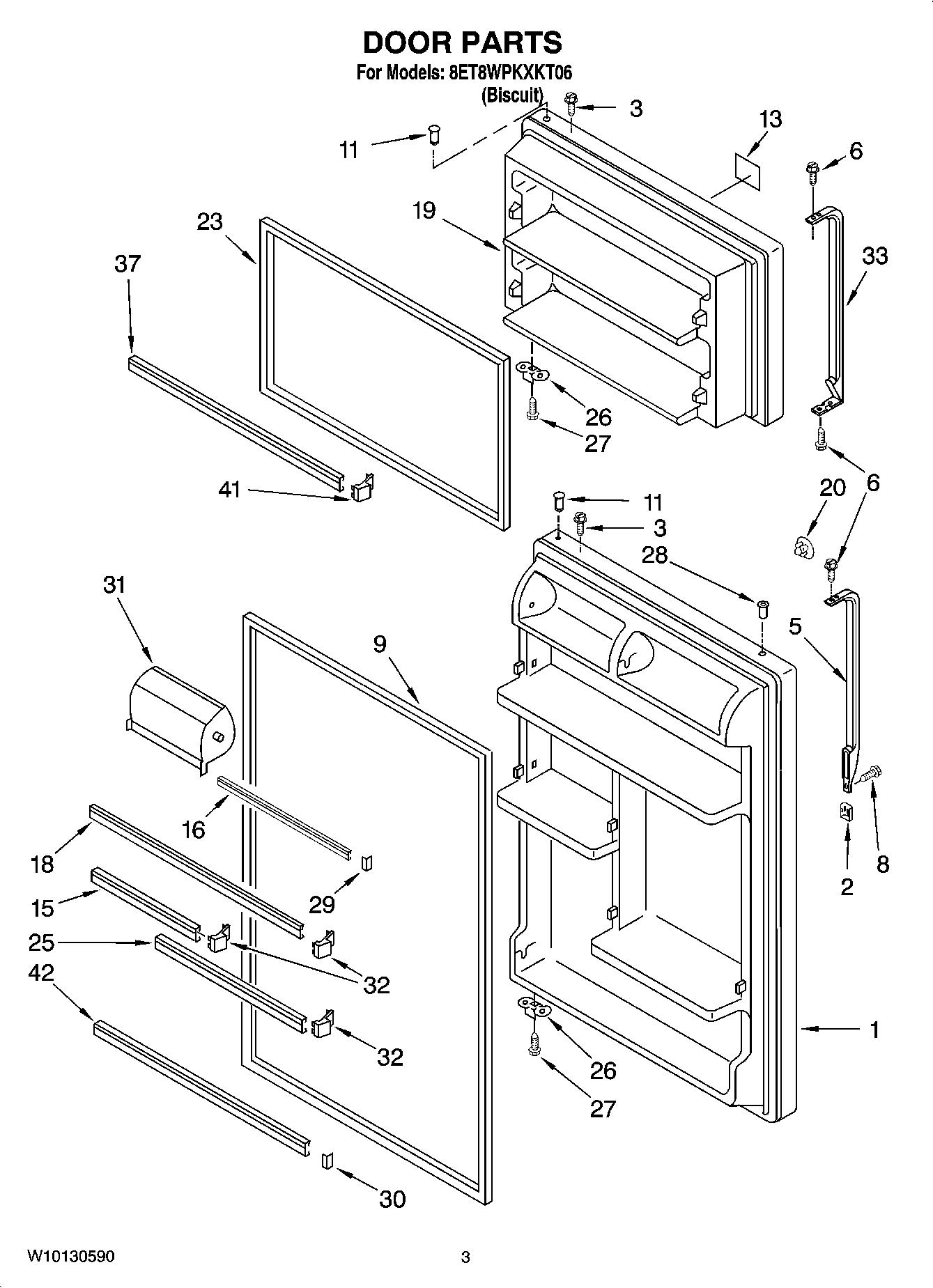

8ET8WPKXKT06 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (Biscuit)
2	Cover, Trim (Biscuit)
3	WP8281206 Whirlpool Refrigerator Screw
6	8534058 Whirlpool Refrigerator Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	WP2314293 Whirlpool Refrigerator Thimble
13	Nameplate (Biscuit)
15	Trim, Door
16	TRIM-DOOR
18	WPW10421484 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
20	WP2200936 Whirlpool Refrigerator Handle Plug
23	2159327 Whirlpool Refrigerator Door Gasket
25	WP2195943 Whirlpool Shelf Retainer Bar
26	W11745278 Whirlpool Bracket
27	WP681249 Whirlpool Screw Assembly
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	WP2195915 Whirlpool Door Shelf Support
33	4388949 Whirlpool Refrigerator Handle
37	Trim-Door (2)
41	ENDCAP
42	Trim, Door Shelf
