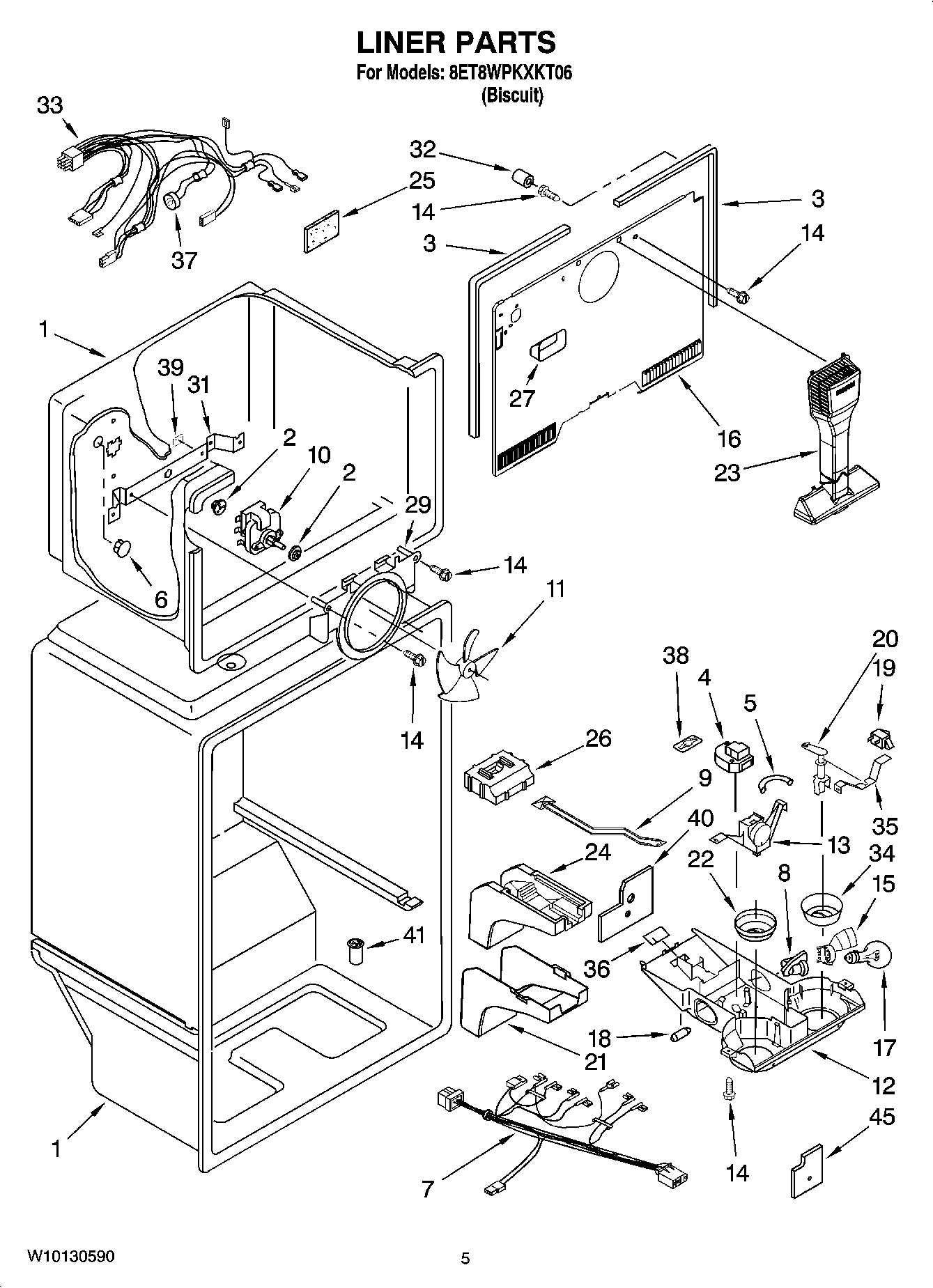

8ET8WPKXKT06 03 – LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP2264462 Whirlpool Refrigerator Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Defrost Timer
5	Thermostat Tube Barrier
6	WP941839 Whirlpool Refrigerator Button Plug
7	2310174 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	Thermostat Assy. (Includes Illus. 5 & 18)
14	WP489478 Whirlpool Refrigerator Screw
15	WP2175210 Whirlpool Refrigerator Shroud
16	Cover, Evaporator
17	4396822 Whirlpool Refrigerator Light Bulb
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	W10829461 Whirlpool Refrigerator Thermal Knob
23	WP2254354 Whirlpool Refrigerator Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	W11553819 Whirlpool Refrigerator Insulation
26	Air Diffuser, Top
27	Cover, Hole
29	BRACKET, FAN MOTOR
31	2254454 Whirlpool Refrigerator Bracket
32	WP487996 Whirlpool Refrigerator Cap Tube
33	Wire Assembly Freezer Compt. (Includes Illus. 25)
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2321800 Whirlpool Refrigerator Bimetallic Defrost
38	Clip, Defrost Timer
39	Retainer-Screw
40	Shield, heat
41	WP2210509 Whirlpool Refrigerator Tub Valve
45	Shield
