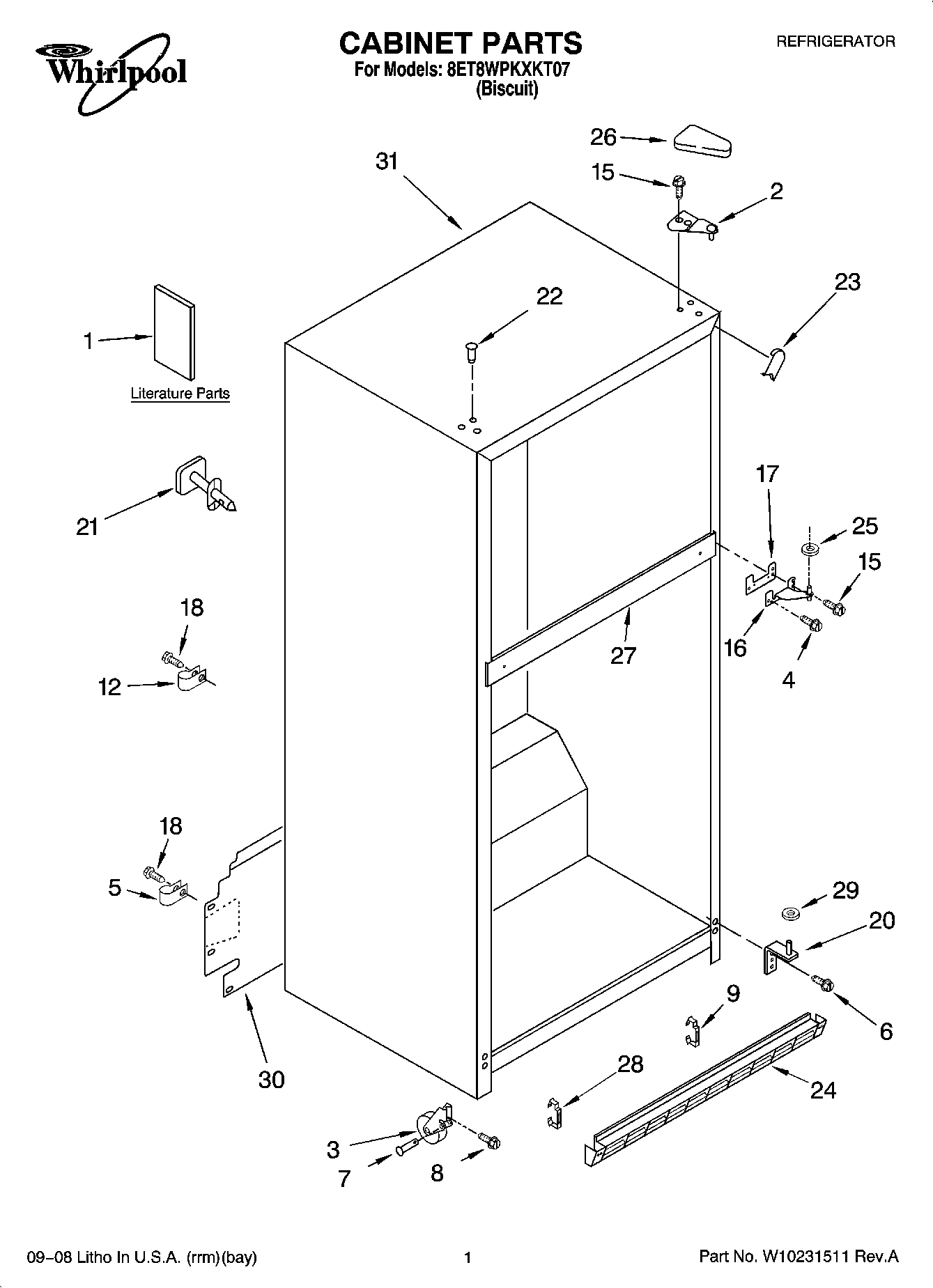

8ET8WPKXKT07 01 – CABINET PARTS

8ET8WPKXKT07 01 – CABINET PARTS

Written by

in

8ET8WPKXKT07 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide (English)
1Use & Care Guide (Chinese)
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP489442 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
8WP3400504 Whirlpool Refrigerator Screw
92254385 Whirlpool Refrigerator Clip
12489348 Whirlpool Refrigerator Tube Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183852 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21Fitting, Water Tube (Not Serviced)
22Hole Plug (6) (Biscuit)
23W10283958 Whirlpool Refrigerator Filler
24Grille
25WP487576 Whirlpool Washer
262213364 Whirlpool Refrigerator Cover
27Rail, Center (Not Serviced)
28CLIP, GRILLE
29WP489467 Whirlpool Hinge Shim
30Cover, Unit
31Cabinet, (Not A Serviceable Part)
