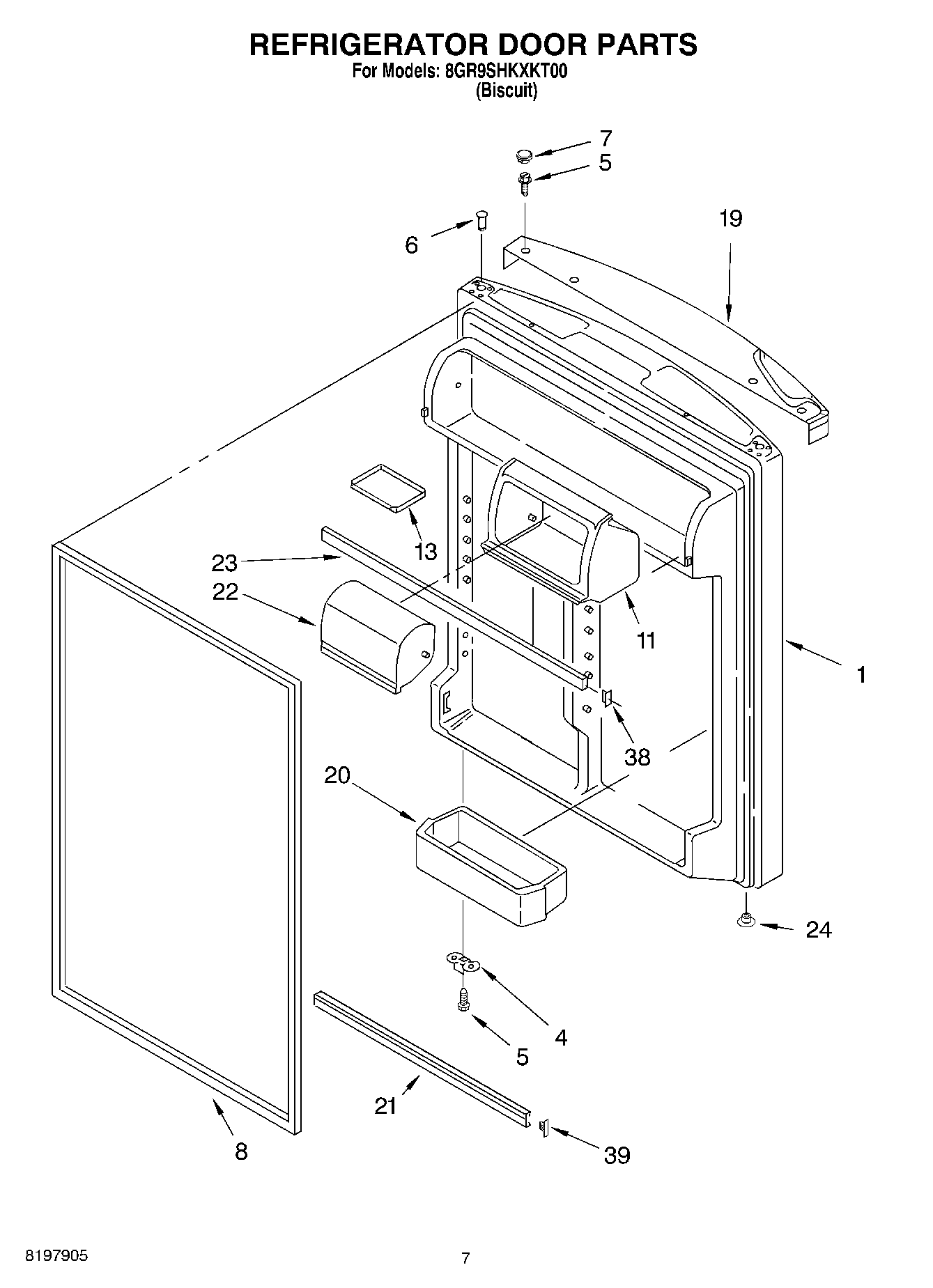

8GR9SHKXKT00 04 – REFRIGERATOR DOOR

8GR9SHKXKT00 04 – REFRIGERATOR DOOR

Written by

in

8GR9SHKXKT00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes 6 & 8) (Biscuit)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
6WP2183003 Whirlpool Thimble
7WP2212649 Whirlpool Refrigerator Button Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
11Housing Compartment
13Tray, Door
19Handle (Biscuit)
20Bin, Door (3)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24Hole Plug, Handle (Biscuit)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
