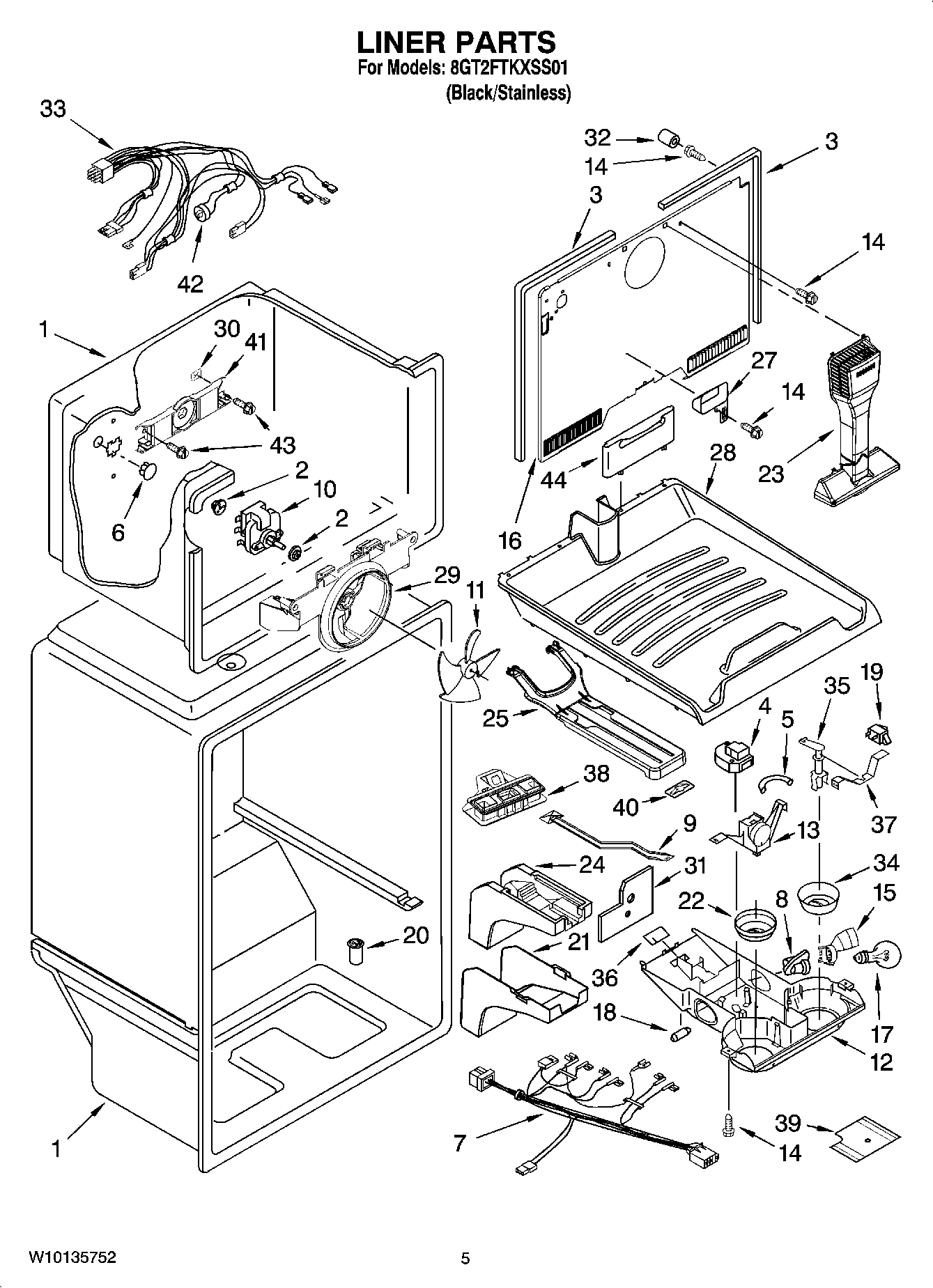

8GT2FTKXSS01 03 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4Defrost Timer
5Thermostat Tube Barrier
6WP941839 Whirlpool Refrigerator Button Plug
72310174 Whirlpool Refrigerator Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9Damper, Air
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13Thermostat Assy. (Includes Items 5, 18 & 36)
15WP2175210 Whirlpool Refrigerator Shroud
16Cover, Evaporator
174396822 Whirlpool Refrigerator Light Bulb
18Weight, Thermal
19W11384469 Whirlpool Door Switch
20WP2210509 Whirlpool Refrigerator Tub Valve
21Cover, Air Diffuser
22W10829461 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25Retainer, Freezer Floor
27Cover, Hole
28Pullout, Freezer Floor
29BRACKET, FAN MOTOR
30Retainer-Screw
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
332310099 Whirlpool Refrigerator Wire Harness
34Knob, Damper
35Post, Damper
36WP2205079 Whirlpool Refrigerator Seal
37Bracket, Damper Knob
38Air Separator Assembly
39Shield
40Clip, Defrost Timer
412254454 Whirlpool Refrigerator Bracket
42WP2321800 Whirlpool Refrigerator Bimetallic Defrost
43WP488163 Whirlpool Refrigerator Screw
44REAR FENCE PULL-OUT FREEZER FLOOR
