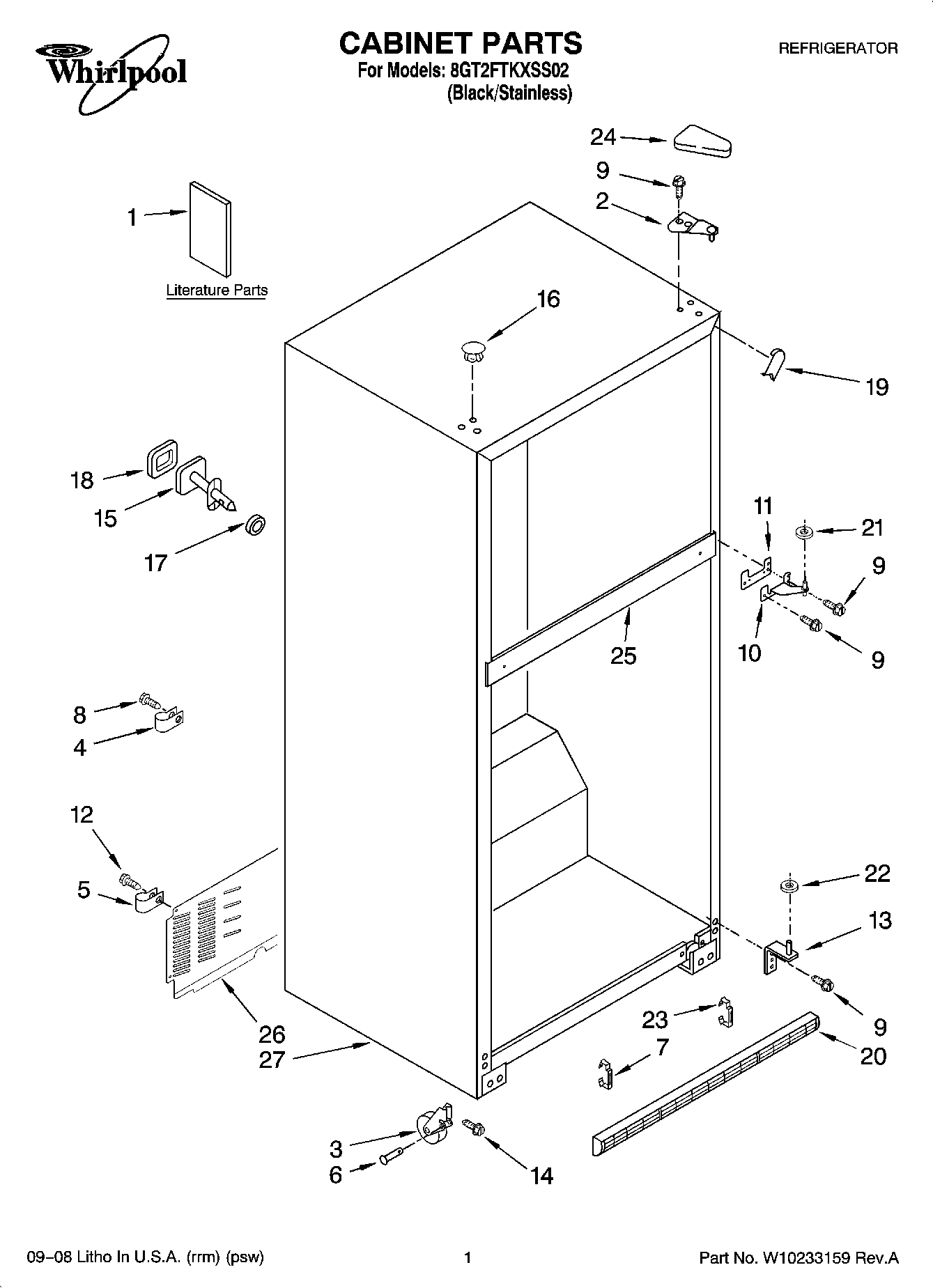

8GT2FTKXSS02 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide (Chinese)
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide (English)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	489348 Whirlpool Refrigerator Tube Clamp
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
8	WP489442 Whirlpool Refrigerator Screw
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183852 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	WP3400504 Whirlpool Refrigerator Screw
15	Fitting, Water Tube (Not Serviced)
16	WP2183998 Whirlpool Refrigerator Button Plug
17	Seal, Front (Not Serviced)
18	Seal, Rear (Not Serviced)
19	W11252732 Whirlpool Refrigerator Filler
20	GRILLE (INCLUDES ILLUS. 19) (BLACK)
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	CLIP, GRILLE
24	WP2213363 Whirlpool Refrigerator Cover
25	Rail, Center (Not Serviced)
26	Cover, Unit
27	Cabinet, (Not A Serviceable Part)
