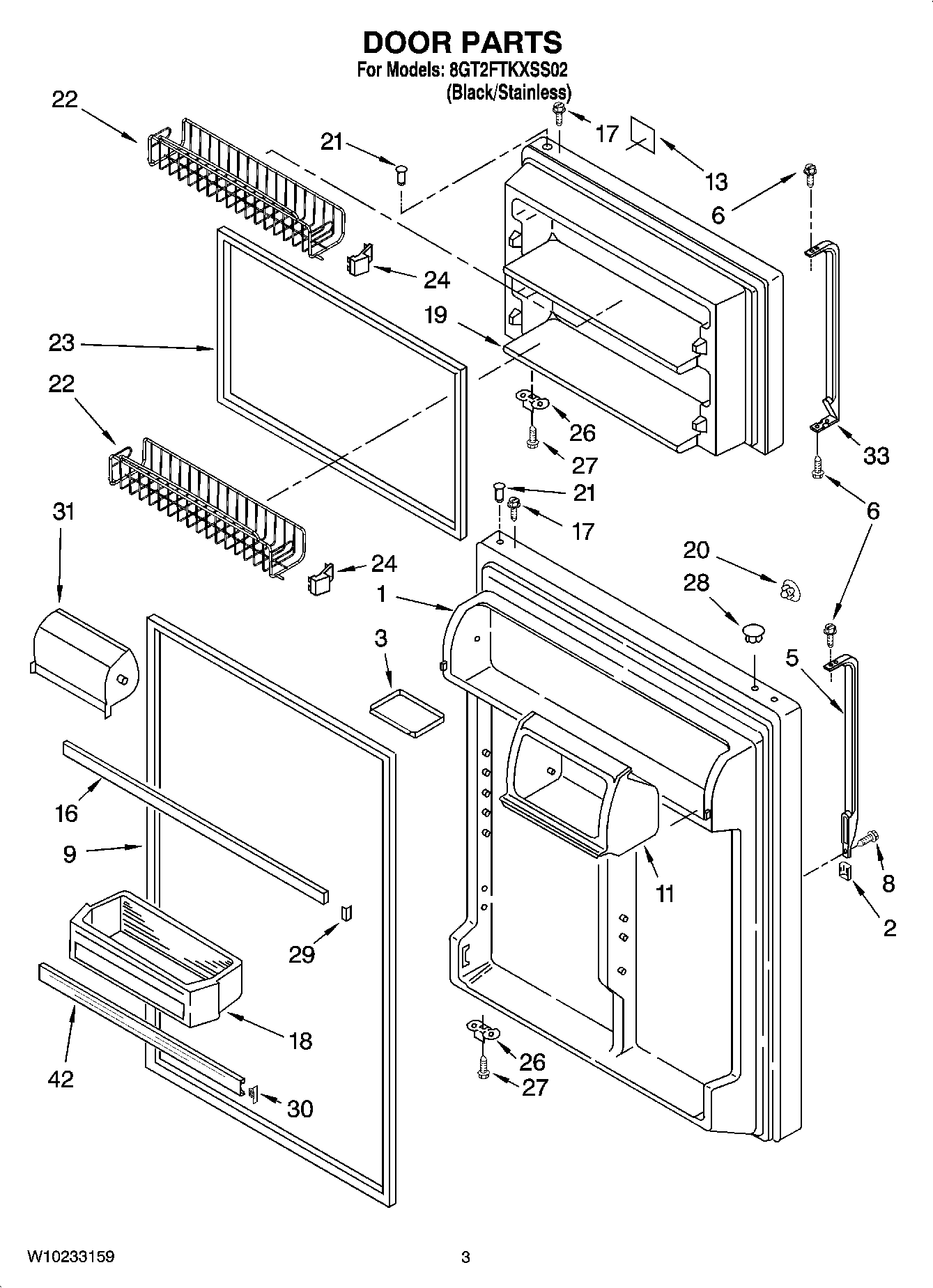

8GT2FTKXSS02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 8 & 12) (Stainless Steel)
2	Cover, Trim (Black)
3	Tray, Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2177311 Whirlpool Refrigerator Magnetic Door Gasket
11	Housing Compartment
13	Nameplate
16	Trim, Door Shelf
17	WP8281206 Whirlpool Refrigerator Screw
18	Bin, Door Shelf (3)
19	Freezer Door (Includes Illus. 3,8 & 12) (Stainless)
20	WP2189009 Whirlpool Refrigerator Handle Plug
21	WP2314293 Whirlpool Refrigerator Thimble
22	BASKET, DOOR (2)
23	2177310 Whirlpool Refrigerator Door Gasket
24	ENDCAP, BSKT.(R)
24	ENDCAP, BSKT.(L)
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212651 Whirlpool Refrigerator Button Plug
29	Endcap, Door Trim
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	DOOR-COMP
33	4388950 Whirlpool Refrigerator Handle
42	WPW10421486 Whirlpool Refrigerator Door Trim
