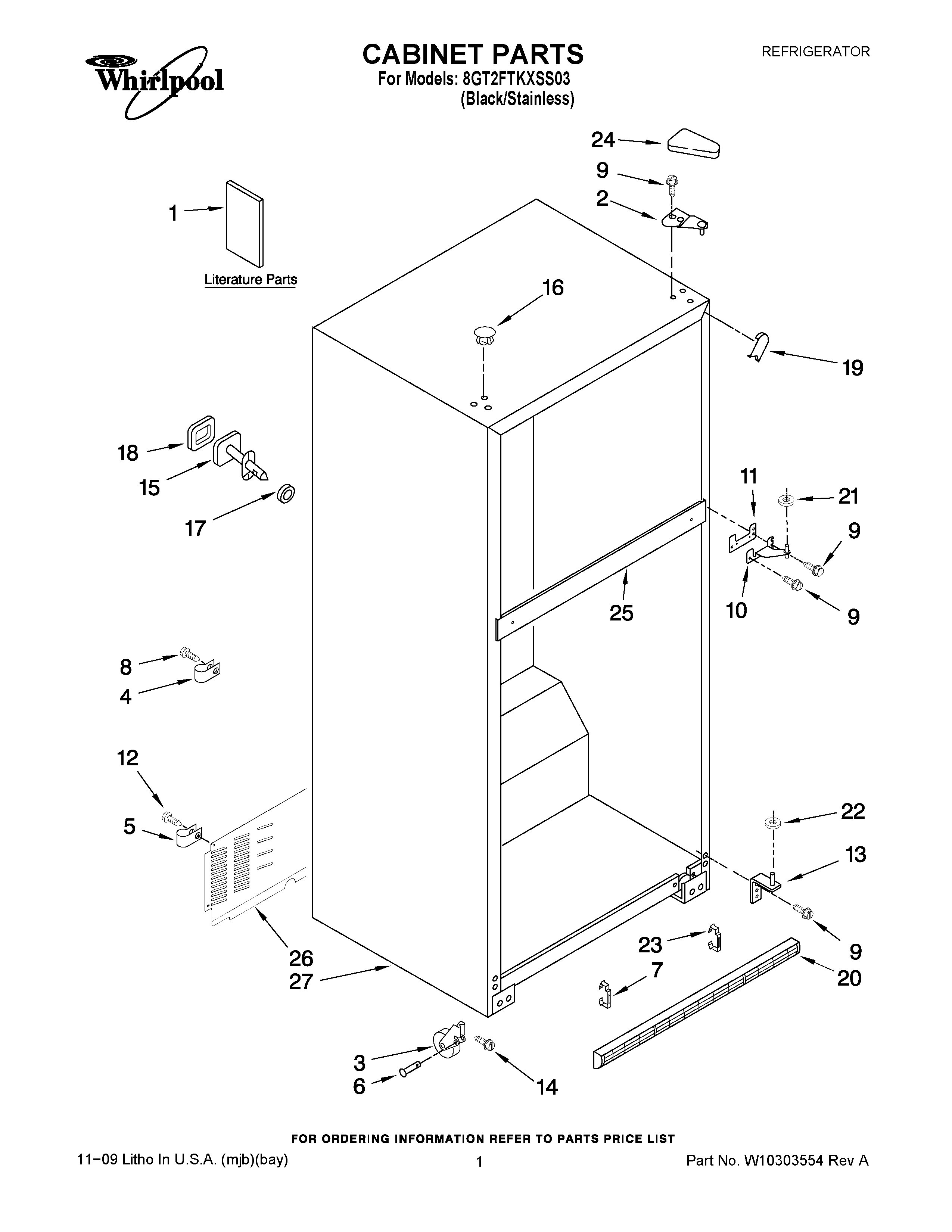

8GT2FTKXSS03 01 – CABINET PARTS

8GT2FTKXSS03 01 – CABINET PARTS

Written by

in

8GT2FTKXSS03 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide (English)
1Use & Care Guide (Chinese)
1Service & Wiring Sheet
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4489348 Whirlpool Refrigerator Tube Clamp
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
8WP489442 Whirlpool Refrigerator Screw
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14WP3400504 Whirlpool Refrigerator Screw
16WP2183998 Whirlpool Refrigerator Button Plug
19W11252732 Whirlpool Refrigerator Filler
20GRILLE (INCLUDES ILLUS. 19) (BLACK)
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
23CLIP, GRILLE
24WP2213363 Whirlpool Refrigerator Cover
26Cover, Unit
27CABINET (NOT A SERVICEABLE PART)
