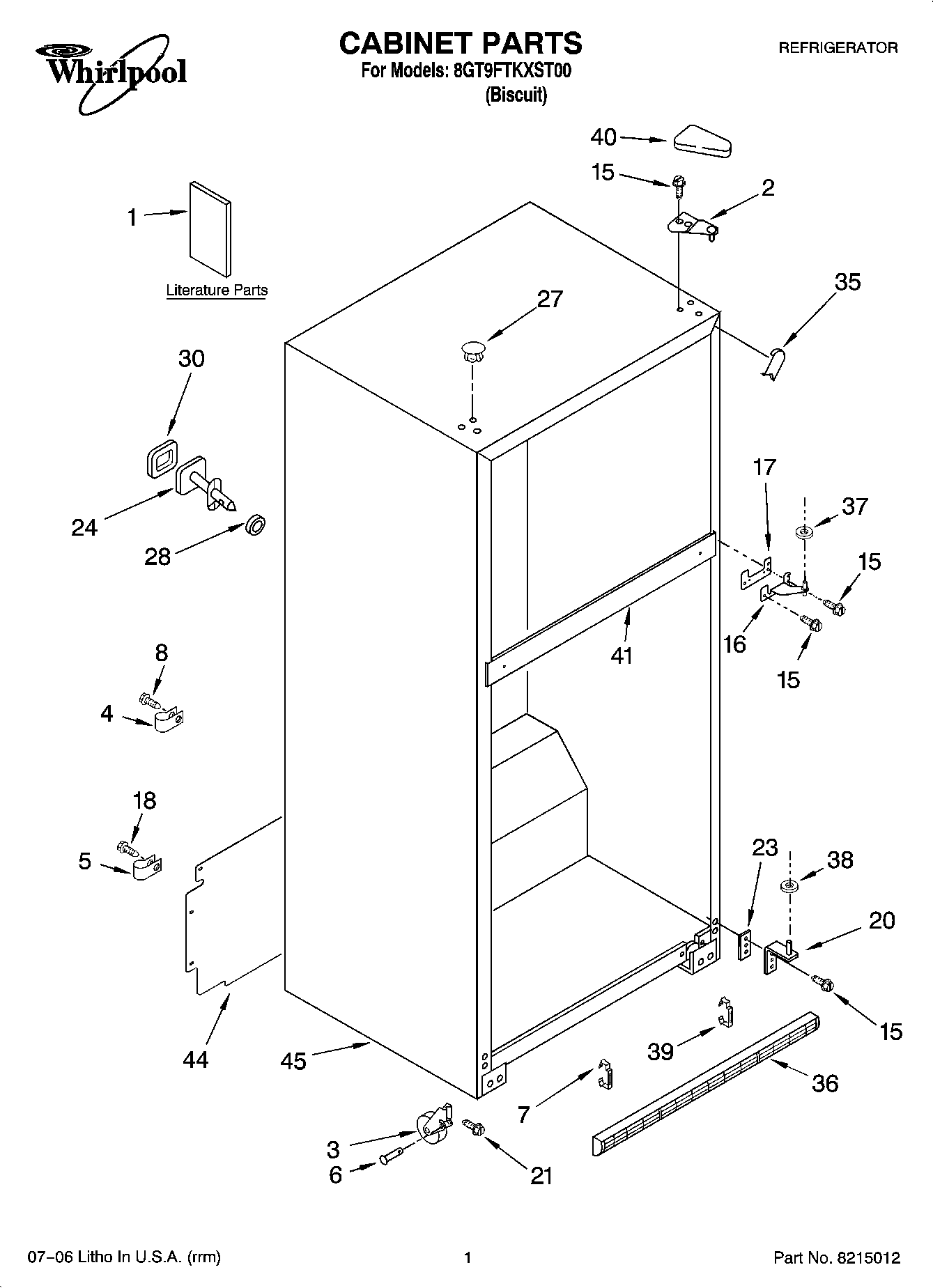

8GT9FTKXST00 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide (English)
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Use & Care Guide (Chinese)
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4489348 Whirlpool Refrigerator Tube Clamp
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
7CLIP, GRILLE
8WP489442 Whirlpool Refrigerator Screw
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21WP3400504 Whirlpool Refrigerator Screw
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35W10283958 Whirlpool Refrigerator Filler
36Grille
37WP489467 Whirlpool Hinge Shim
38WP487576 Whirlpool Washer
392254385 Whirlpool Refrigerator Clip
402213364 Whirlpool Refrigerator Cover
41Rail, Center (Not Serviced)
44WP2189475 Whirlpool Refrigerator Unit Cover
45Cabinet, (Not A Serviceable Part)
