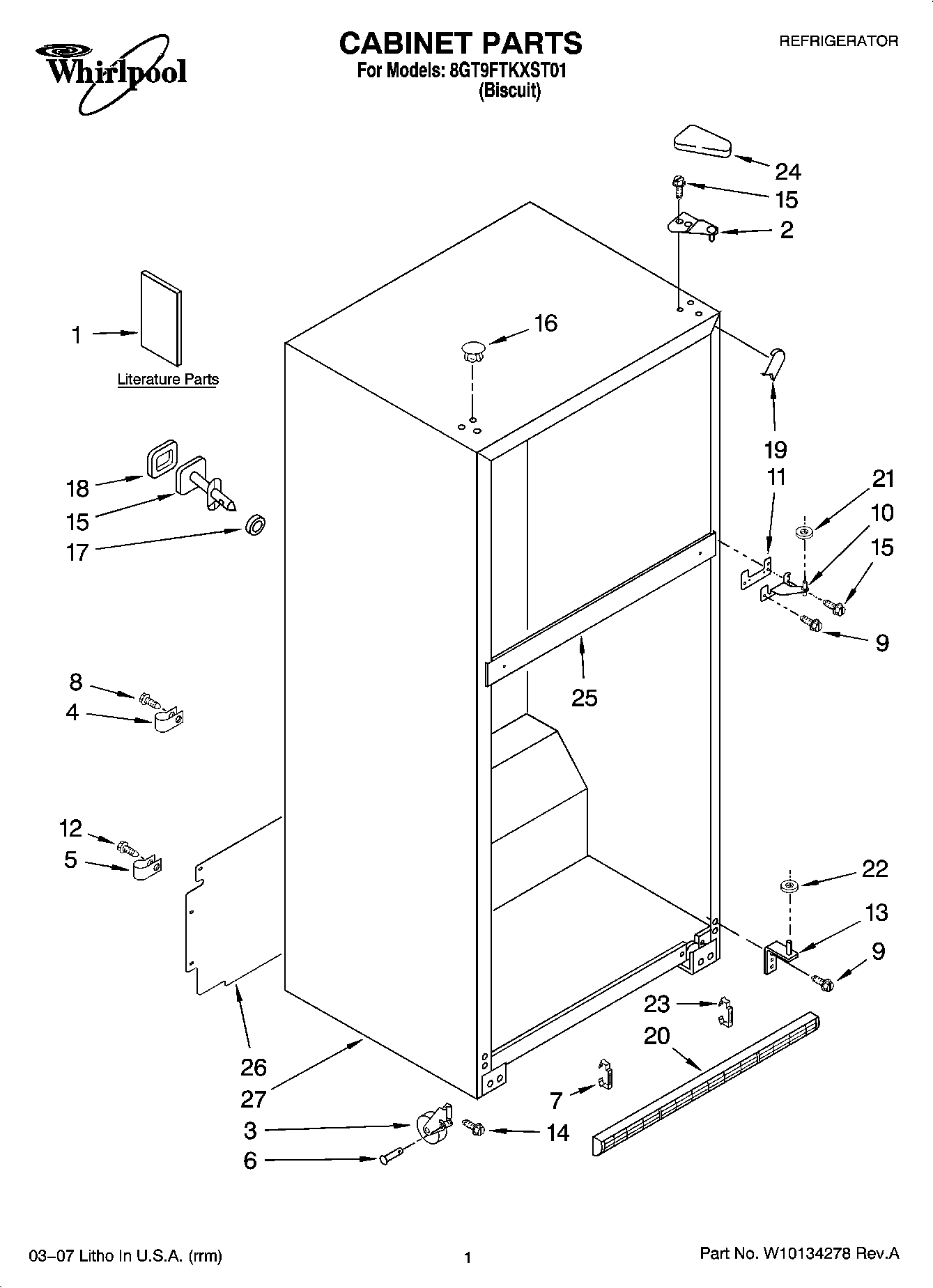

8GT9FTKXST01 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Use & Care Guide (English)
1	Service & Wiring Sheet
1	Use & Care Guide (Chinese)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	489348 Whirlpool Refrigerator Tube Clamp
5	WP488366 Whirlpool Refrigerator Clamp
6	W11594405 Whirlpool Axle
7	CLIP, GRILLE
8	WP489442 Whirlpool Refrigerator Screw
9	WP489497 Whirlpool Screw
10	WP2254618 Whirlpool Center Door Hinge
11	WP2183854 Whirlpool Refrigerator Shim
12	WP489464 Whirlpool Refrigerator Screw
13	WP2254473 Whirlpool Refrigerator Door Hinge
14	WP3400504 Whirlpool Refrigerator Screw
15	Fitting, Water Tube (Not Serviced)
16	Hole Plug (6) (Biscuit)
17	Seal, Front (Not Serviced)
18	Seal, Rear (Not Serviced)
19	W10283958 Whirlpool Refrigerator Filler
20	Grille
21	WP489467 Whirlpool Hinge Shim
22	WP487576 Whirlpool Washer
23	2254385 Whirlpool Refrigerator Clip
24	2213364 Whirlpool Refrigerator Cover
25	Rail, Center (Not Serviced)
26	Cover, Unit
27	Cabinet, (Not A Serviceable Part)
