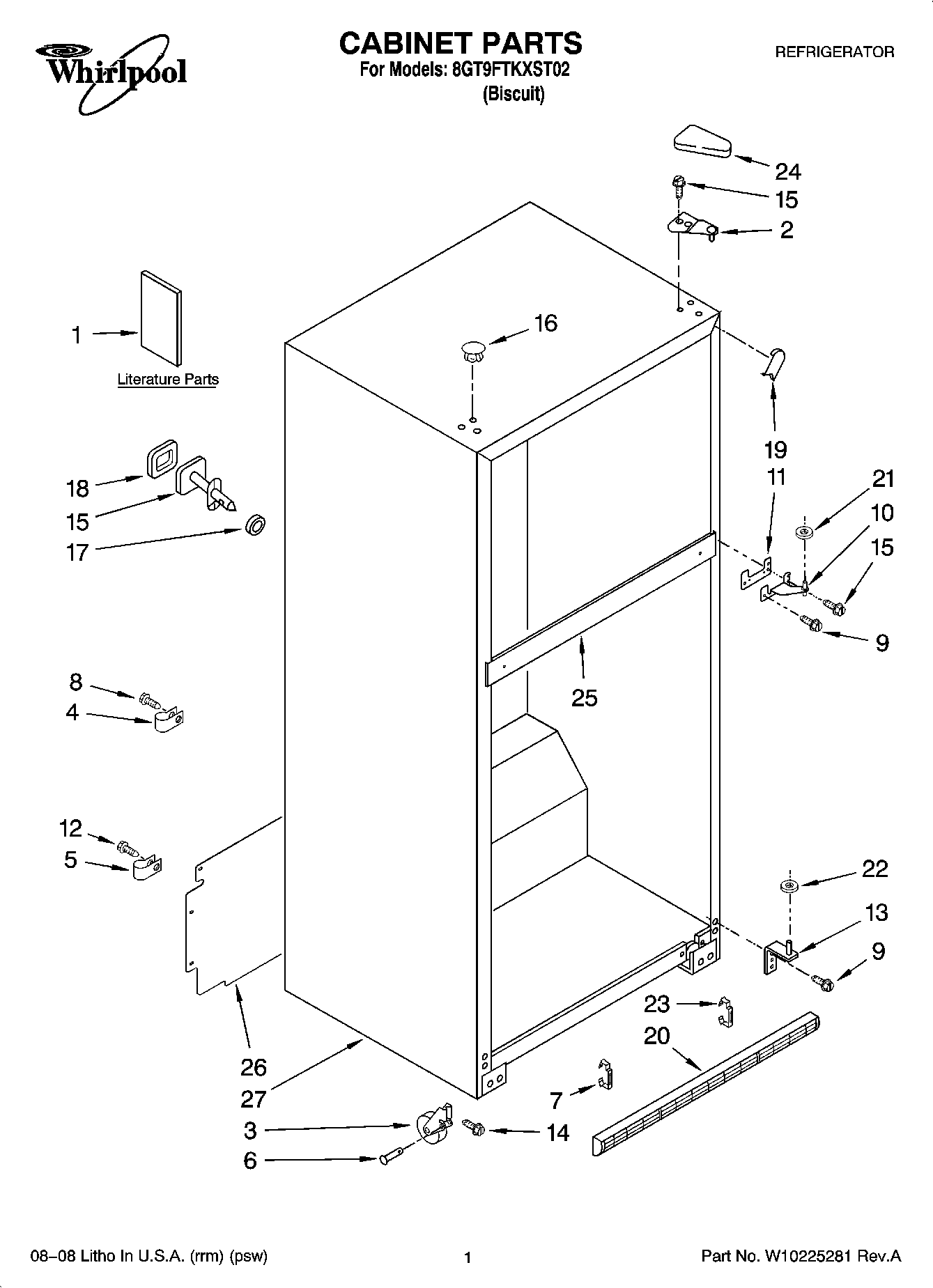

8GT9FTKXST02 01 – CABINET PARTS

Products

PositionProduct
1DO-IT-YOURSELF MANUAL, REF./ FZR.
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide (English)
1Use & Care Guide (Chinese)
1Service & Wiring Sheet
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4489348 Whirlpool Refrigerator Tube Clamp
5WP488366 Whirlpool Refrigerator Clamp
6W11594405 Whirlpool Axle
7CLIP, GRILLE
8WP489442 Whirlpool Refrigerator Screw
9WP489497 Whirlpool Screw
10WP2254618 Whirlpool Center Door Hinge
11WP2183852 Whirlpool Refrigerator Shim
12WP489464 Whirlpool Refrigerator Screw
13WP2254473 Whirlpool Refrigerator Door Hinge
14WP3400504 Whirlpool Refrigerator Screw
15Fitting, Water Tube (Not Serviced)
16Hole Plug (6) (Biscuit)
17Seal, Front (Not Serviced)
18Seal, Rear (Not Serviced)
19W10283958 Whirlpool Refrigerator Filler
20Grille
21WP489467 Whirlpool Hinge Shim
22WP487576 Whirlpool Washer
232254385 Whirlpool Refrigerator Clip
242213364 Whirlpool Refrigerator Cover
25Rail, Center (Not Serviced)
26Cover, Unit
27Cabinet, (Not A Serviceable Part)
