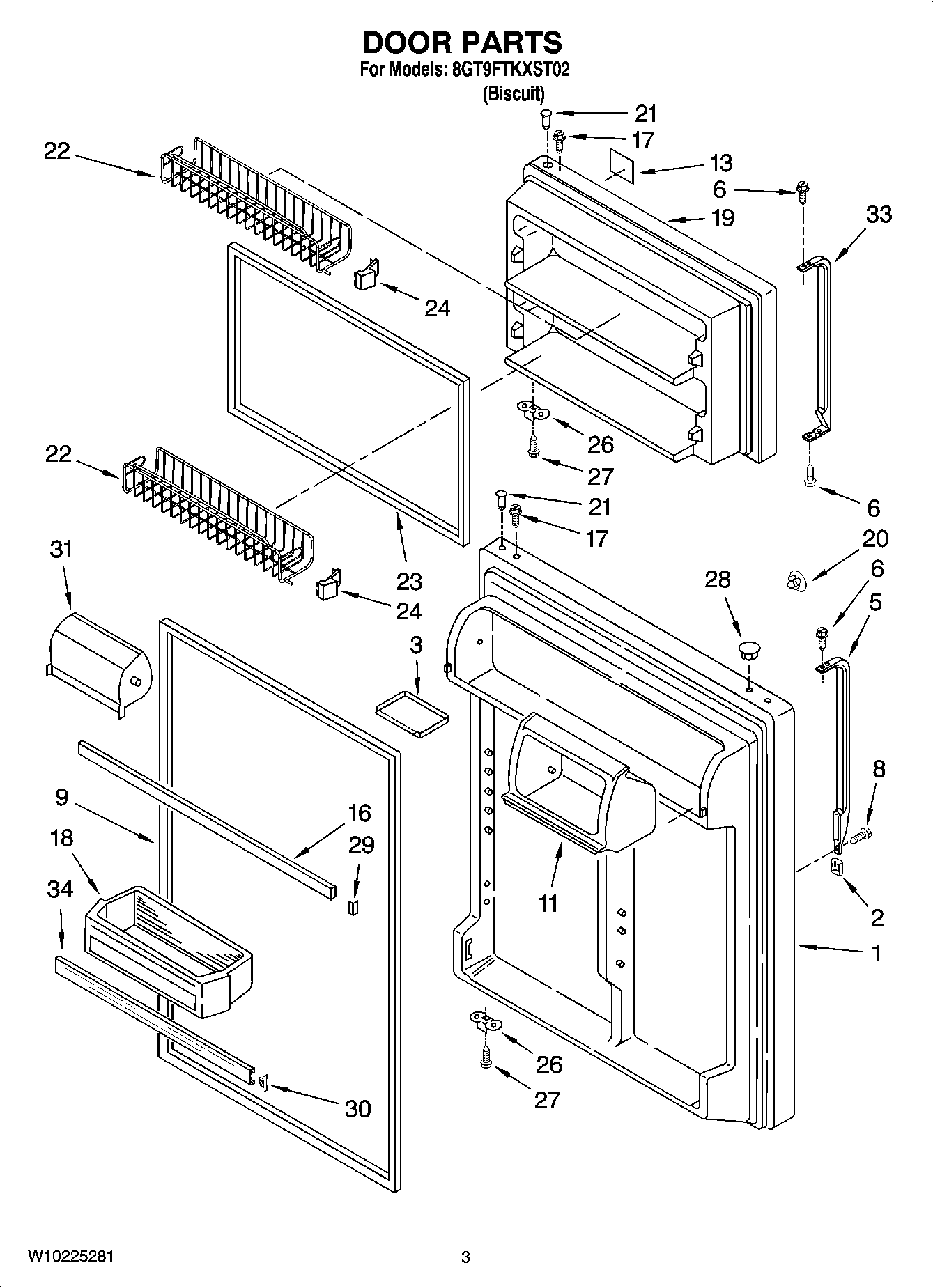

8GT9FTKXST02 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.21) (Biscuit)
2	Cover, Trim (Biscuit)
3	Tray, Door
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
11	Housing Compartment
13	Nameplate
16	WP2159312 Whirlpool Refrigerator Door Trim
17	WP8281206 Whirlpool Refrigerator Screw
18	Bin, Door Shelf (3)
19	Freezer Door Panel (Biscuit)
20	WP2200936 Whirlpool Refrigerator Handle Plug
21	WP2314293 Whirlpool Refrigerator Thimble
22	Door Basket- FC
23	2159327 Whirlpool Refrigerator Door Gasket
24	ENDCAP, BSKT.(R)
24	ENDCAP, BSKT.(L)
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
29	Endcap, Door Trim
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	DOOR-COMP
33	4388949 Whirlpool Refrigerator Handle
34	WPW10421484 Whirlpool Refrigerator Door Trim
