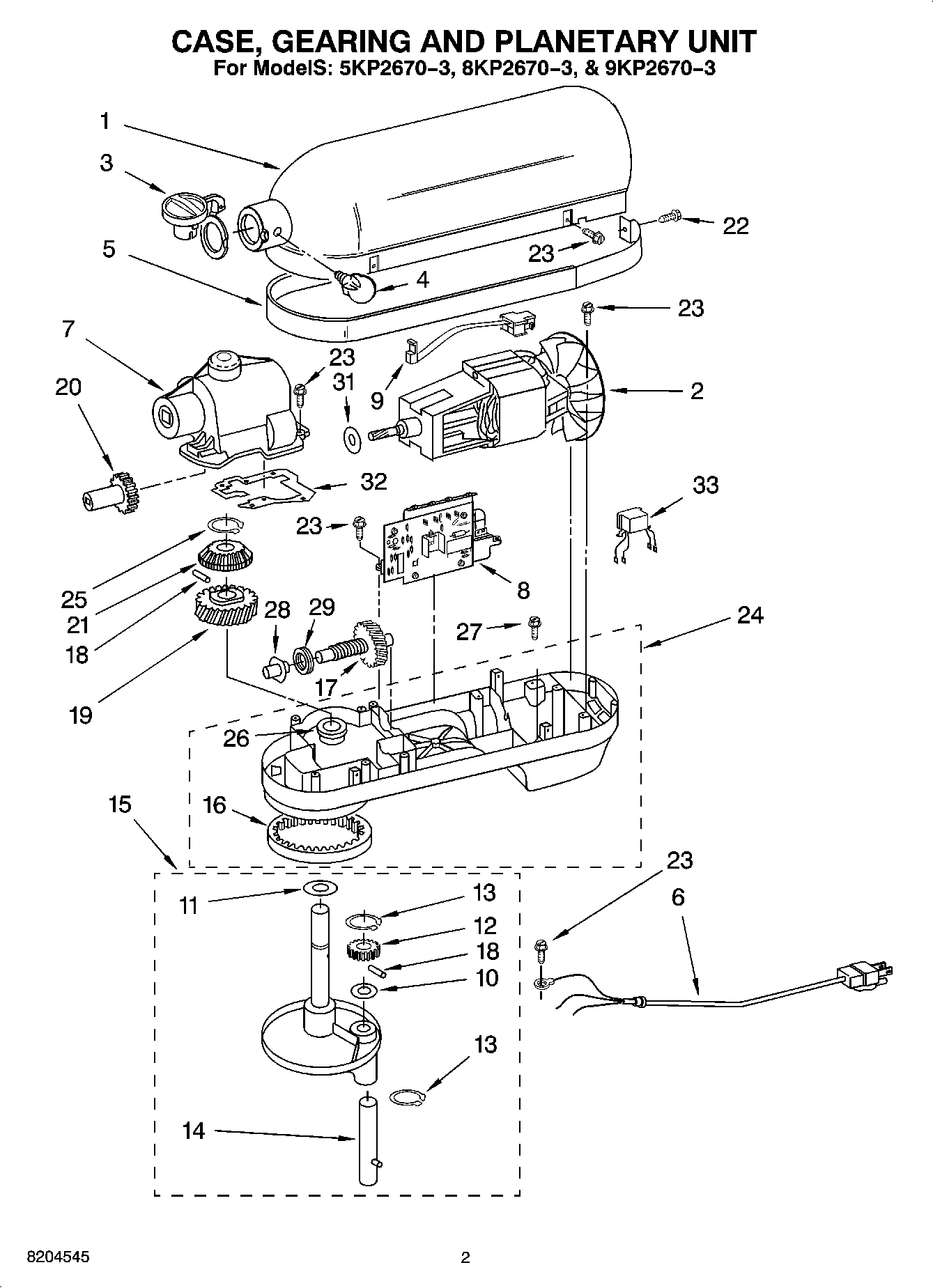

8KP2670-3 01 – CASE, GEARING AND PLANETARY UNIT

Products

Position	Product
1	9703311 Whirlpool Housing Assembly
2	WPW10247536 Whirlpool Motor
2	Motor (10 Tooth) (International)
2	Motor (10 Tooth) (Taiwan)
2	Motor (10 Tooth) (Japan)
2	Motor (10 Tooth) (Japan Motor (8 Tooth) (Serial Numbers WL18 - WL45))
2	WP9706549 Whirlpool Motor
3	WP9703315 Whirlpool Hub Cap
4	WP9709194 Whirlpool Black Thumb Screw
5	Band, Trim
5	Band, Trim (Japan)
6	Power Cord (Australia)
6	Power Cord (S/N WL18 - WM25)
6	Power Cord (S/N WL18 - WP18)
6	Power Cord (S/N WL18 - WL37)
6	Power Cord (International)
6	Power Cord (Taiwan)
6	Power Cord (Japan)
7	8212396 Whirlpool Housing
8	Control Assembly
9	WP9706648 Whirlpool Speed Control
10	WP9706090 Whirlpool Washer
11	W11084660 Whirlpool Washer
12	W11133646 Whirlpool Gear
13	WP9703438 Whirlpool Snap Retaining Ring
14	Agitator Shaft
15	WP9708172 Whirlpool Planetary Assembly
16	W11181966 Whirlpool Gear
17	WP9709231 Whirlpool Gear Assembly
18	WP9707223 Whirlpool Dowel Pin
19	GEAR
21	W11192795 Whirlpool Gear
22	W10853069 Whirlpool Screw
23	WP3400814 Whirlpool Screw
24	WP9706047 Whirlpool Gearcase
25	WP16897 Whirlpool Bearing
25	WP9703680 Whirlpool Retainer Ring
27	W10913677 Whirlpool Screw
28	WPW10170080 Whirlpool Bearing Assembly
28	WPW10170081 Whirlpool Bearing
29	WP9703445 Whirlpool Bearing Kit Thrust
31	WP9706247 Whirlpool Seal
33	9706073 Whirlpool Filter
