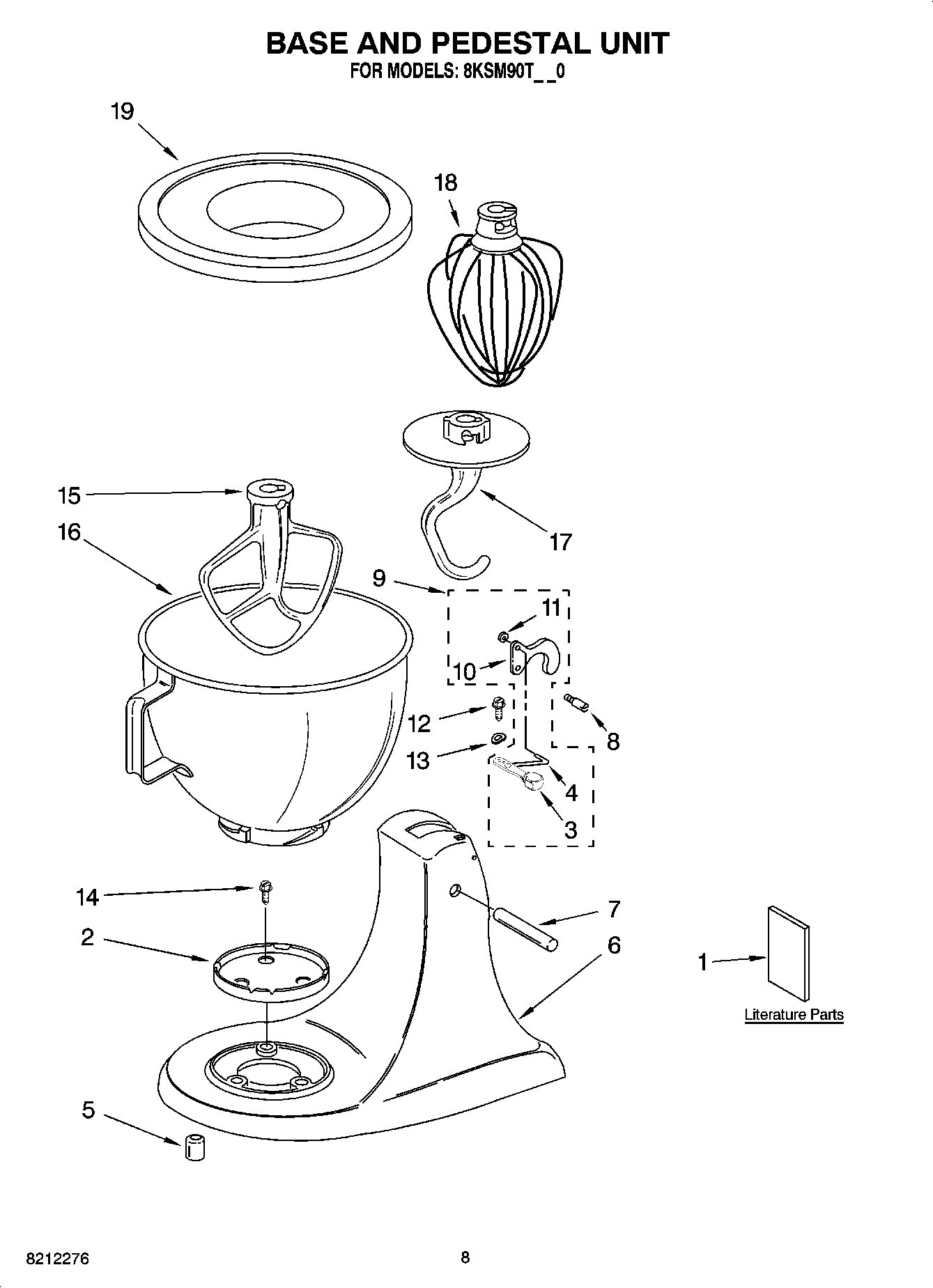

8KSM90TWH0 04 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	W10802058 Whirlpool Mixer Bowl
	W11312468 Whirlpool Pour Shelf
	Speed Disc (Service Tool)
	Grain Mill, KGMA
	Bowl Cover, Plastic Non-Sealing
	Bowl,
	WPL 3180617
	MAKER, ICE CREAM (KICA0WH)
	Food Tray (FT)
	W11200218 Whirlpool Grease Filter
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	SAUSAGE STUFFER KIT (SSA)
	PASTA MAKER PLATES (SNPA)
1	Use & Care Guide
1	Repair Parts List
2	WPW10191926 Whirlpool Cap Screw
3	WP9709267 Whirlpool Latch Lever
4	W11232016 Whirlpool Latch Link
5	Foot, Base
6	Pedestal
7	WP16910 Whirlpool Dowel Pin
8	103993 Whirlpool Screw
9	WP3184200 Whirlpool Latch Lever
10	W11246352 Whirlpool Latch Mechanism
11	W11218705 Whirlpool Washer Assembly
12	WP110679 Whirlpool Screw
13	WP116241 Whirlpool Washer
14	SCREW
15	WPW10672617 Whirlpool Stand Mixer Flat Beater
17	WPW10674618 Whirlpool Dough Hook
18	WP9704329 Whirlpool Wire Whip
19	Cover, Bowl
