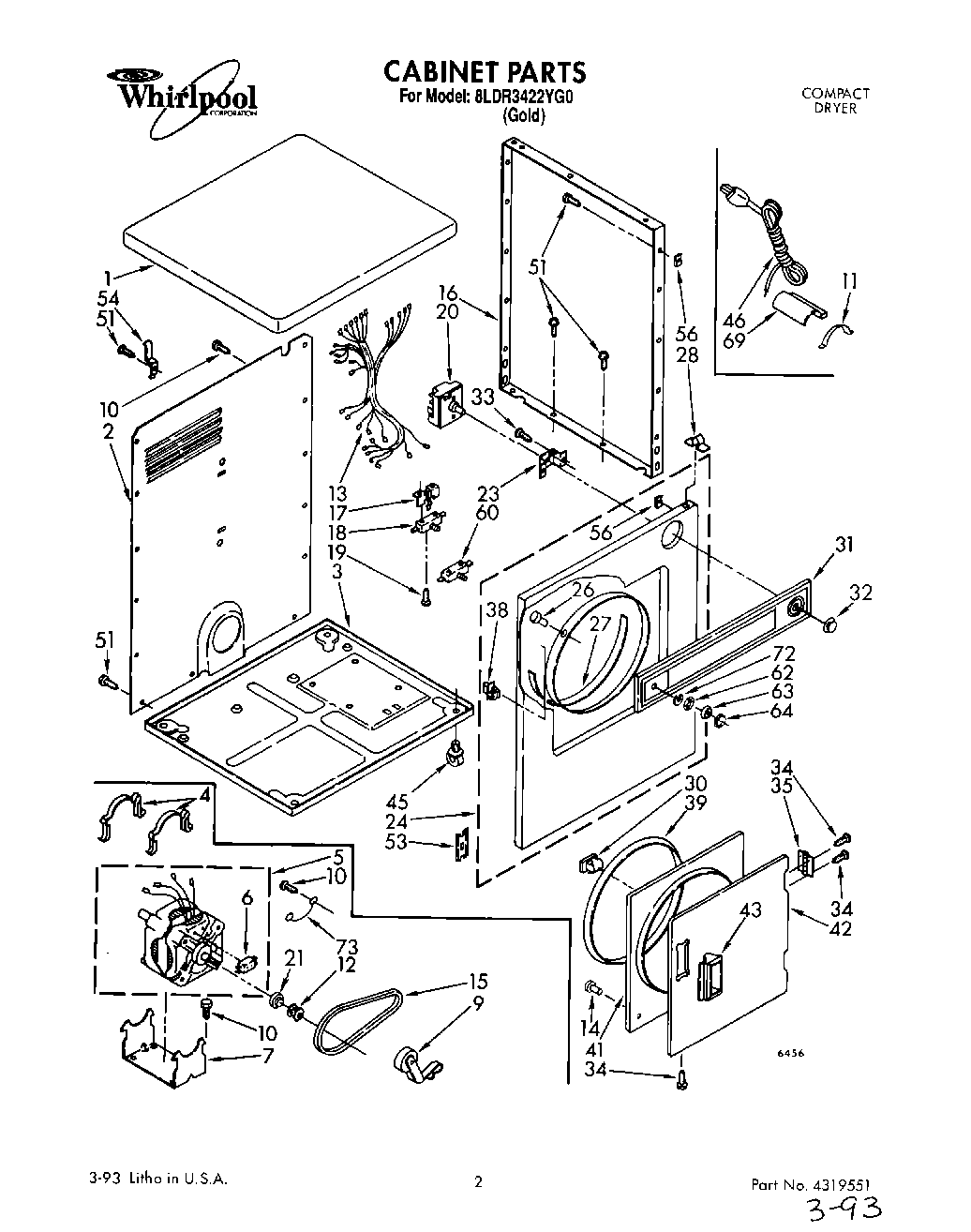

8LDR3422YG0 01 – SECTION

Products

Position	Product
1	Top (Gold)
2	Panel, Rear (Gold)
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
6	279827 Whirlpool Dryer Drive Motor
7	696541 Whirlpool Base
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
10	WP3390631 Whirlpool Screw
11	8528351 Whirlpool Clip
12	W10837625 Whirlpool Dryer Motor Pulley
13	Harness, Wiring
14	238614 Whirlpool Bumper Hinge
15	3394652 Whirlpool Drum Belt
16	Panel, Side (Gold)
17	WP691581 Whirlpool Actuator
18	W10820036 Whirlpool Door Switch Kit
19	WP98129 Whirlpool Screw
20	Timer, 60 Hz.
21	WP3393657 Whirlpool Belt Retainer
23	348171 Whirlpool Bracket
24	Front Panel Assembly (xGold)
26	279220 Whirlpool Clip
27	279264 Whirlpool Bearing and Seal Kit
28	WP345670 Whirlpool Lock
30	WP3389441 Whirlpool Door Catch
31	Panel, Control
32	Timer Knob & Skirt Assembly
33	303776 Whirlpool Dishwasher Screw
34	WP694091 Whirlpool Screw
35	WP348023 Whirlpool Hinge
38	279570 Whirlpool Dryer Door Latch Kit
39	W11613302 Whirlpool Door Seal
41	Door, Rear
42	Door, Front (Gold)
43	Handle, Door (Gold)
45	279127 Whirlpool Caster
46	Cord, Power
51	SCREW
53	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
54	345790 Whirlpool Bracket
56	WP98234 Whirlpool Nut
60	Switch, Push-To-Start
62	Nut, Hex
63	Ring, Trim
64	Nut, Knurled
69	686770 Whirlpool Support Bracket
72	Lockwasher
73	Wire, Ground
