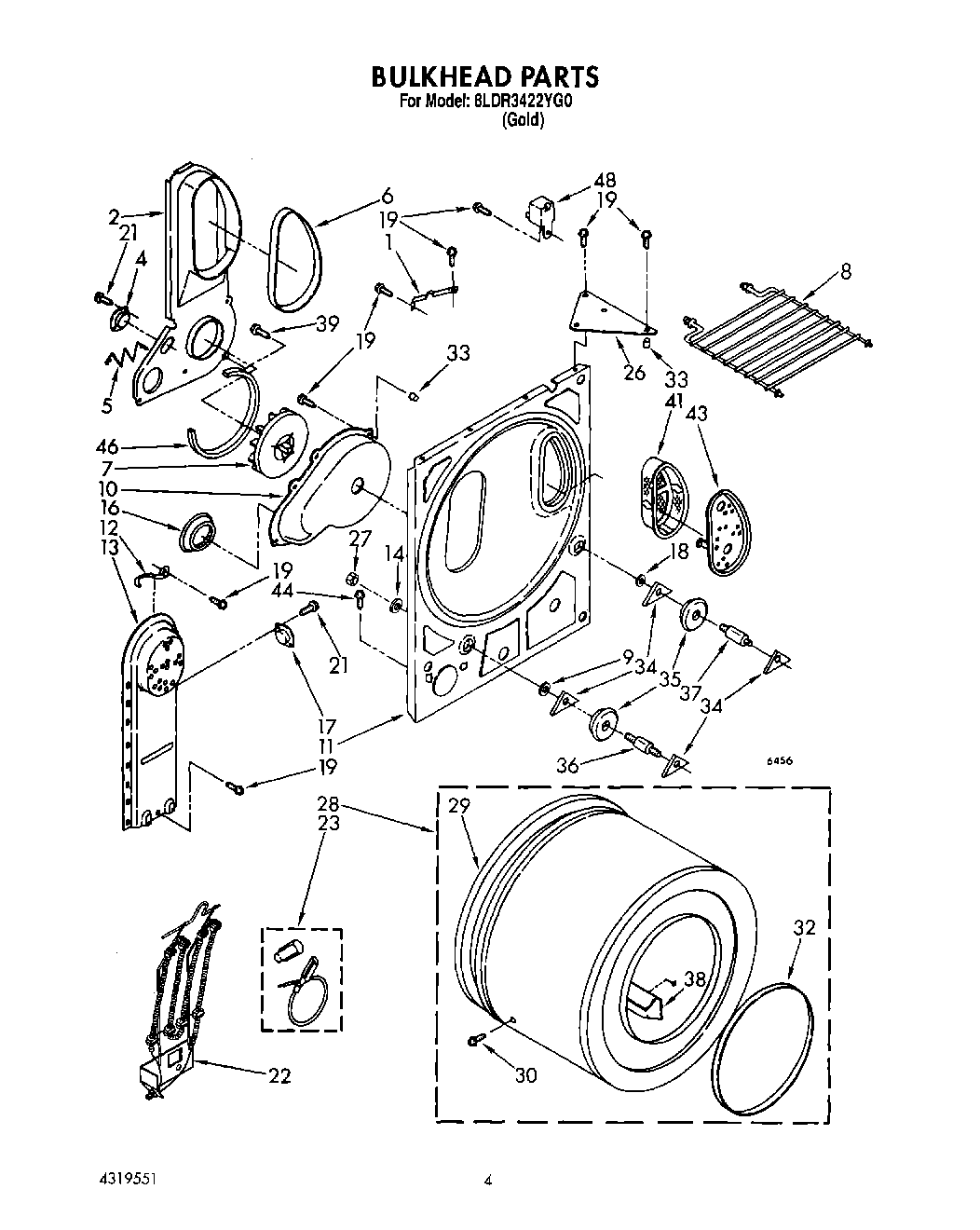

8LDR3422YG0 02 – SECTION

8LDR3422YG0 02 – SECTION

Written by

in

8LDR3422YG0 02 – SECTION

Products

PositionProduct
350938 Whirlpool Spray Gun
Literature Parts (Label, Operating Instructions)
Guide, Dryer
WPL LIT9830485
WPL LIT3390354
List, Service Parts
Diagram, Wiring
Golden Harvest (Uncut)
Golden Harvest
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
1345396 Whirlpool Clip
2Air Duct Assembly
3WP90767 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
5345965 Whirlpool Guard
6SEAL
7WP696426 Whirlpool Wheel
8Rack, Dry
9WP3388703 Whirlpool Washer
10696419 Whirlpool Housing
11279848 Whirlpool Bulkhead
12279771 Whirlpool Clip
13Box, Heater
14Washer, Support
16W11233063 Whirlpool Shield Assembly
17(Alt.)
17Thermostat, 180~F (82~C)
17(Alt.)
18Washer, Support
19SCREW
21WP965173 Whirlpool Dishwasher Screw
22Heater Element
23279457 Whirlpool Dryer Heating Element Wide Spade Connection
26Gusset (2)
27WP3359452 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
32WP3394508 Whirlpool Bearing Ring
33W10491983 Whirlpool Tine Tip
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
38685207 Whirlpool Dryer Baffle
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
44WP3390631 Whirlpool Screw
46Seal, Air Duct
48WP694419 Whirlpool Buzzer Adjuster
