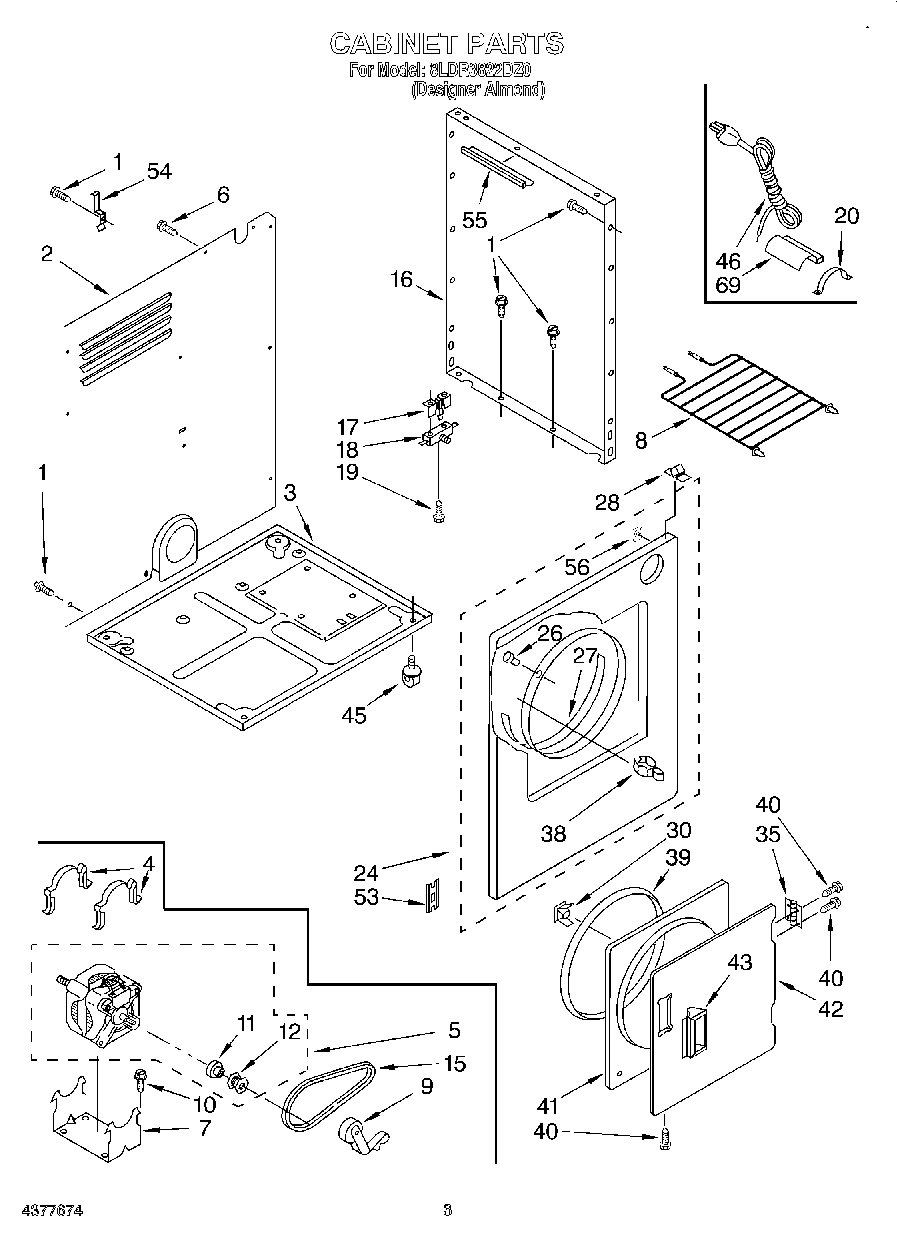

8LDR3822DZ0 02 – SECTION

8LDR3822DZ0 02 – SECTION

Written by

in

8LDR3822DZ0 02 – SECTION

Products

PositionProduct
1SCREW
2Panel, Rear (Almond)
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
5279827 Whirlpool Dryer Drive Motor
6W10850756 Whirlpool Screw
7696541 Whirlpool Base
8Dry Rack Assembly
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP3390631 Whirlpool Screw
11WP3393657 Whirlpool Belt Retainer
128066051 Whirlpool Motor Pulley
153394652 Whirlpool Drum Belt
16Panel, Side (2) (Almond)
17WP691581 Whirlpool Actuator
18W10820036 Whirlpool Door Switch Kit
19WP98129 Whirlpool Screw
208528351 Whirlpool Clip
24Front Panel (Almond)
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
30WP3389441 Whirlpool Door Catch
35WP348023 Whirlpool Hinge
38279570 Whirlpool Dryer Door Latch Kit
39W11613302 Whirlpool Door Seal
40WP694091 Whirlpool Screw
41280077 Whirlpool Door
42Door, Front (Almond)
43Handle, Door (Almond)
45279127 Whirlpool Caster
46Cord, Power
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
54345790 Whirlpool Bracket
55Protector, Support (11 1/2 “)
56WP98234 Whirlpool Nut
69686770 Whirlpool Support Bracket
