  • 8LGR5636FQ0 03 – BULKHEAD

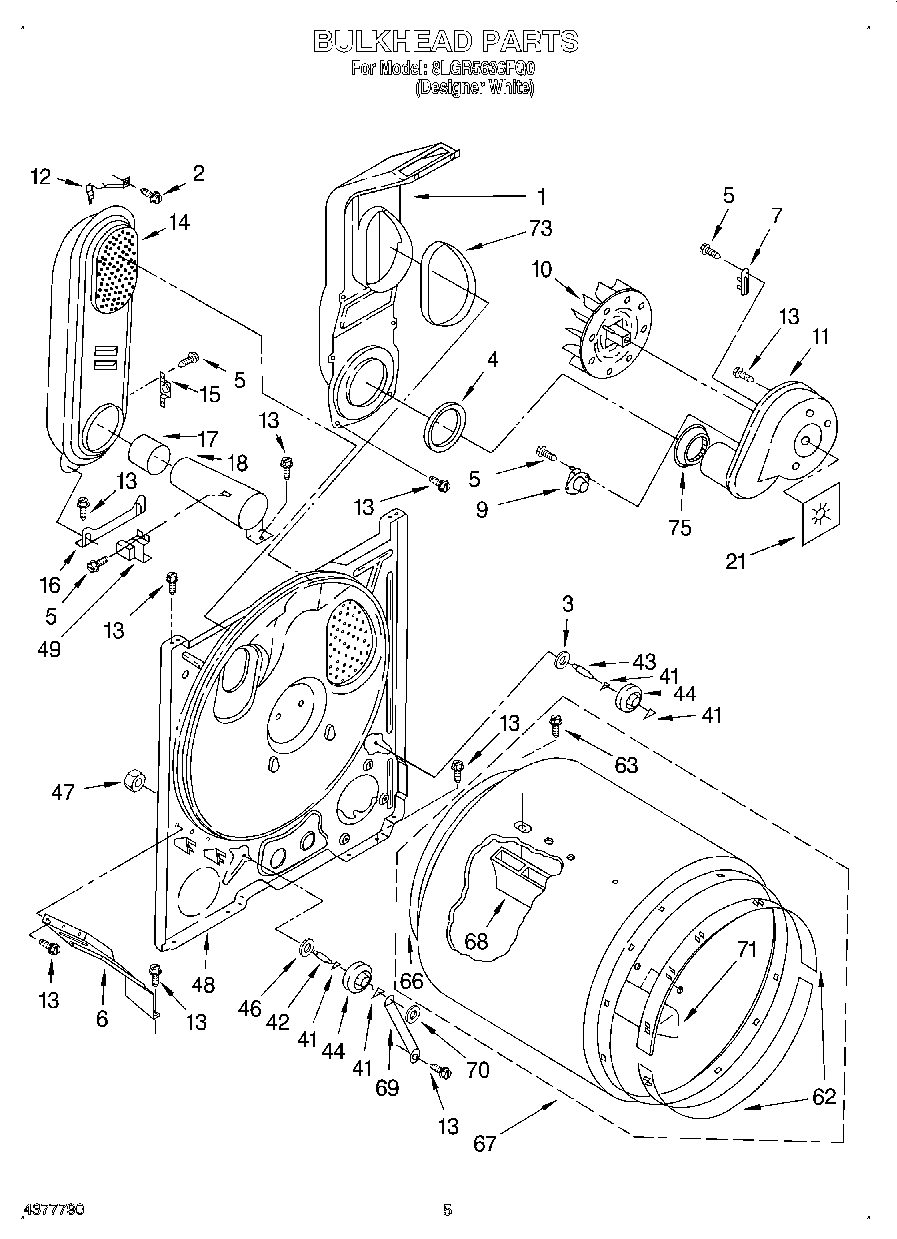

8LGR5636FQ0 03 – BULKHEAD

8LGR5636FQ0 03 – BULKHEAD

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11398682 Whirlpool Bracket
7WP3392519 Whirlpool Dryer Thermal Fuse
9WP3387134 Whirlpool Dryer Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
15W11050897 Whirlpool Dryer High Limit Thermostat
16Support, Heater Box
18279900 Whirlpool Box O/S1
21Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
49WP338906 Whirlpool Dryer Gas Sensor
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
75W11233063 Whirlpool Shield Assembly
