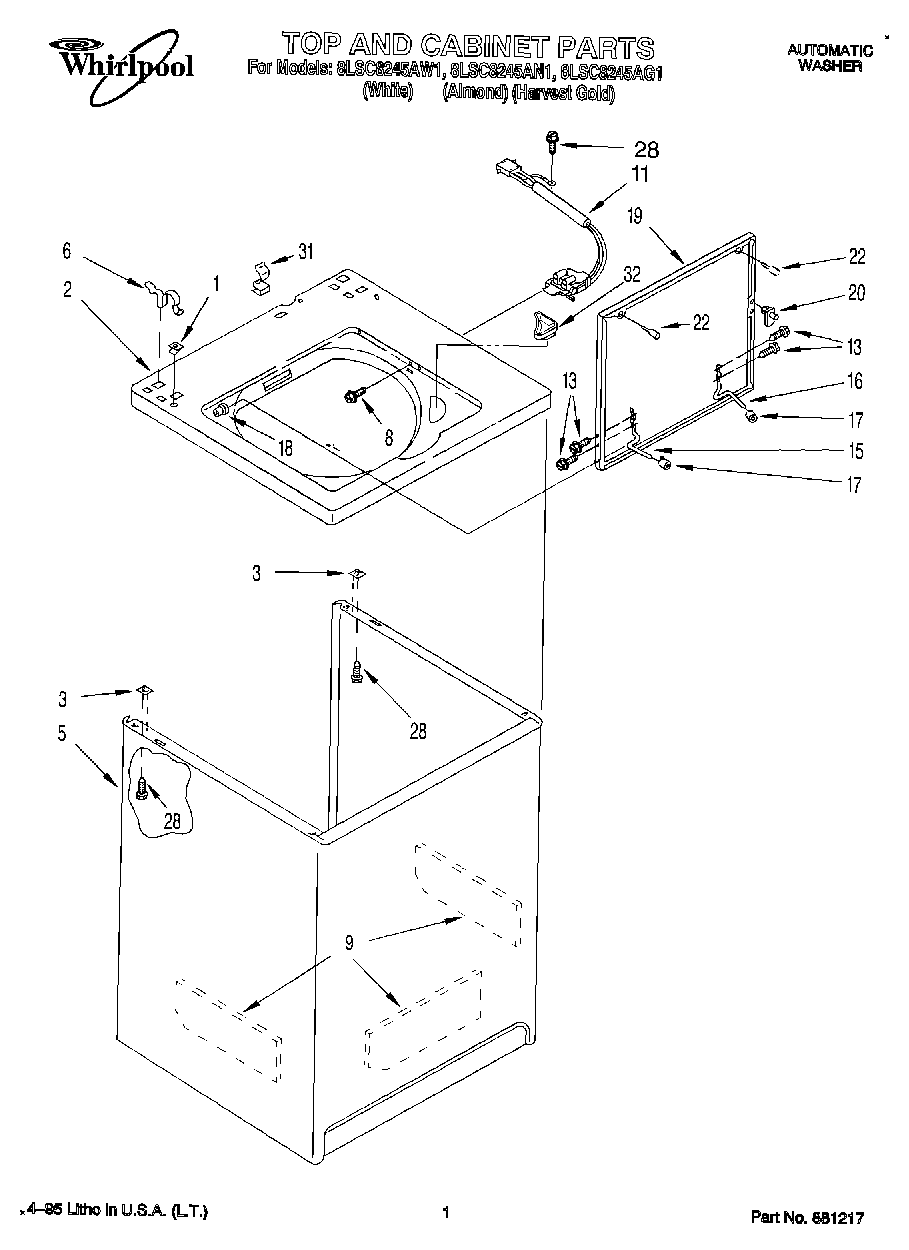

8LSC8245AG1 01 – TOP AND CABINET, LIT/OPTIONAL

8LSC8245AG1 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

8LSC8245AG1 01 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT3360466
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL 89121
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WP285195 Whirlpool Sealer Assembly
WPL LIT3358977
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
Manual, (Washer) Do-It-Yourself
799344 Whirlpool Refrigerator Paint
285320 Whirlpool Washer Siphon Break Kit
WPL LIT3361000
WP72107 Whirlpool Touchup
Almond (Uncut)
1WP357213 Whirlpool Hinge Stopper
2Top (For White & Desinger White Models)
2Top (For Almond Model)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
5Cabinet (Golden Harvest)
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
9Cabinet-Sound Damper
11285671 Whirlpool Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (For Harvest Gold Model)
19Lid (For White Model)
19Lid (For Almond Model)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28SCREW
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
