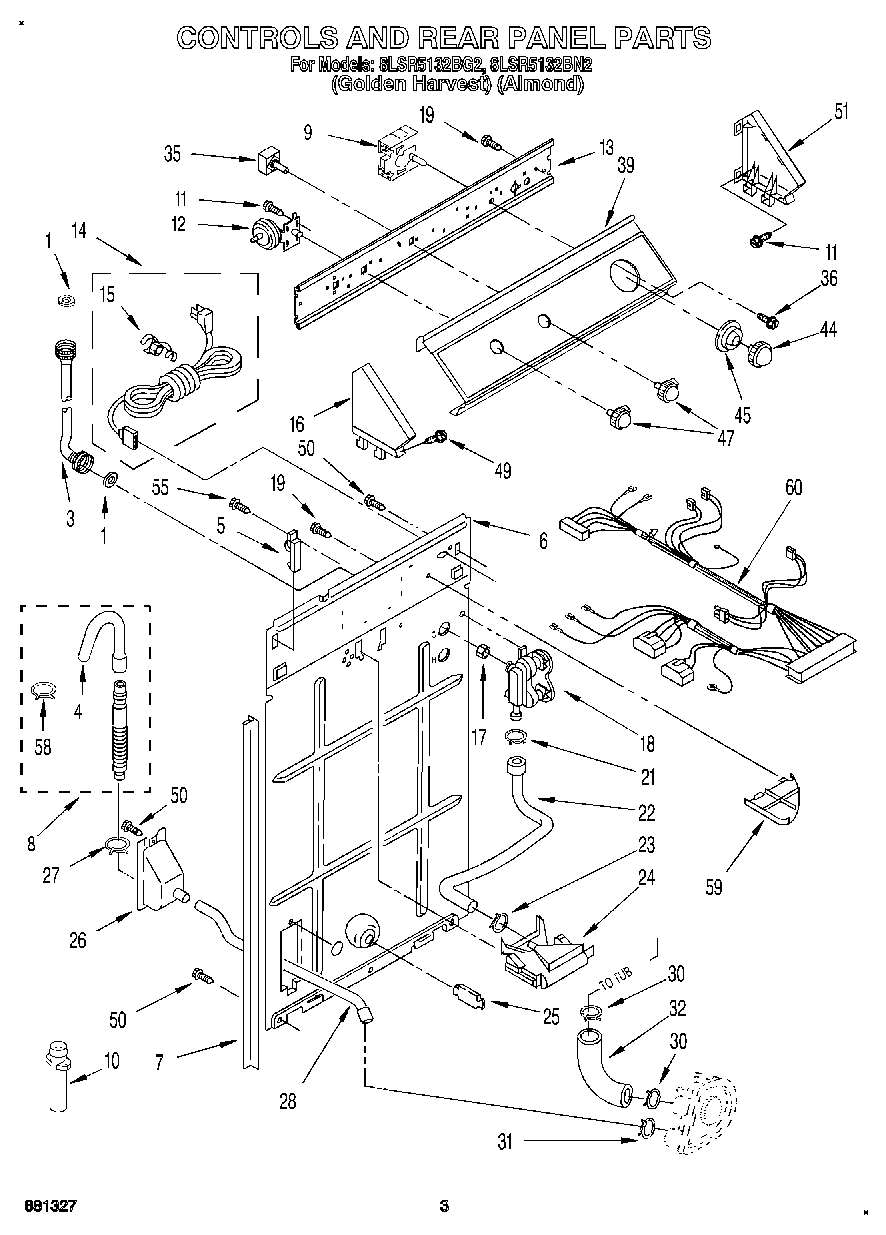

8LSR5132BN2 02 – CONTROLS AND REAR PANEL

8LSR5132BN2 02 – CONTROLS AND REAR PANEL

Written by

in

8LSR5132BN2 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9285952 Whirlpool Timer Assembly
103363920A Whirlpool Adapter Assembly
11WP90767 Whirlpool Screw
12WP3356467 Whirlpool Washer Water Level Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (Black/Chrome)
16Cap, End (L.H.) (Almond)
17WP96160 Whirlpool Washer Inlet Valve Screen
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Hose, Pump To Drain
30WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
35Switch, Water Temperature (Alt.)
35Switch, Water Temperature
35Switch, Water Temperature (Alt.)
36WP356418 Whirlpool Screw
39Panel, Console (For Almond Model)
39Panel, Console (For Golden Harvest Model)
44WP3364293 Whirlpool Timer Knob
45280193 Whirlpool Timer Knob
47KNOB
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (Almond)
51WPL 3358518
55WP308685 Whirlpool Microwave Screw
58WP3357331 Whirlpool Clamp
59WPL 3348424
60Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
