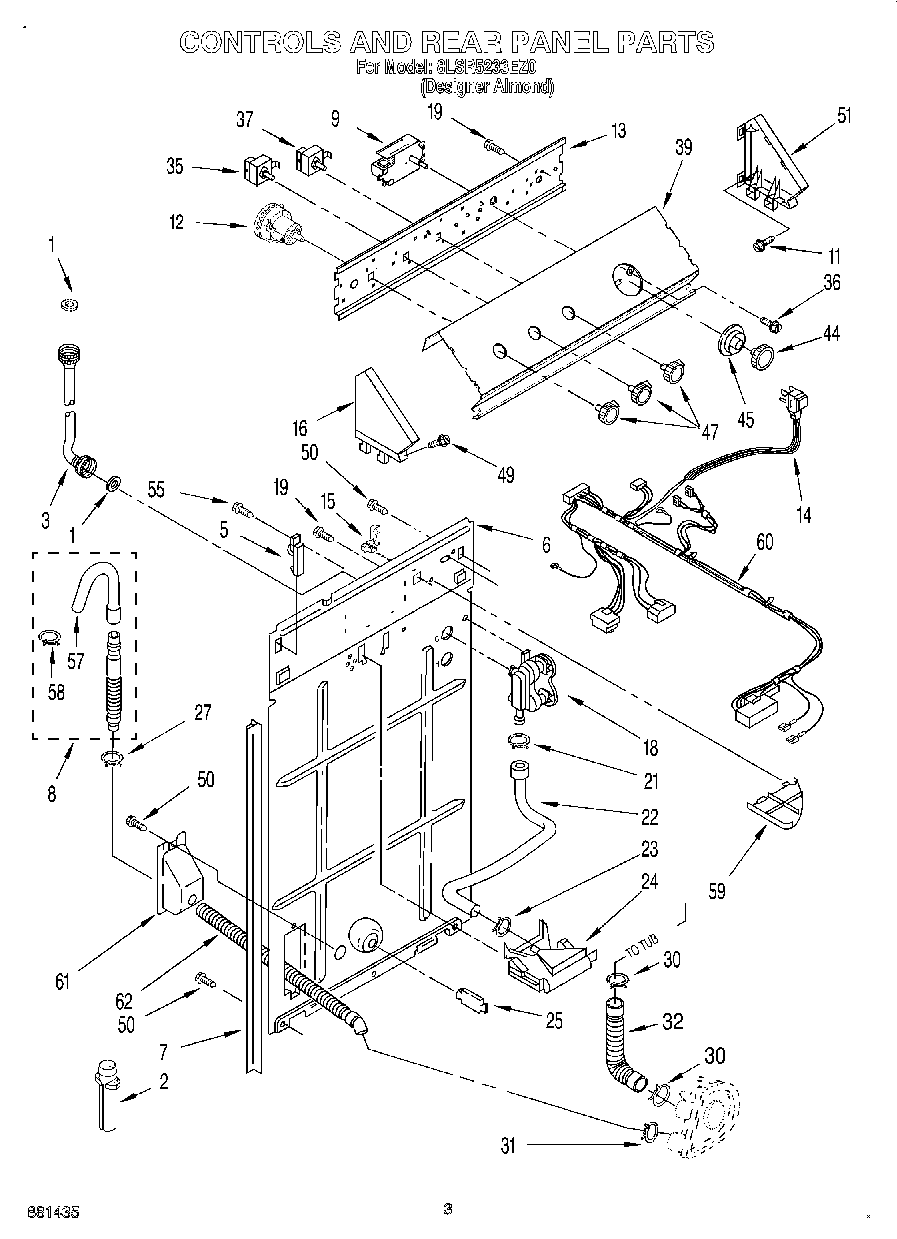

8LSR5233EZ0 02 – CONTROLS AND REAR PANEL

8LSR5233EZ0 02 – CONTROLS AND REAR PANEL

Written by

in

8LSR5233EZ0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
23363920A Whirlpool Adapter Assembly
3WP89503 Whirlpool Washer Fill Hose
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
9WP3949208 Whirlpool Timer
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Power Cord Only, Without Harness)
15Strain Relief, Power Cord
16Cap, End (L.H.) (Almond)
18285805 Whirlpool Washer Water Inlet Valve
19WP3351614 Whirlpool Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
27WP356138 Whirlpool Hose Clamp
30WP616099 Whirlpool Clamp
31WP371502 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
35WPW10168257 Whirlpool Cycle Switch
36W10915367 Whirlpool Screw Assembly
373949185 Whirlpool Temperature Switch
39Panel, Console
44WP3957823 Whirlpool Knob
45WPL 3948588
473957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.) (Almond)
55WP308685 Whirlpool Microwave Screw
57WP3357027 Whirlpool Nozzle Assembly
58WP3357331 Whirlpool Clamp
59WPL 3348424
60Harness, Wiring (Includes Power Cord) (For Detail See Wiring
61WPW10358149 Whirlpool Hose
62Hose, Pump To Drain
