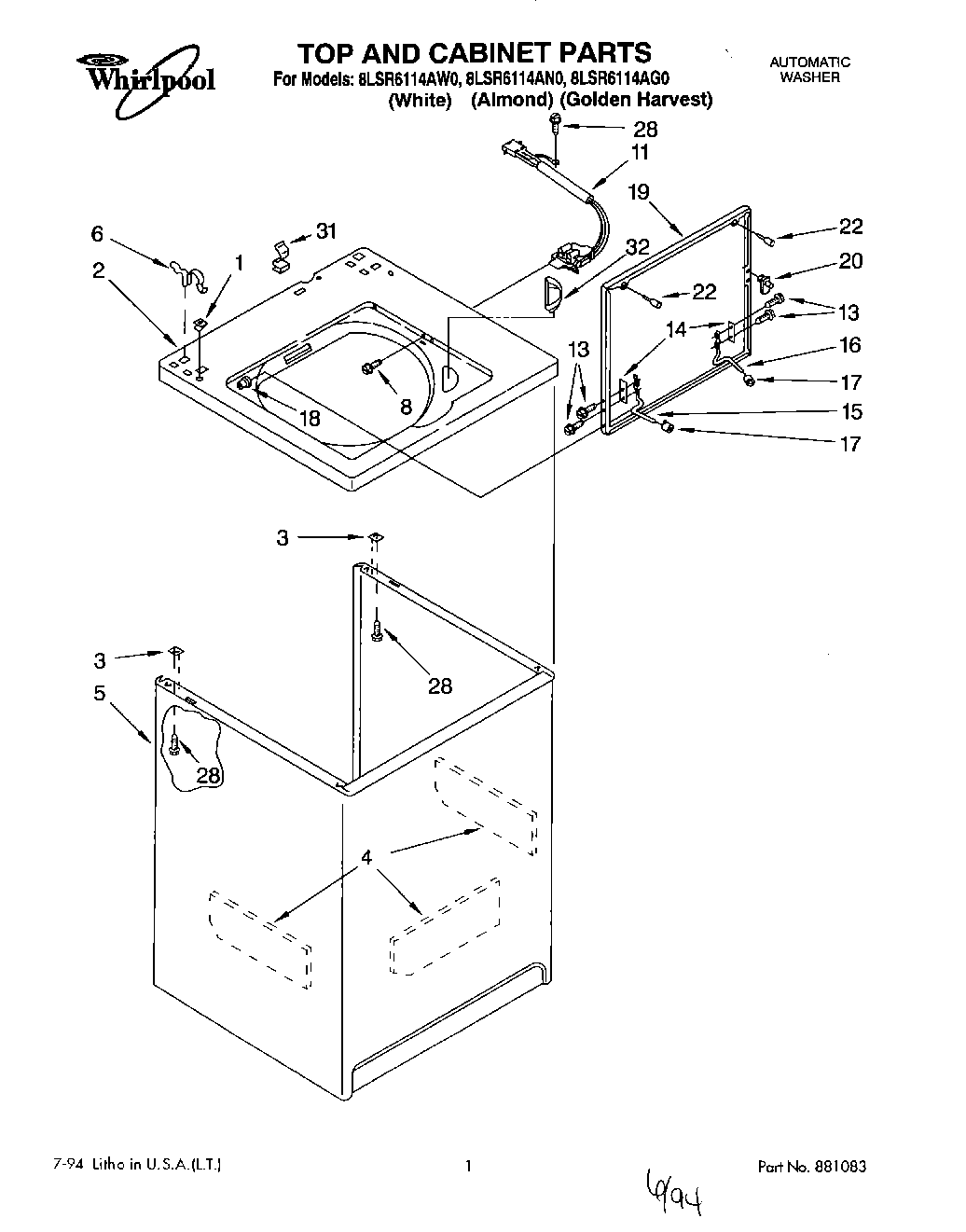

8LSR6114AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT881083
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	WPL LIT3358977
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	Manual, (Washer) Do-It-Yourself
	WPL LIT3360466
	WPL LIT3362141
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	350930 Whirlpool White Spray Paint
	285320 Whirlpool Washer Siphon Break Kit
	Almond (Uncut)
	350938 Whirlpool Spray Gun
1	WP357213 Whirlpool Hinge Stopper
2	Top (For White & Desinger White Models)
2	Top (For Almond Model)
2	Top (Golden Harvest)
3	WP62750 Whirlpool Spacer
4	Cabinet-Sound Damper
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
5	Cabinet (Golden Harvest)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (For White Model)
19	Lid (For Golden Harvest Model)
19	Lid (For Almond Model)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
31	WP90016 Whirlpool Clip
32	WP3362952 Whirlpool Bezel
