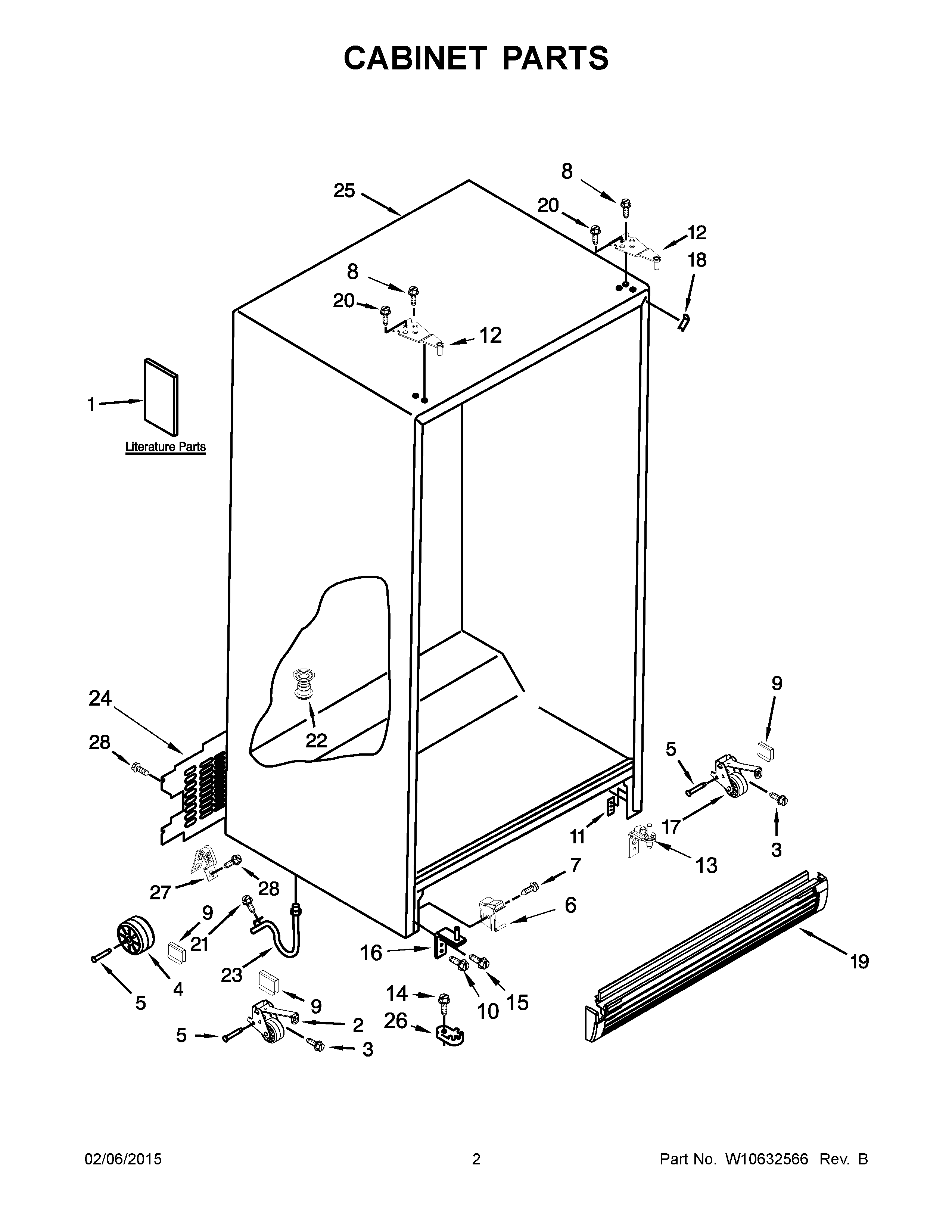

8MSF25N4BW00 02 – CABINET PARTS

Products

PositionProduct
1MAY W10581529
1AMAY W10581530
1BMAY W10640578
2ROLLER, FRONT (LEFT)
3MAY 489427
4MAY W10475495
5AXLE, ROLLER
6MAY 2155013
7MAY 488500
8SCREW
9CLIP, ROLLER
10MAY 3400103
11MAY 2304249
12HINGE, TOP (WHITE)
13MAY W10409481
14MAY W10142234
15Screw (4)
16MAY W10414753
17ROLLER, FRONT (RIGHT)
18CORNER FILLER (WHITE)
19MAY W10449698
20SCREW (WHITE)
21Screw (3)
22MAY 2304888
23MAY W10153550
24ASSEMBLY, UNIT COVER (BOTTOM)
25LINER (NOT A SERVICEABLE PART)
26CLOSER, FREEZER DOOR
27MAY W10303628
28MAY 489084
