8MSF25N4BW00 09 – CONTROL BOX PARTS
Written by
in

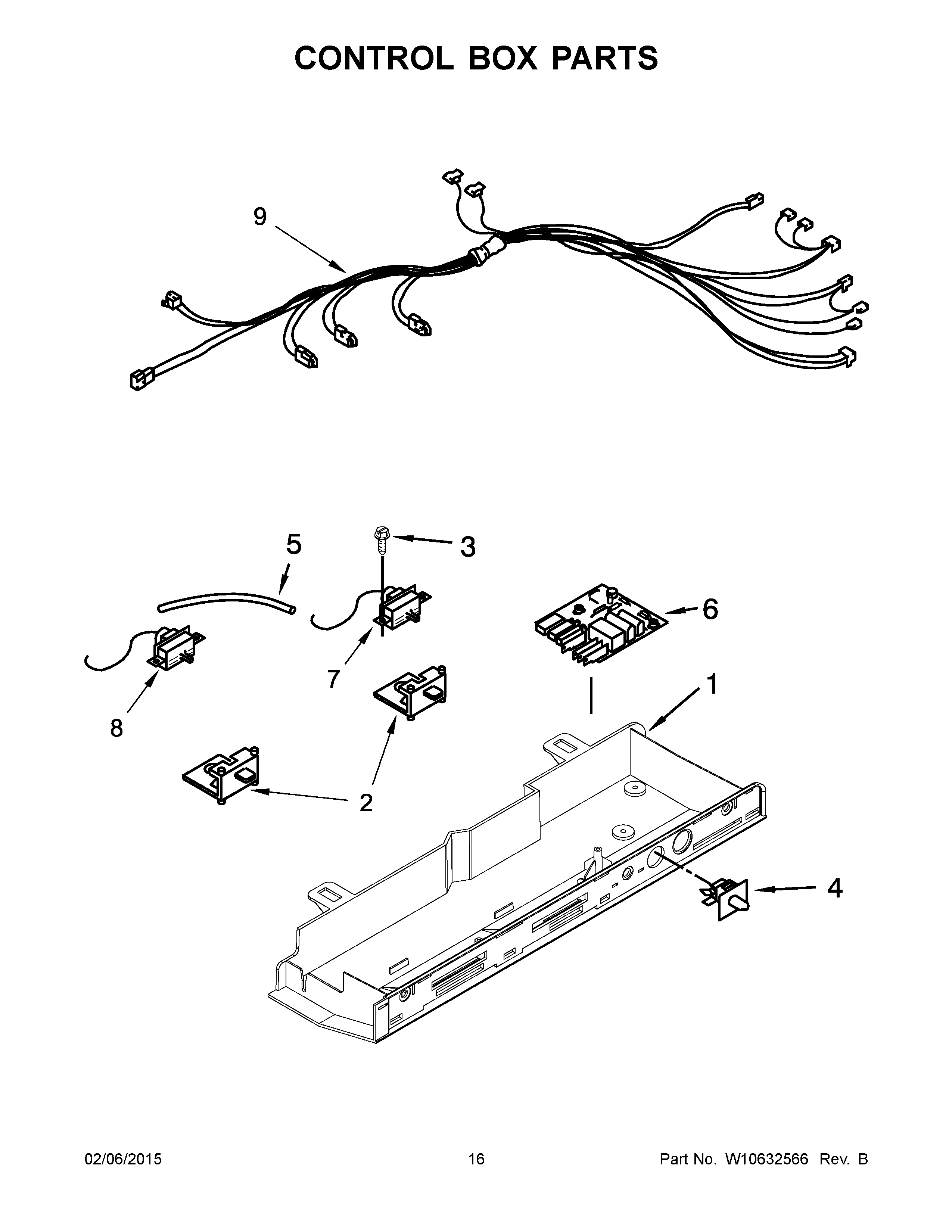

8MSF25N4BW00 09 – CONTROL BOX PARTS
Products
Position
Product
1
MAY W10590039
2
MAY 2161466
3
Screw (2)
4
MAY 2149705
5
TUBE, THERMOSTAT BARRIER
6
Control Board Assembly
7
MAY W10320574
8
THERMOSTAT (FREEZER)
9
MAY W10578492
←
