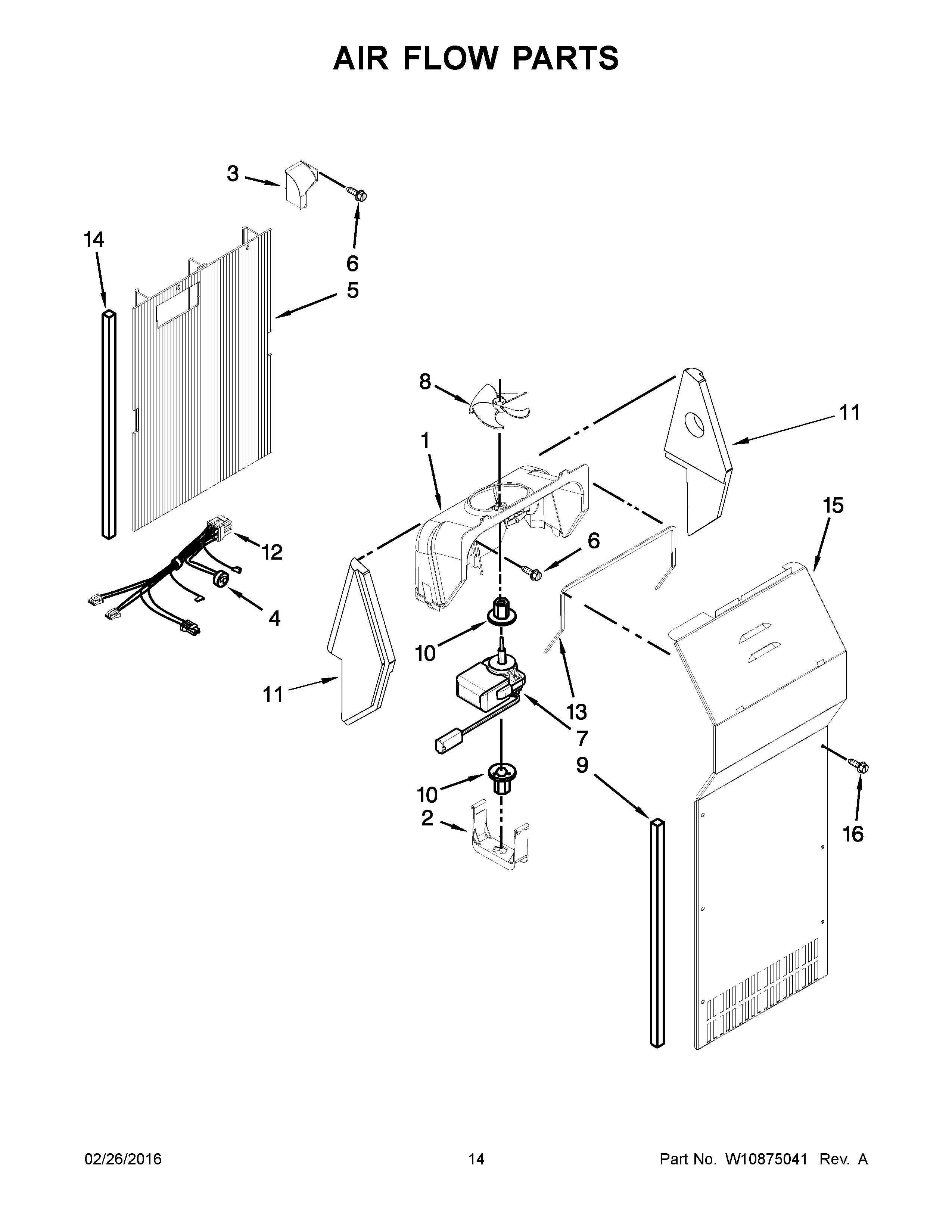

8MSF25N4BW02 08 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 2161229
4	MAY W10225581
5	DUCT, FREEZER AIR
6	MAY 489478
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11A	SUPPORT, FAN SCROLL (RIGHT HAND)
11	SUPPORT, FAN SCROLL (LEFT HAND)
12	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
13	Gasket, Fan Scroll
14	MAY 2203876
15	MAY W10463013
16	SCREW
