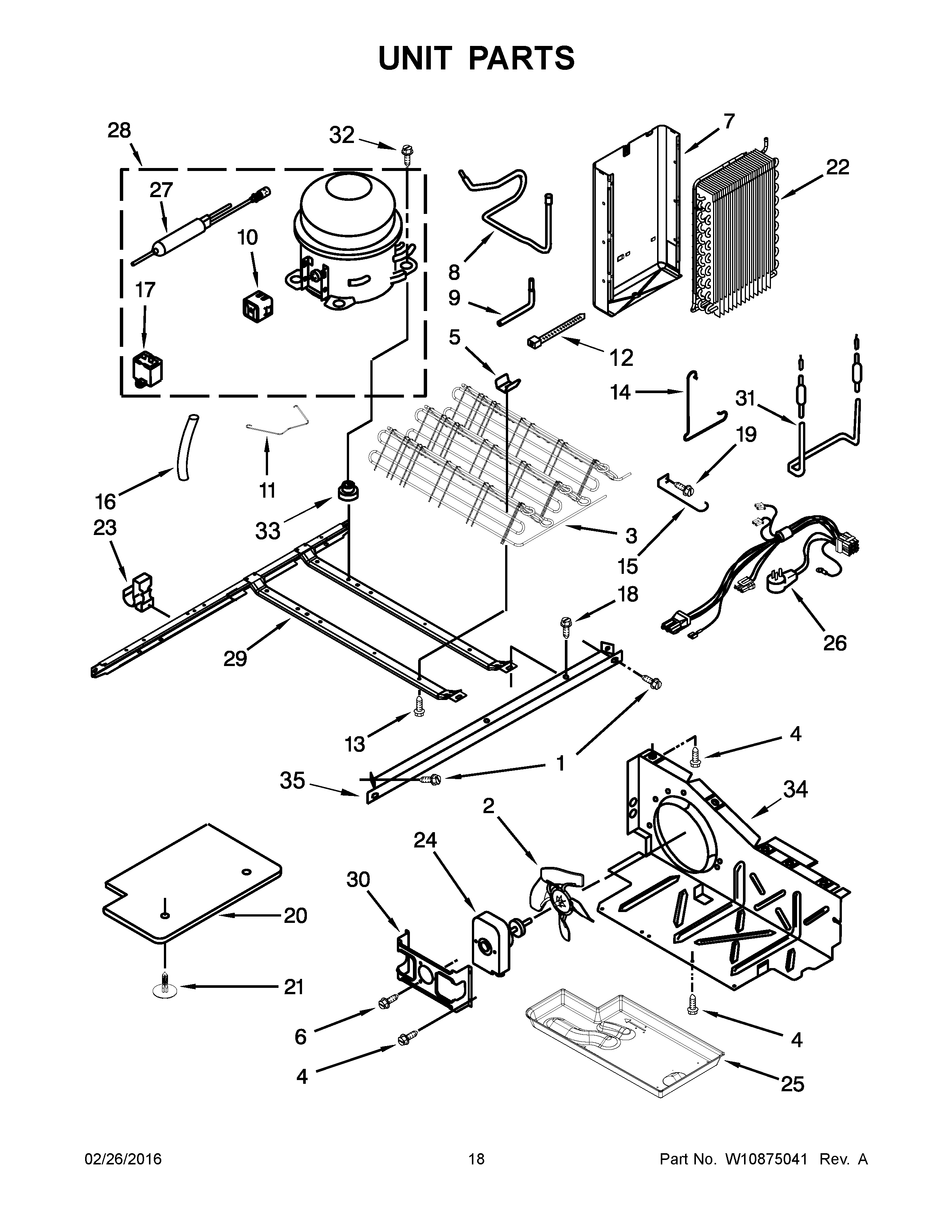

8MSF25N4BW02 10 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 489340
2	Fan, Blade
3	MAY 2324712
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	Heat Shield
8	MAY W10576260
9	MAY 2325479
10	Start-Device, Combination (Start Relay and Overload) (Service)
11	MAY 2223314
12	MAY 2263990
13	MAY 8281232
14	Clip
15	MAY 1110663
16	Sleeve, Pressure Switch Hose
17	MAY W10350564
18	MAY 489427
19	MAY 489478
20	ASSEMBLY, UNIT COVER (BOTTOM)
21	MAY 489396
22	Evaporator
23	MAY 2326941
24	MAY W10508362
25	MAY W10614158
26	MAY W10417918
27	MAY W10771114
28	COMPRESSOR (ALSO ORDER 876765 TUBE KIT)
29	Unit Mounting Frame
30	MAY 2181929
31	MAY 2188175
32	MAY W10476309
33	GROMMET
34	MAY W10332806
35	Unit Mounting Rail
