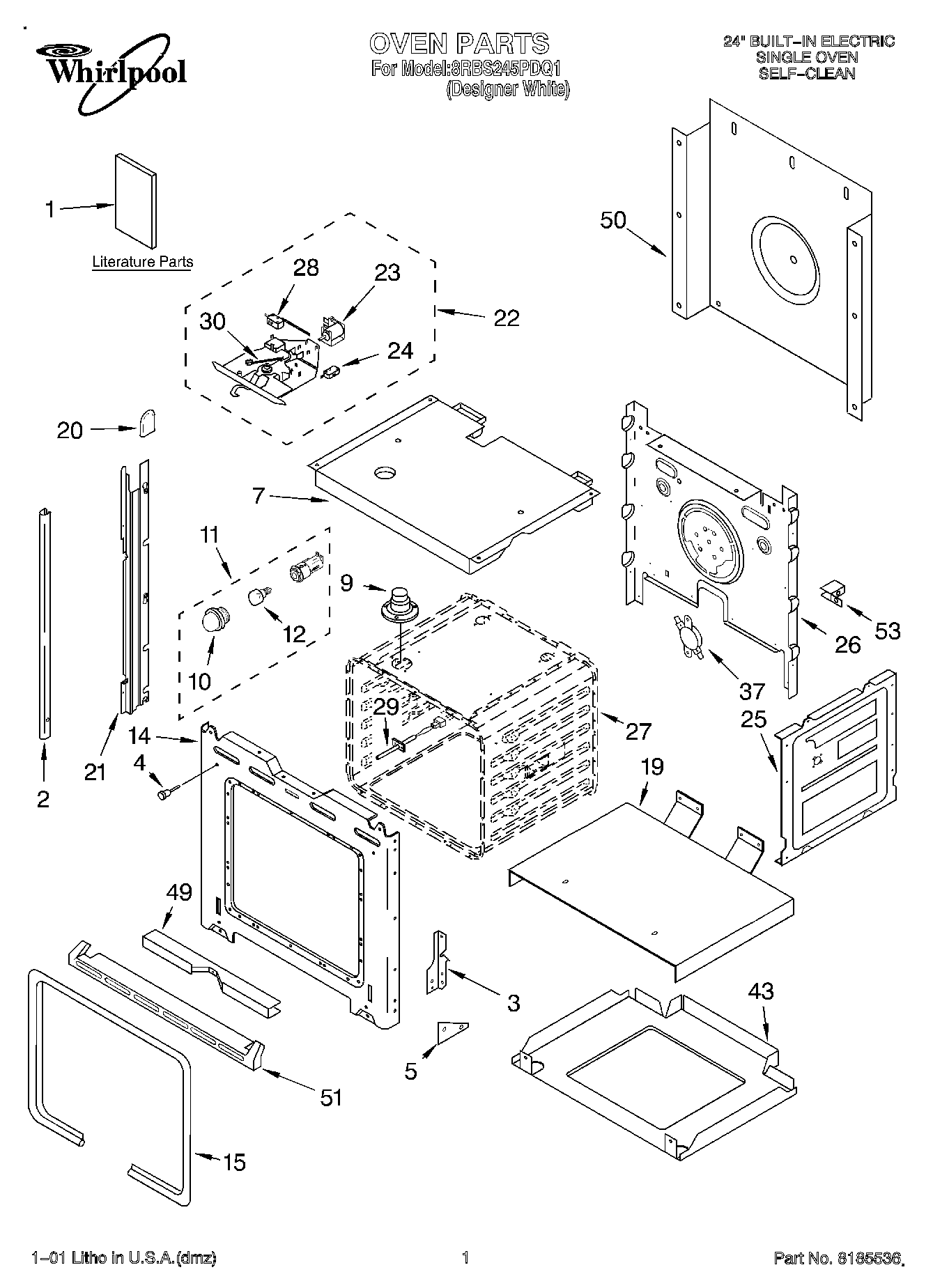

8RBS245PDQ1 01 – OVEN, LITERATURE

Products

Position	Product
1	Literature Parts (Cookbook, Brastemp)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide (Oven))
2	Trim, Side (LH White Screw)
2	Trim, Side (White, Right)
2	Trim, Side (White)
3	Reciever, Hinge (Right Hand)
3	Reciever, Hinge (Left Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
7	4455863 Whirlpool Oven Top Assembly
9	W10861715 Whirlpool Vent Tube
9	SCREW
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
14	Screw
14	9760754 Whirlpool Oven Front Frame
14	WP4450118 Whirlpool Nut
15	WP4455380 Whirlpool Door Gasket
19	4451476 Whirlpool Support
20	Cap, Spacer
21	814372 Whirlpool Oven Rail Mount
21	814371 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	Side, Chassis (R.H. & L.H.)
26	4452232 Whirlpool Oven Rear Cover
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	Sensor
30	Spring, Latch
37	WP9759243 Whirlpool Thermostat
43	4450525 Whirlpool Oven Bottom Assembly
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WP4449745 Whirlpool Screw
51	WPL 4448474
53	WPL 4449845
53	WP4450363 Whirlpool Insulation
53	WP4449314 Whirlpool Insulation
53	WP4449809 Whirlpool Screw
