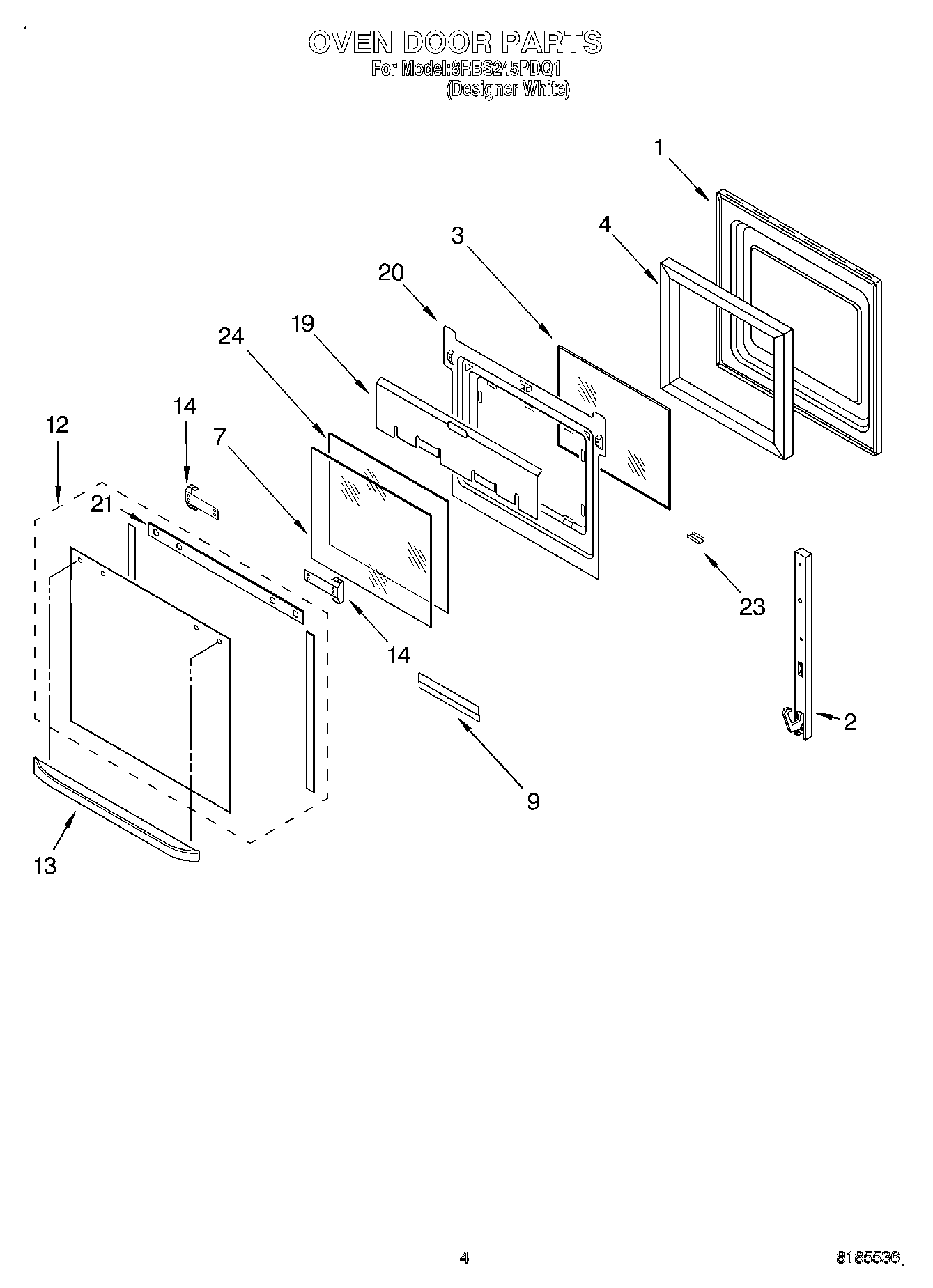

8RBS245PDQ1 03 – OVEN DOOR

8RBS245PDQ1 03 – OVEN DOOR

Written by

in

8RBS245PDQ1 03 – OVEN DOOR

Products

PositionProduct
1WP8303698 Whirlpool Door Liner
2WP4455523 Whirlpool Oven Door Hinge
3WP4449247 Whirlpool Inner Door Glass
4W11688413 Whirlpool Insulation
7Glass, Inner
9Retainer, Glass
12Door Glass Assy (White Model)
13Door Handle (White Model)
14WP4449743 Whirlpool Screw
14Screw
14Bracket, Handle
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Door Top
23Clip, Retainer (White Model)
24Glass, Inner
