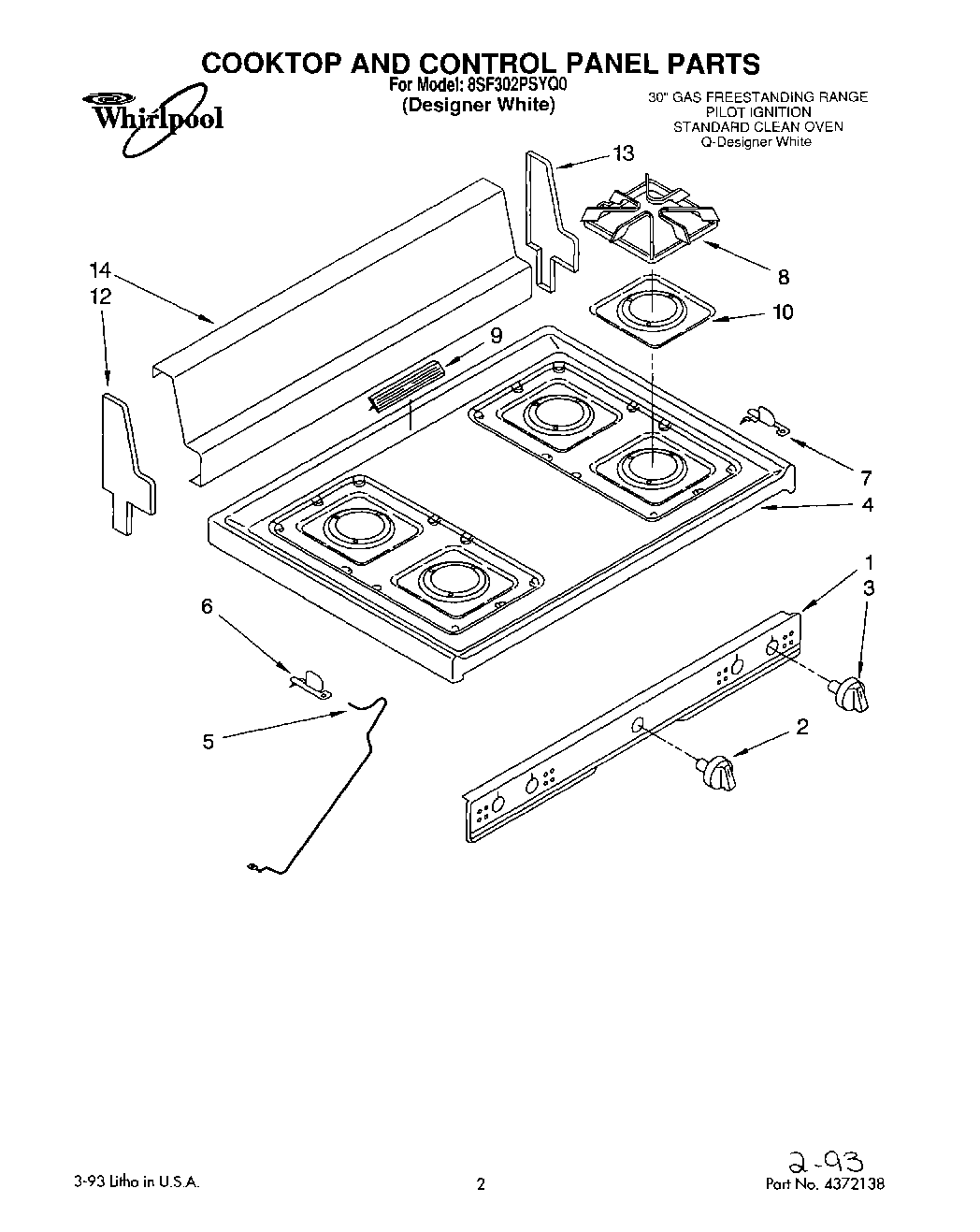

8SF302PSYQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

8SF302PSYQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Written by

in

8SF302PSYQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Guide, Use & Care
List, Repair Parts
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner
9Cover, Vent
10Pan, Burner
12Endcap LH
13Endcap RH
14Panel, Backguard
