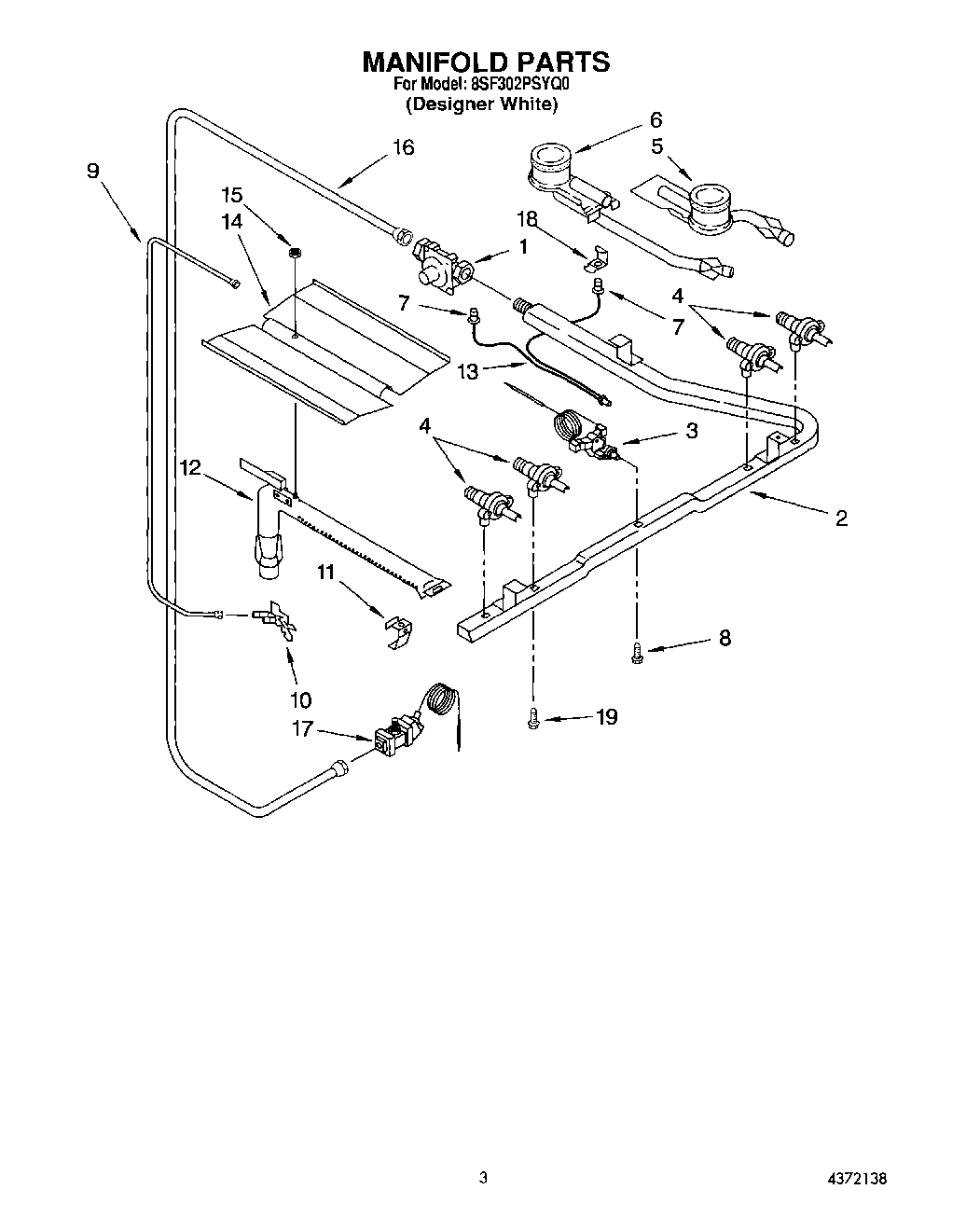

8SF302PSYQ0 02 – MANIFOLDadmin2025-04-26T11:38:51+00:008SF302PSYQ0 02 – MANIFOLD
Products
| Position | Product |
|---|
| 1 | Regulator, Pressure |
| 2 | Pipe, Manifold |
| 3 | Thermostat (Includes Illus.8) |
| 4 | Valve, 2 pos (4) Includes Illus. 18 |
| 5 | Burner, Front (2) |
| 6 | Burner, Rear (2) |
| 7 | Cap, Pilot (2) |
| 8 | Screw, Thermostat |
| 9 | Tubing, Thermostat |
| 10 | Pilot, Oven |
| 11 | Bracket, Burner |
| 12 | Burner, Oven |
| 13 | Tubing, Pilot |
| 14 | Baffle, Oven Burner |
| 15 | Nut, Hex (2) |
| 16 | Tubing, Valve |
| 17 | Valve, Safety |
| 18 | Shield, Pilot |
| 19 | WP3186217 Whirlpool Screw |
