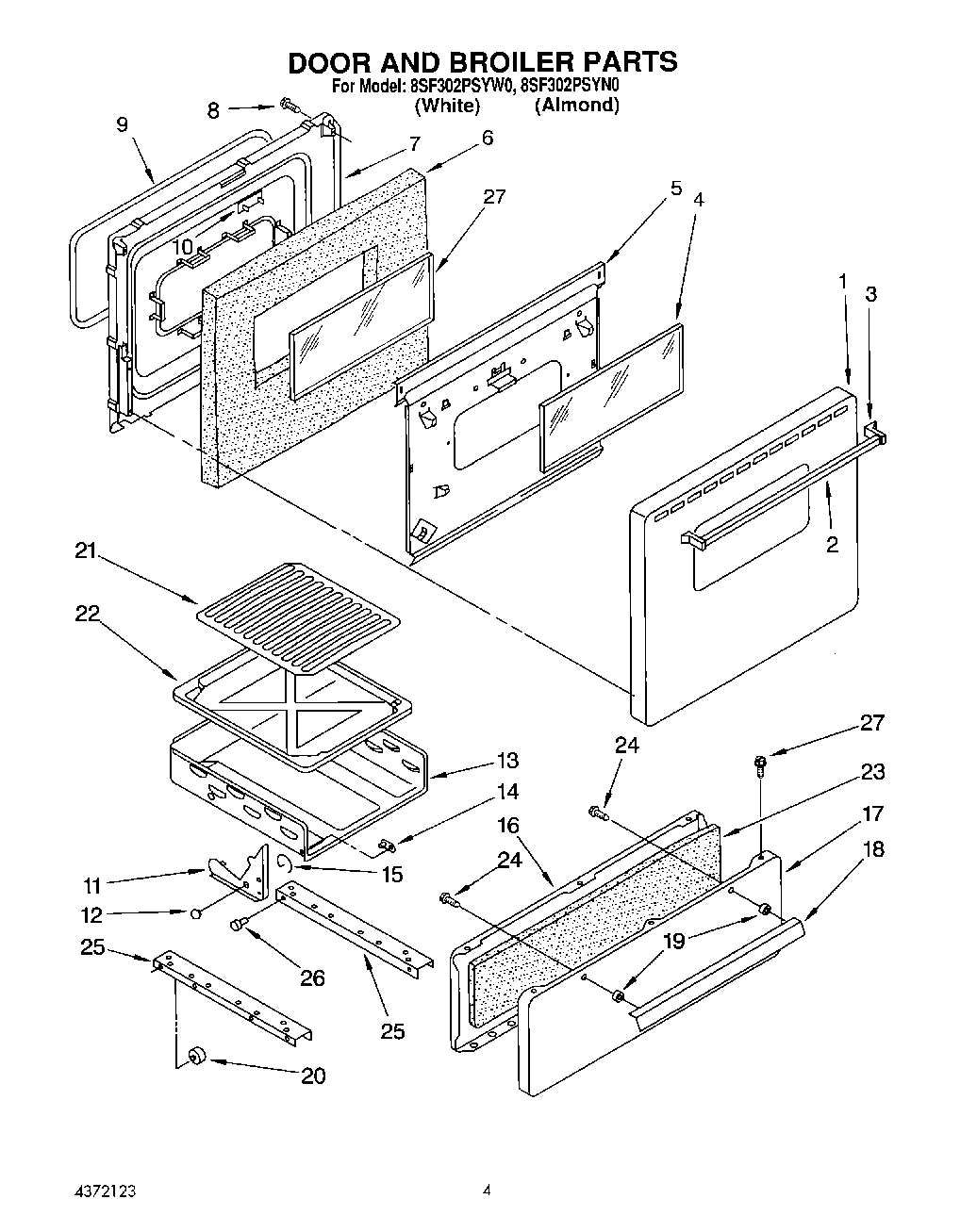

8SF302PSYW0 03 – DOOR AND BROILER

Products

PositionProduct
1Panel, Oven Door (Almond)
1Panel, Oven Door (White)
2Handle, Door
3Endcap (2)
4Window, Oven Door
5Shield, Heat
6Insulation, Door
7Liner, Oven Door
8Screw, Handle
9Seal, Door
10Cover, Door
11Bracket, Hinge (L.H.)
11Bracket, Hinge (R.H.)
12Fastener, Push Nut
13Body, Broiler
14Pin, Hinge (2)
15Spring, Broiler (R.H.)
15Spring, Broiler (L.H.)
16Liner, Broiler Door
17Panel, Drawer (White)
17Panel, Drawer (Almond)
18Handle
19Spacer, Handle
20Glide, Drawer (6)
21Insert, Broiler Pan
22Pan, Broiler
23Insulation
24Screw, Handle (2)
25Channel, Broiler
26Button, Glide (2)
27Glass, Inner
