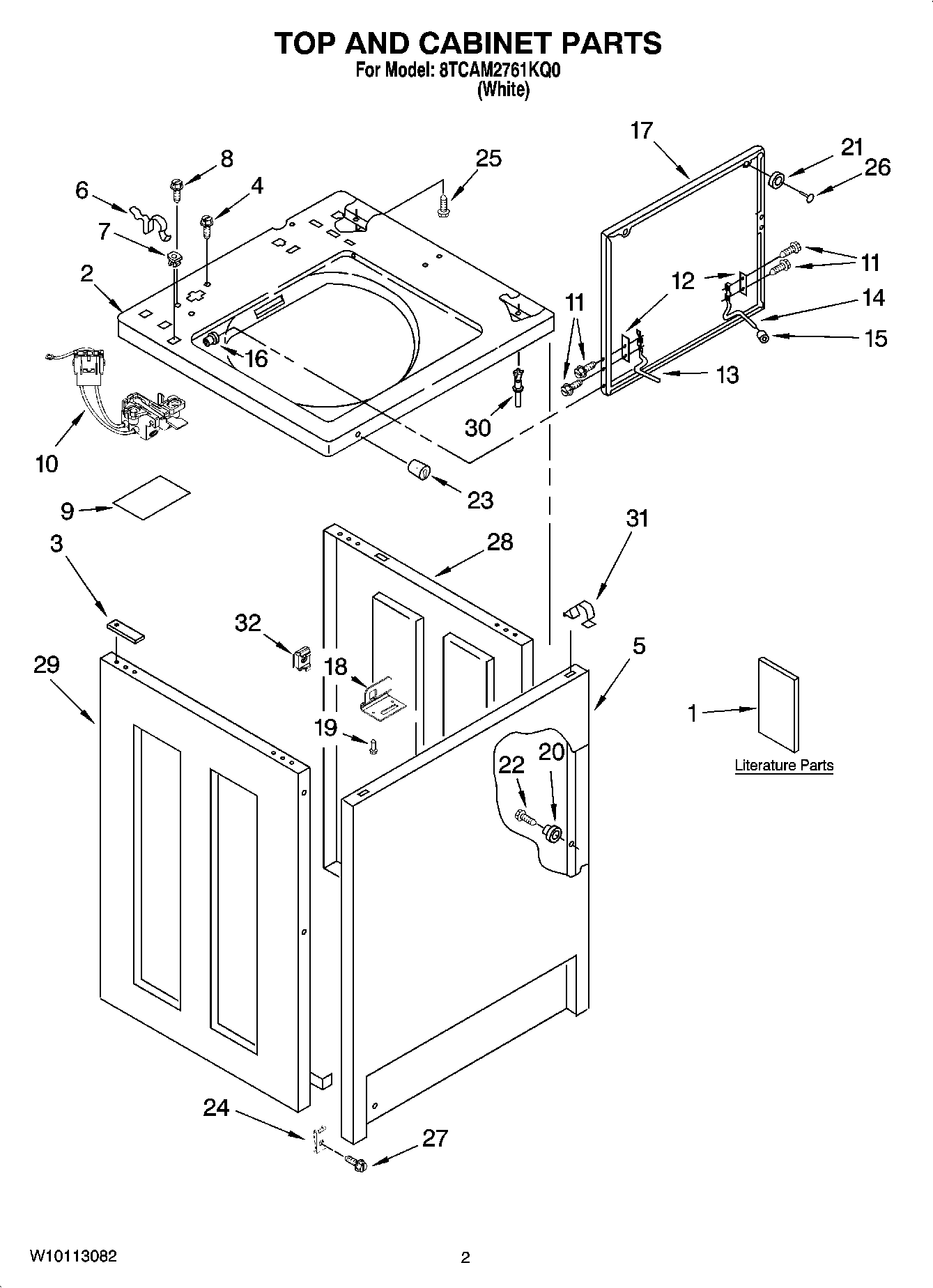

8TCAM2761KQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Installation Instructions
1Feature Sheet
1Wiring Diagram
2Top
3Spacer, Cabinet To Top (4)
4WP3351614 Whirlpool Screw
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Nut, Push-In (2)
8Screw, Lid Switch (2)
9Shield, Pressure Switch
10WP8054980 Whirlpool Lid Switch Assembly
11SCREW
12WP21097 Whirlpool Pad
13WP8524784 Whirlpool Hinge Assembly
14WP54583 Whirlpool Hinge
15Bumper, Lid Hinge
16WP21258 Whirlpool Washer Lid Hinge Bearing
17WPW10193854 Whirlpool Lid Assembly
18Bracket, Lock
19Rivet (2)
20Locator (4)
21BUMPER
22WP9741232 Whirlpool Dishwasher Screw
23WP387371 Whirlpool Plug
24Clip, U-Bend (2)
25Screw (2)
26WP356907 Whirlpool Rivet
27WP3373329 Whirlpool Dishwasher Screw
28Side Panel (RH)
29Side Panel (LH)
30Pin, Locator (2)
31WP18776 Whirlpool Lock
32WP90406 Whirlpool Nut
