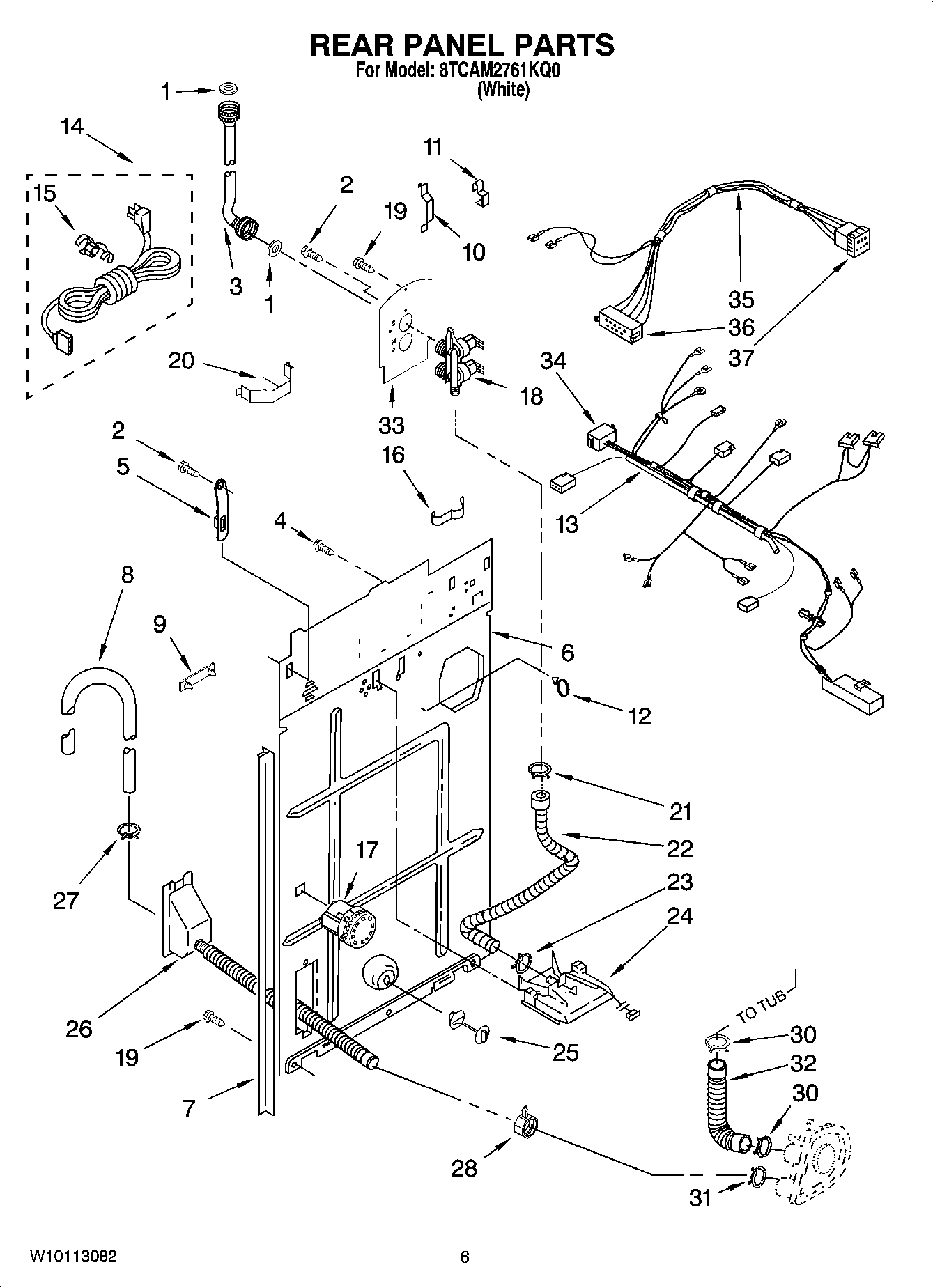

8TCAM2761KQ0 04 – REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP3949381 Whirlpool Fill Hose
3WP3949380 Whirlpool Fill Hose
4WP3351614 Whirlpool Screw
5WP8568314 Whirlpool Strap
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WP96743 Whirlpool Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9WP389379 Whirlpool Retainer
10Clip, Harness
11Clip, Harness
128559320 Whirlpool Clip
13WP353244 Whirlpool Hose
14WP8559419 Whirlpool Power Cord
15Strain Relief, Power Cord
168528351 Whirlpool Clip
17W10339019 Whirlpool Washer Water Level Switch
18285805 Whirlpool Washer Water Inlet Valve
19WP3390631 Whirlpool Screw
20Clip, Harness & Pressure Hose
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33285930 Whirlpool Plate
34W10111970 Whirlpool Wire Harness
35Harness, Timer (Includes Illus. 68 & 69)
36W10876590 Whirlpool Connector
37Miscellaneous Parts Bag
37Cap, Terminal (15 Way)
37Following Parts Not Illustrated
