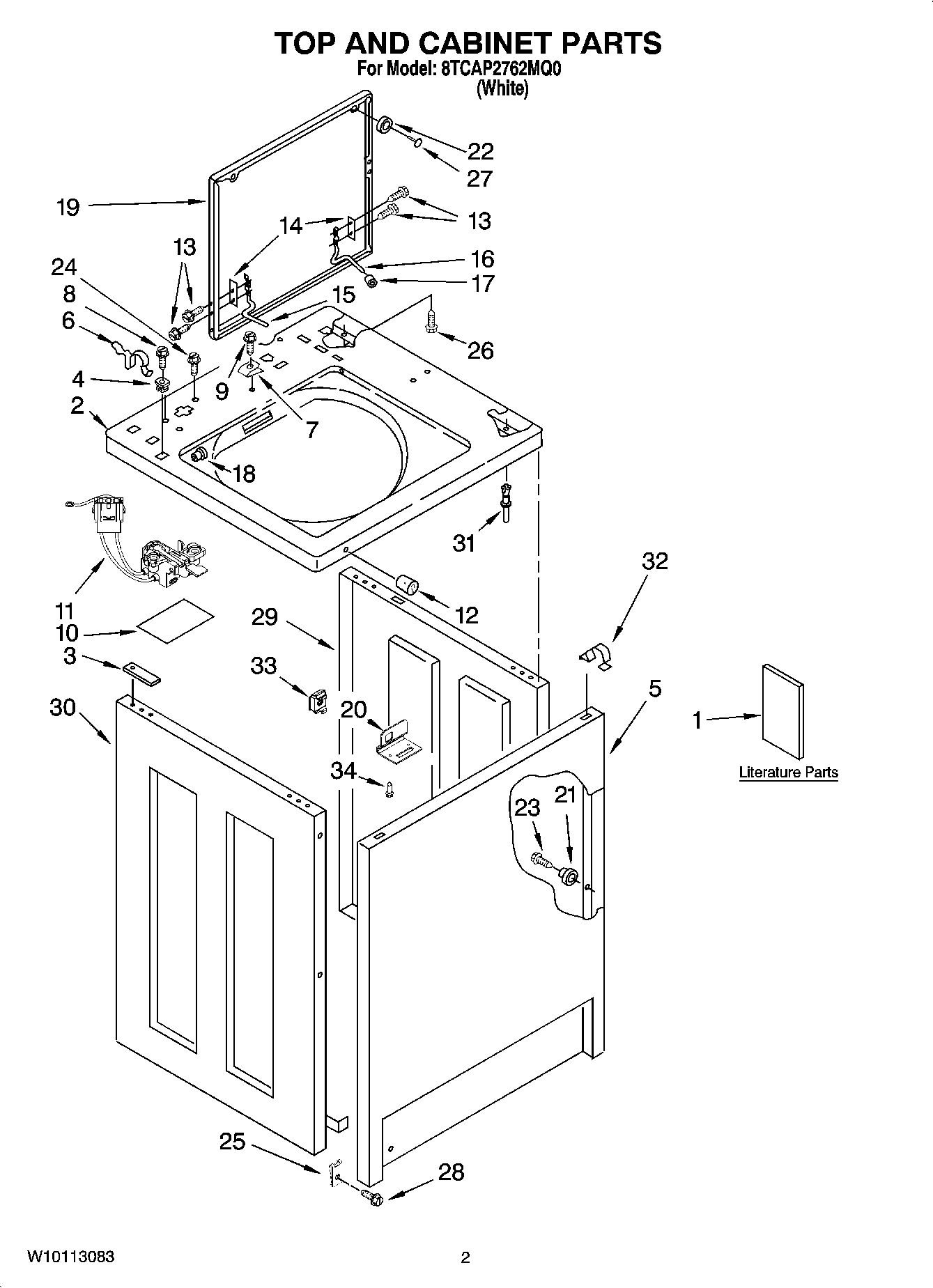

8TCAP2762MQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Instructions, Coin Slide
1Feature Sheet
1Installation Instructions
1Tech Sheet
1Wiring Diagram
2Top
3Spacer, Cabinet To Top (4)
4Nut, Push-In (2)
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Clip, Static Ground
8Screw, Lid Switch (2)
9WP355214 Whirlpool Screw
10Shield, Pressure Switch
11WP8054980 Whirlpool Lid Switch Assembly
12WP387371 Whirlpool Plug
13SCREW
14WP21097 Whirlpool Pad
15WP8524784 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20Bracket, Lock
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
24WP3351614 Whirlpool Screw
25Clip, U-Bend (2)
26Screw (2)
27WP356907 Whirlpool Rivet
28WP3373329 Whirlpool Dishwasher Screw
29Side Panel (RH)
30Side Panel (LH)
31Pin, Locator (2)
32WP18776 Whirlpool Lock
33WP90406 Whirlpool Nut
34Rivet (2)
