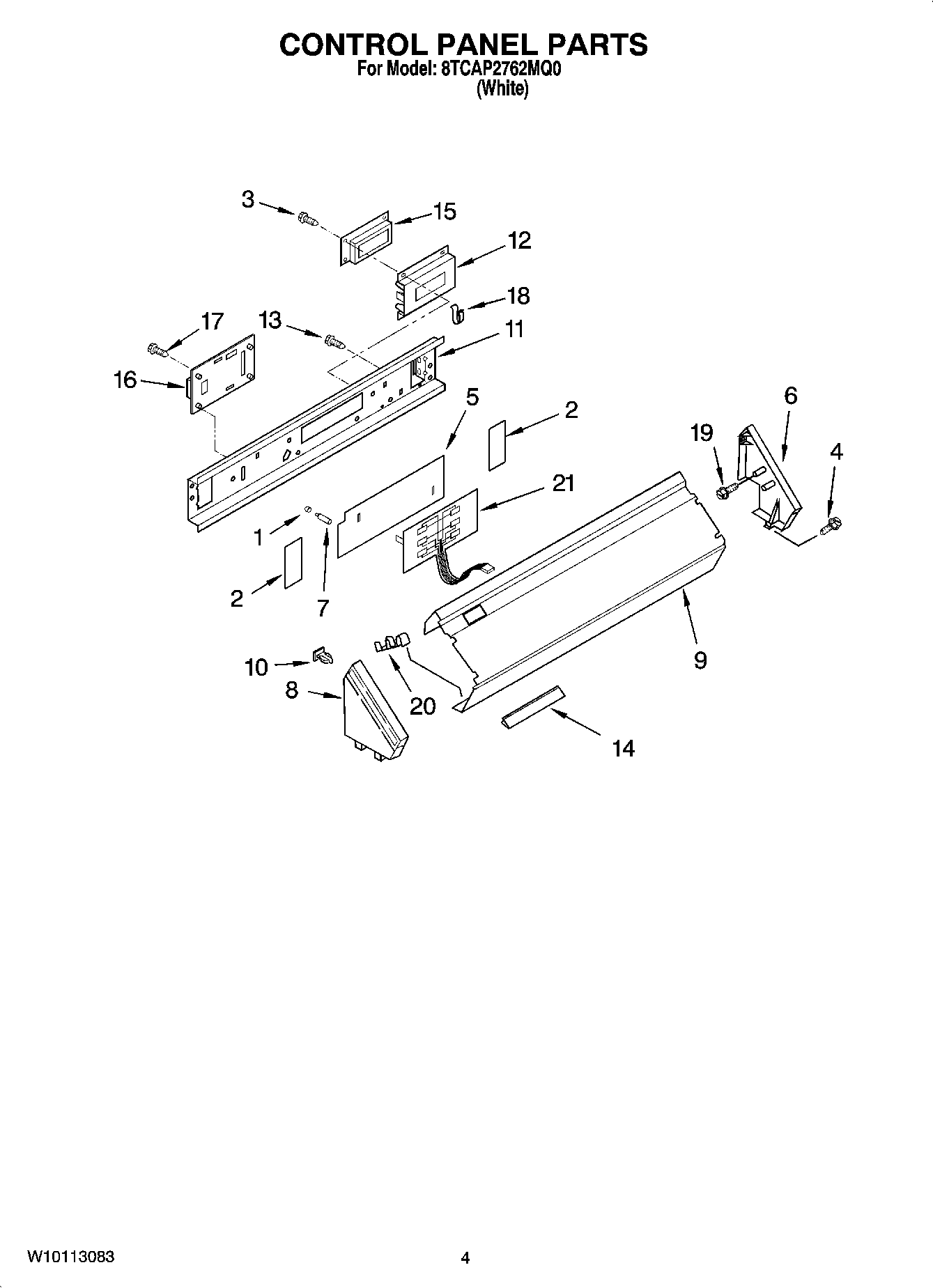

8TCAP2762MQ0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Cap, Stud
2	Backer Plate, Side (2)
3	WP90767 Whirlpool Screw
4	WP8281182 Whirlpool Screw Assembly
5	Backer Plate
6	Cap, End (R.H.)
7	Mounting Stud
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
10	WP689559 Whirlpool Nut
11	Bracket, Control
12	Lens, Display
13	3400073 Whirlpool Screw
14	686770 Whirlpool Support Bracket
15	Display, Electronic
16	WP3407152 Whirlpool Electronic Control Board
17	WPW10366705 Whirlpool Screw
18	Clip (2)
19	WPW10109200 Whirlpool Screw
20	W10113937 Whirlpool Clamp
21	Switch, Membrane
