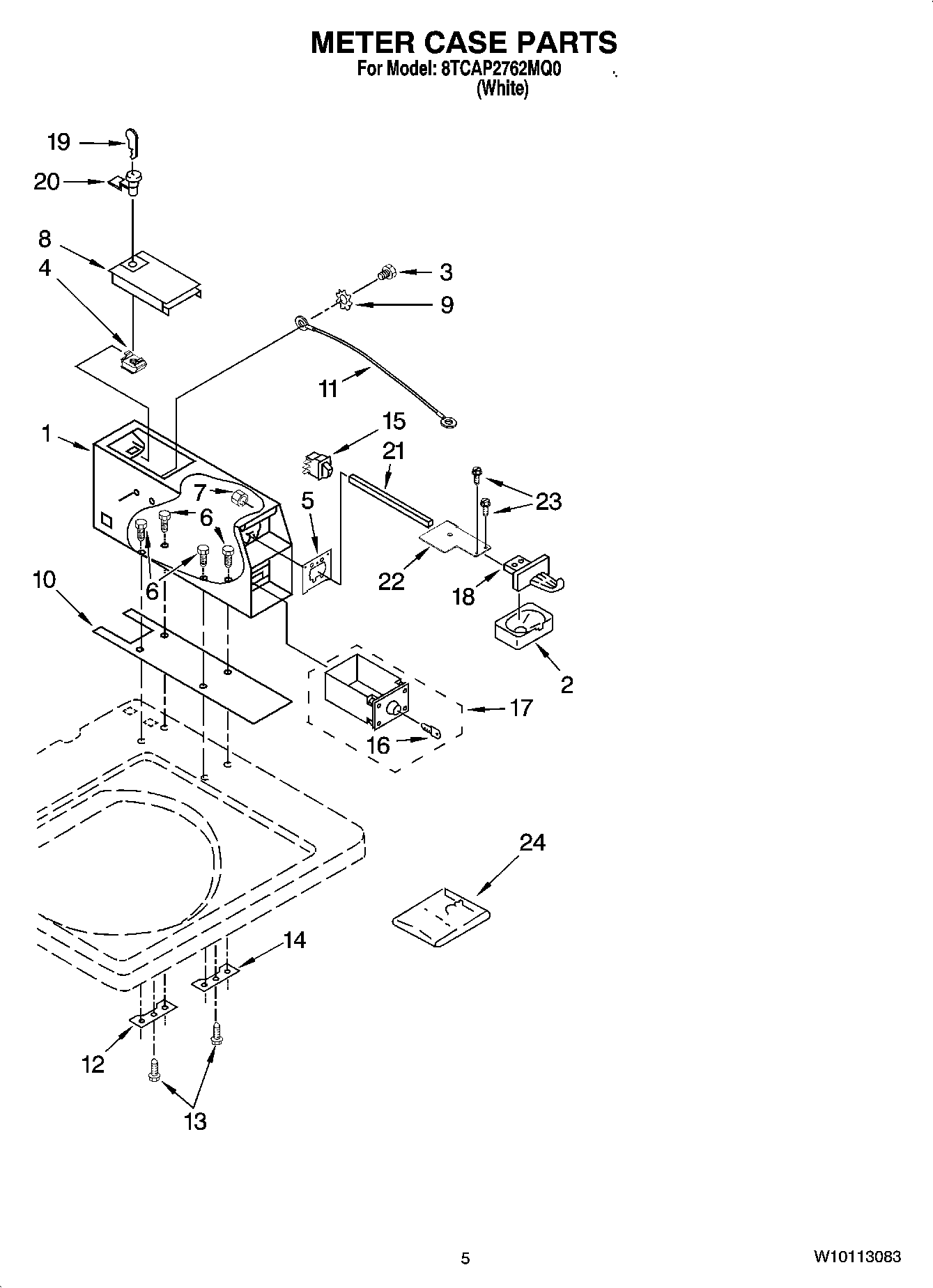

8TCAP2762MQ0 03 – METER CASE PARTS

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	279950 Whirlpool Funnel
6	3353994 Whirlpool Screw Assembly
6	W11715721 Whirlpool Screw Assembly
7	WP3400029 Whirlpool Dishwasher Nut
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	W11170663 Whirlpool Washer
10	WP3954812 Whirlpool Cushion
11	Wire, Ground
12	Plate, Mounting
13	W10841059 Whirlpool Screw
14	3347825 Whirlpool Plate
15	Switch, Service Diagnostic
15	Following Parts Supplied on Whirlpool Coin Equipped Models Only.
16	Key, Money Box
17	W11190039 Whirlpool Coin Box Assembly
18	WPL 8316265
18	Inserts (Not Shown
18	W11126319 Whirlpool Washer Dryer Coin Chute
19	4396669 Whirlpool Washer Dryer Door Key
20	W11315637 Whirlpool Lock Assembly
21	WP8576635 Whirlpool Bolt
22	W11318367 Whirlpool Extension
23	WPL 3400086
24	WPL 8316524
