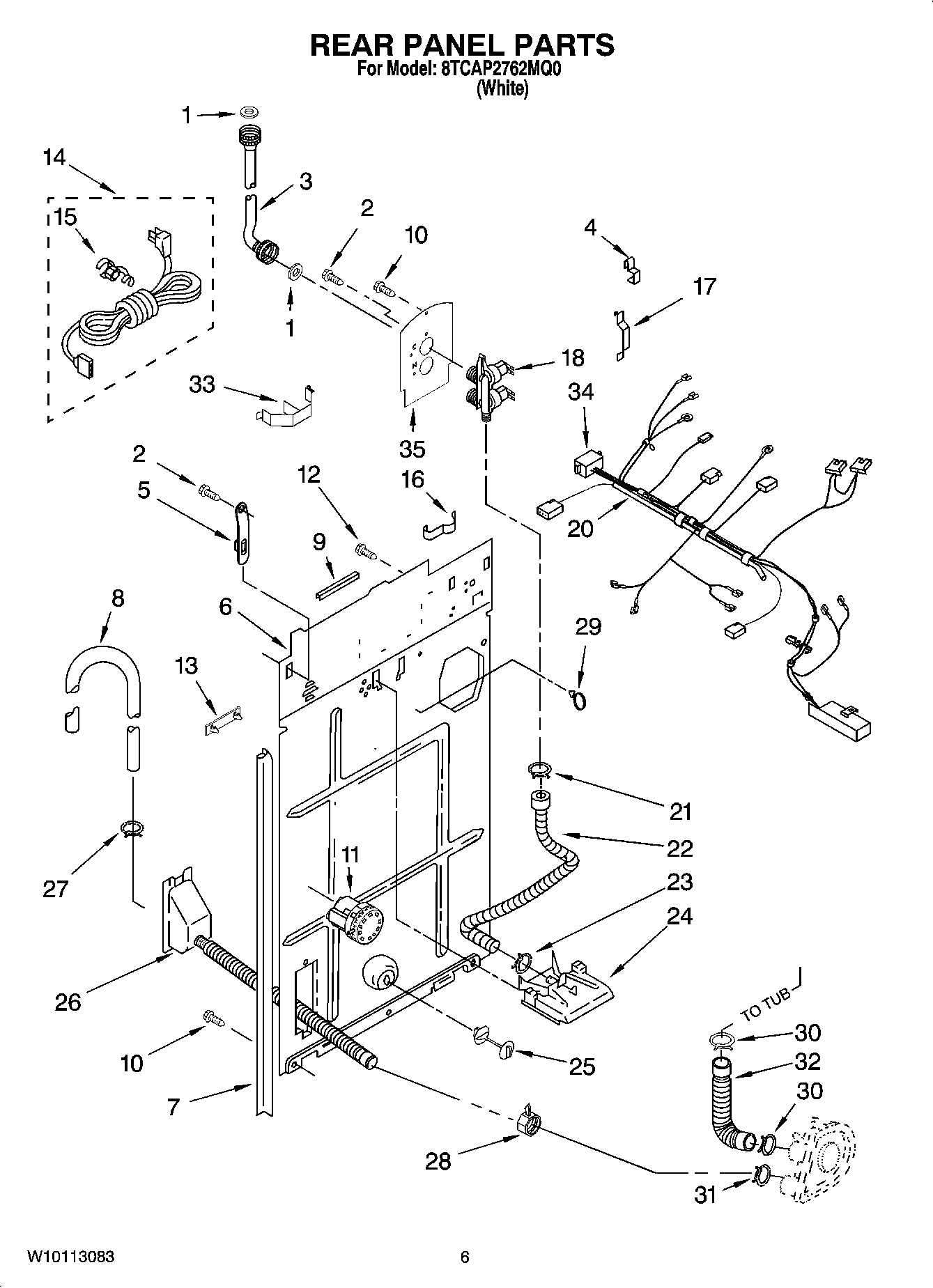

8TCAP2762MQ0 04 – REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP3949381 Whirlpool Fill Hose
3WP3949380 Whirlpool Fill Hose
4Clip, Harness
5WP8568314 Whirlpool Strap
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8WP96743 Whirlpool Hose
8285702 Whirlpool Extensions
9Edge Protector
10WP3390631 Whirlpool Screw
11W10339019 Whirlpool Washer Water Level Switch
12WP3351614 Whirlpool Screw
13WP389379 Whirlpool Retainer
14WP8559419 Whirlpool Power Cord
15Strain Relief, Power Cord
168528351 Whirlpool Clip
17Clip, Harness
18285805 Whirlpool Washer Water Inlet Valve
20WP353244 Whirlpool Hose
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
298559320 Whirlpool Clip
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
34Harness, Wiring (Includes Item 20)
35285930 Whirlpool Plate
35Miscellaneous Parts Bag
35Following Parts Not Illustrated
