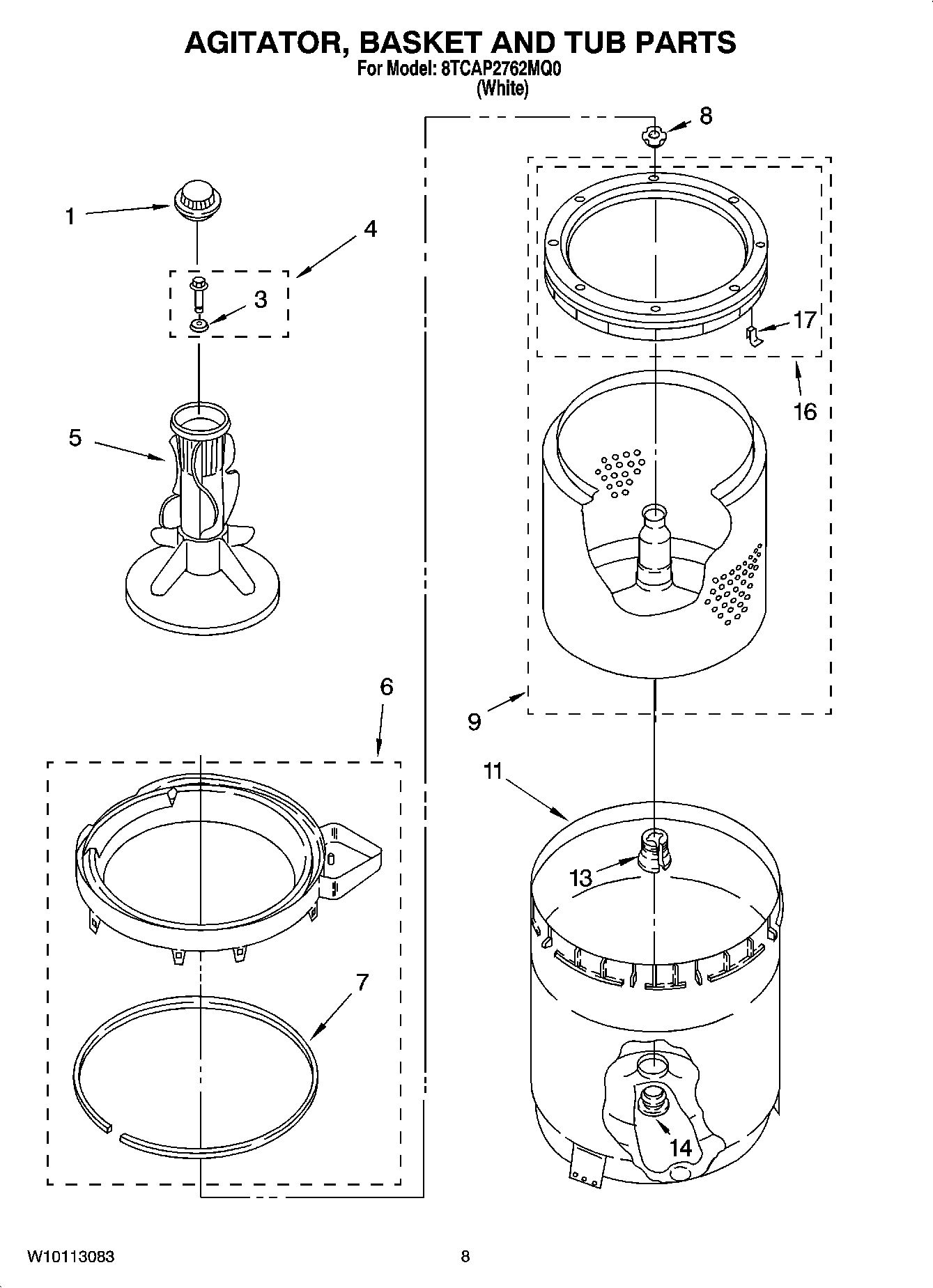

8TCAP2762MQ0 05 – AGITATOR, BASKET AND TUB PARTS

8TCAP2762MQ0 05 – AGITATOR, BASKET AND TUB PARTS

Written by

in

8TCAP2762MQ0 05 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
3WP3949550 Whirlpool Gasket Assembly
4WP358237 Whirlpool Agitator Bolt
5Agitator
6Tub Ring & Gasket Assembly
7WP3359586 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9Basket & Balance Ring
11Tub
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
16WP3956205 Whirlpool Balance Ring
17WP8519815 Whirlpool Washer Balance Ring Clip
