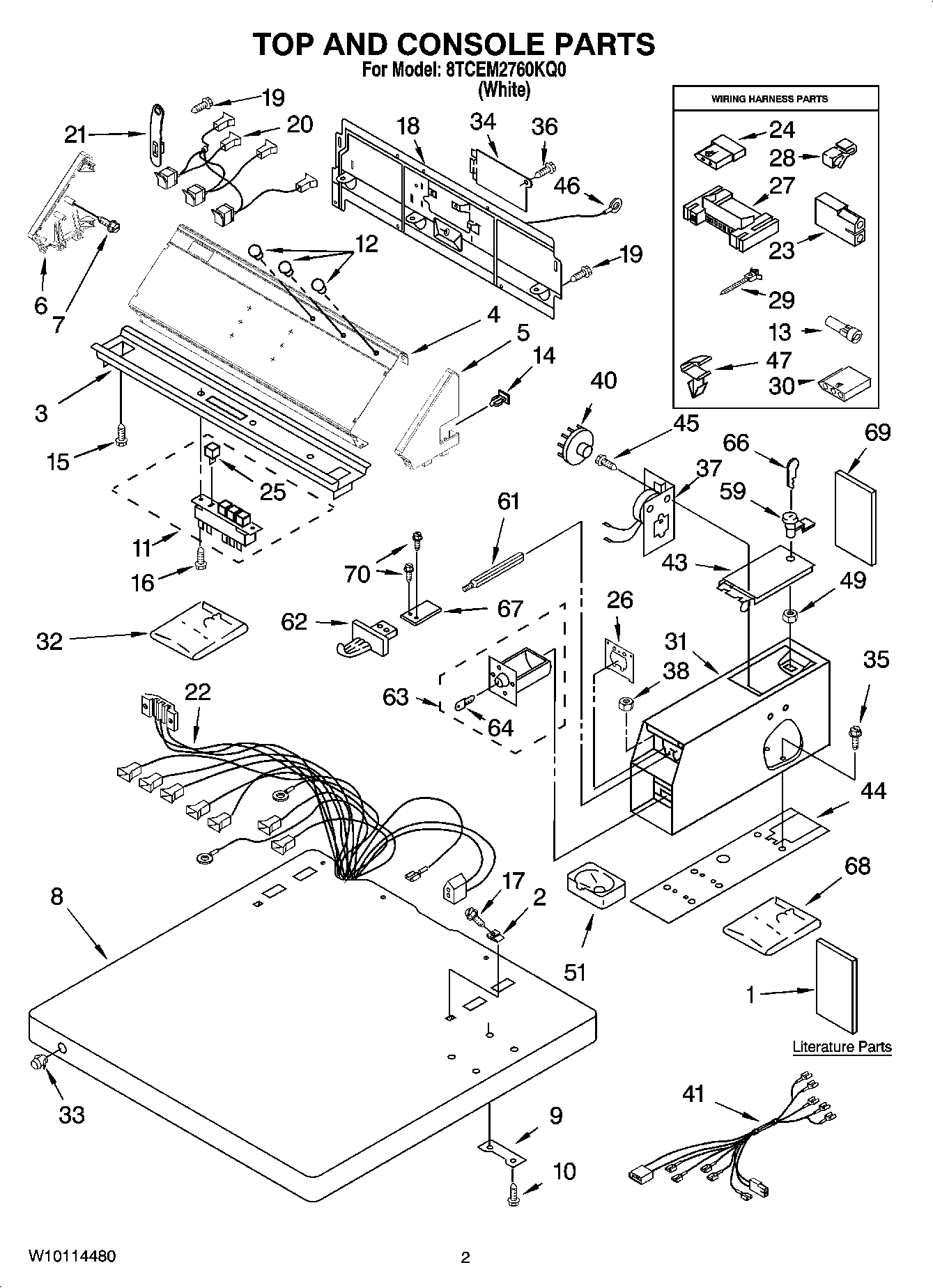

8TCEM2760KQ0 01 – TOP AND CONSOLE PARTS

8TCEM2760KQ0 01 – TOP AND CONSOLE PARTS

Written by

in

8TCEM2760KQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Service Parts List
1Sheet, Cycle Feature
1Instructions Installation
1Wiring Diagram
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
13Plug
14WP689559 Whirlpool Nut
16WP489128 Whirlpool Refrigerator Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator Assembly
21WP8568314 Whirlpool Strap
228576528 Whirlpool Wire Harness
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
303936144 Whirlpool Connector
31WPW10461200 Whirlpool Case
32WP3406965 Whirlpool Coin Chute
33WP387371 Whirlpool Plug
33Top Lock
34WPW10119283 Whirlpool Terminal Cover
35W11715721 Whirlpool Screw Assembly
36WP90767 Whirlpool Screw
37W11451464 Whirlpool Dryer Timer
38WP3400029 Whirlpool Dishwasher Nut
40WP339855 Whirlpool Cam
40WP339854 Whirlpool Cam
40WP339853 Whirlpool Cam
40WP343777 Whirlpool Cam
40WP3387974 Whirlpool Cam
413401682 Whirlpool Wire Harness
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
49WP90406 Whirlpool Nut
51WP385421 Whirlpool Coin Operated Laundry Funnel
51WPL ARI19537A7
59W11315637 Whirlpool Lock Assembly
61WP8576635 Whirlpool Bolt
62WPL 8316265
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI19538A6
66WPL ARI19539A6
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
