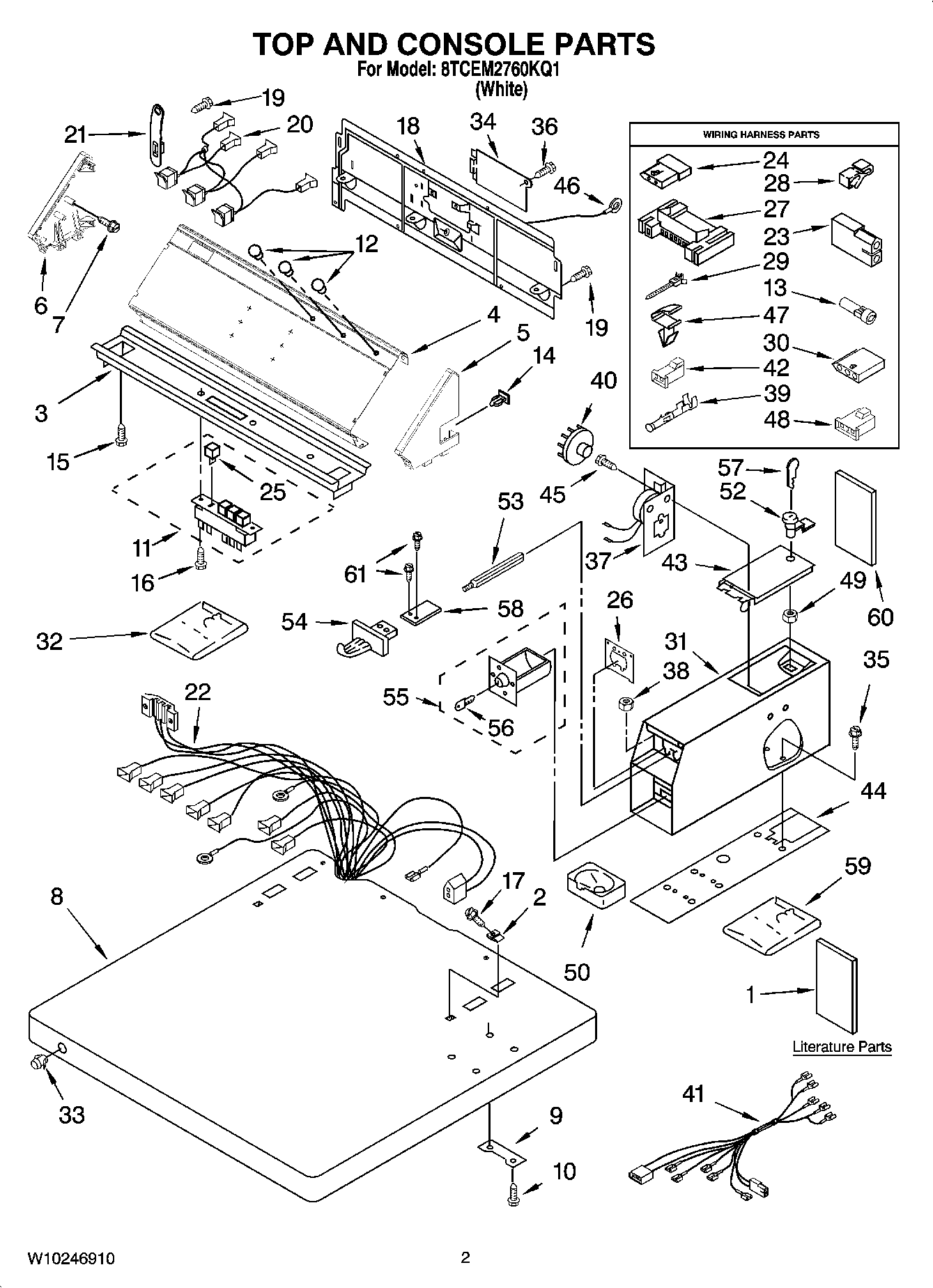

8TCEM2760KQ1 01 – TOP AND CONSOLE PARTS

8TCEM2760KQ1 01 – TOP AND CONSOLE PARTS

Written by

in

8TCEM2760KQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Service Parts List
1Wiring Diagram
1Sheet, Cycle Feature
1Instructions, Installation
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
13Plug
14WP689559 Whirlpool Nut
16WP489128 Whirlpool Refrigerator Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator Assembly
21WP8568314 Whirlpool Strap
228576528 Whirlpool Wire Harness
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
303936144 Whirlpool Connector
31WPW10461200 Whirlpool Case
32WP3406965 Whirlpool Coin Chute
33Also Available
33Top Lock
33WP387371 Whirlpool Plug
34WPW10119283 Whirlpool Terminal Cover
35W11715721 Whirlpool Screw Assembly
36WP90767 Whirlpool Screw
37W11451464 Whirlpool Dryer Timer
38WP3400029 Whirlpool Dishwasher Nut
39WP94614 Whirlpool Terminal
40WP339853 Whirlpool Cam
40WP339855 Whirlpool Cam
40WP343777 Whirlpool Cam
40WP339854 Whirlpool Cam
40WP3387974 Whirlpool Cam
413401682 Whirlpool Wire Harness
42Receptacle
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
48Receptacle, 3-Way Terminal (Use W/94614)
49WP90406 Whirlpool Nut
50WP385421 Whirlpool Coin Operated Laundry Funnel
50WPL ARI19543A6
52W11315637 Whirlpool Lock Assembly
53WP8576635 Whirlpool Bolt
54W11126319 Whirlpool Washer Dryer Coin Chute
54WPL 8316265
54Inserts (Not Shown
55W11190039 Whirlpool Coin Box Assembly
56WPL ARI19544A6
57WPL ARI19545A9
583390424 Whirlpool Extension
59WPL 8316524
60WPL 8316532
61WPL 3400086
