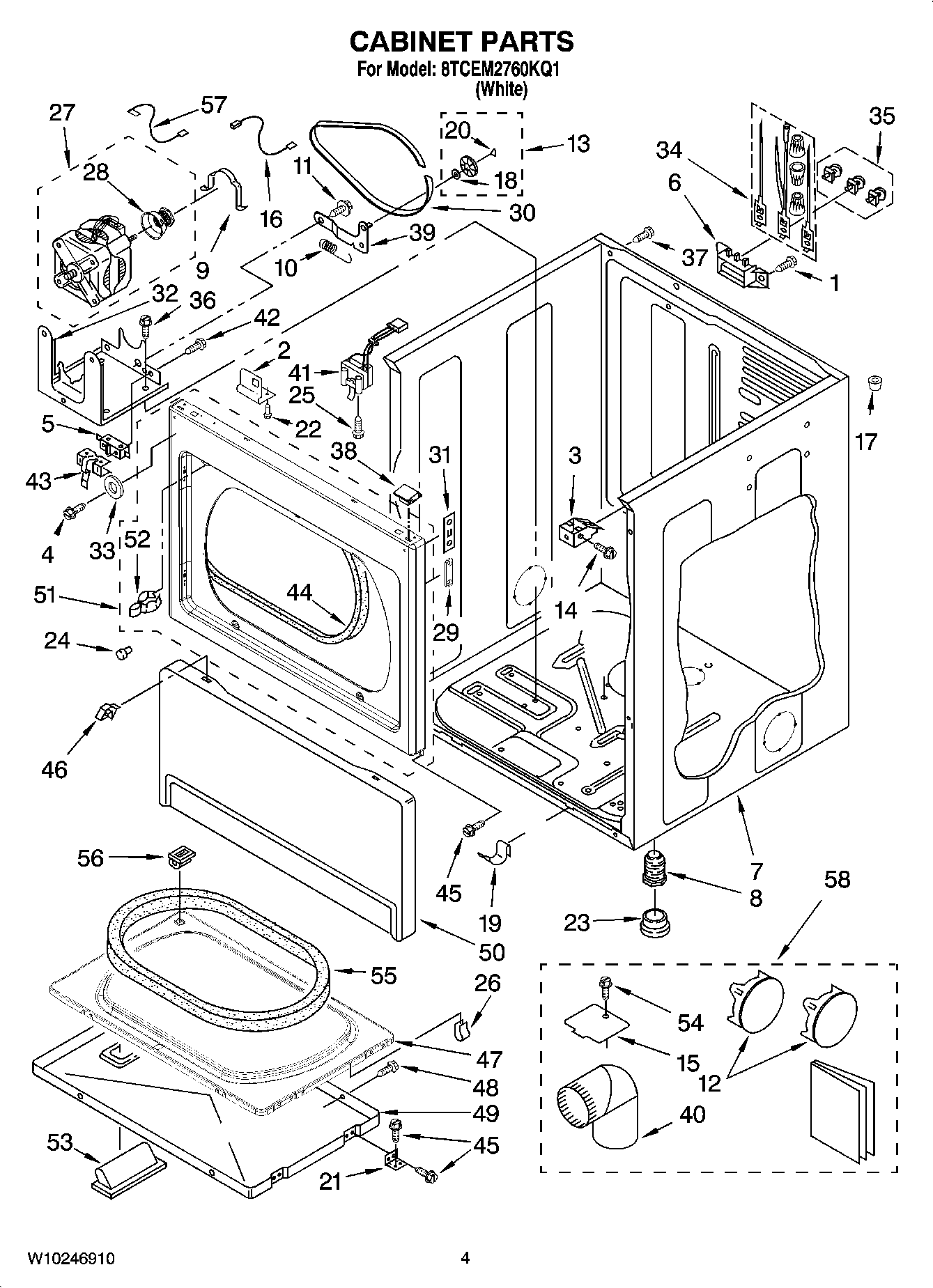

8TCEM2760KQ1 02 – CABINET PARTS

8TCEM2760KQ1 02 – CABINET PARTS

Written by

in

8TCEM2760KQ1 02 – CABINET PARTS

Products

PositionProduct
1WP308685 Whirlpool Microwave Screw
2Bracket, Lock
33391846 Whirlpool Clip
4WP3373329 Whirlpool Dishwasher Screw
5279782 Whirlpool Lid Switch
6WP3397659 Whirlpool Terminal Block
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16W10167612 Whirlpool Wire
17WPL 356674
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Rivet (2)
23WP3391943 Whirlpool Foot Boot
24693152 Whirlpool Bumper
25WP3395530 Whirlpool Screw
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28WP8066184 Whirlpool Dryer Motor Pulley
29W10191265 Whirlpool Plug
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34279318 Whirlpool Terminal
35279393 Whirlpool Terminal Block Screw and Nut Kit
36SCREW
37W10850756 Whirlpool Screw
38WP345670 Whirlpool Lock
39W10837240 Whirlpool Dryer Idler Pulley
404“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WP8066120 Whirlpool Lever Assembly
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
50WP3406797 Whirlpool Toe Panel
51W10242810 Whirlpool Panel
533389522 Whirlpool Handle
54WP693995 Whirlpool Screw
55WP3390735 Whirlpool Door Seal
56279570 Whirlpool Dryer Door Latch Kit
573398948 Whirlpool Wire
57Optional Parts Not Included
58W10470674 Whirlpool Dryer Side Vent Exhaust Kit
