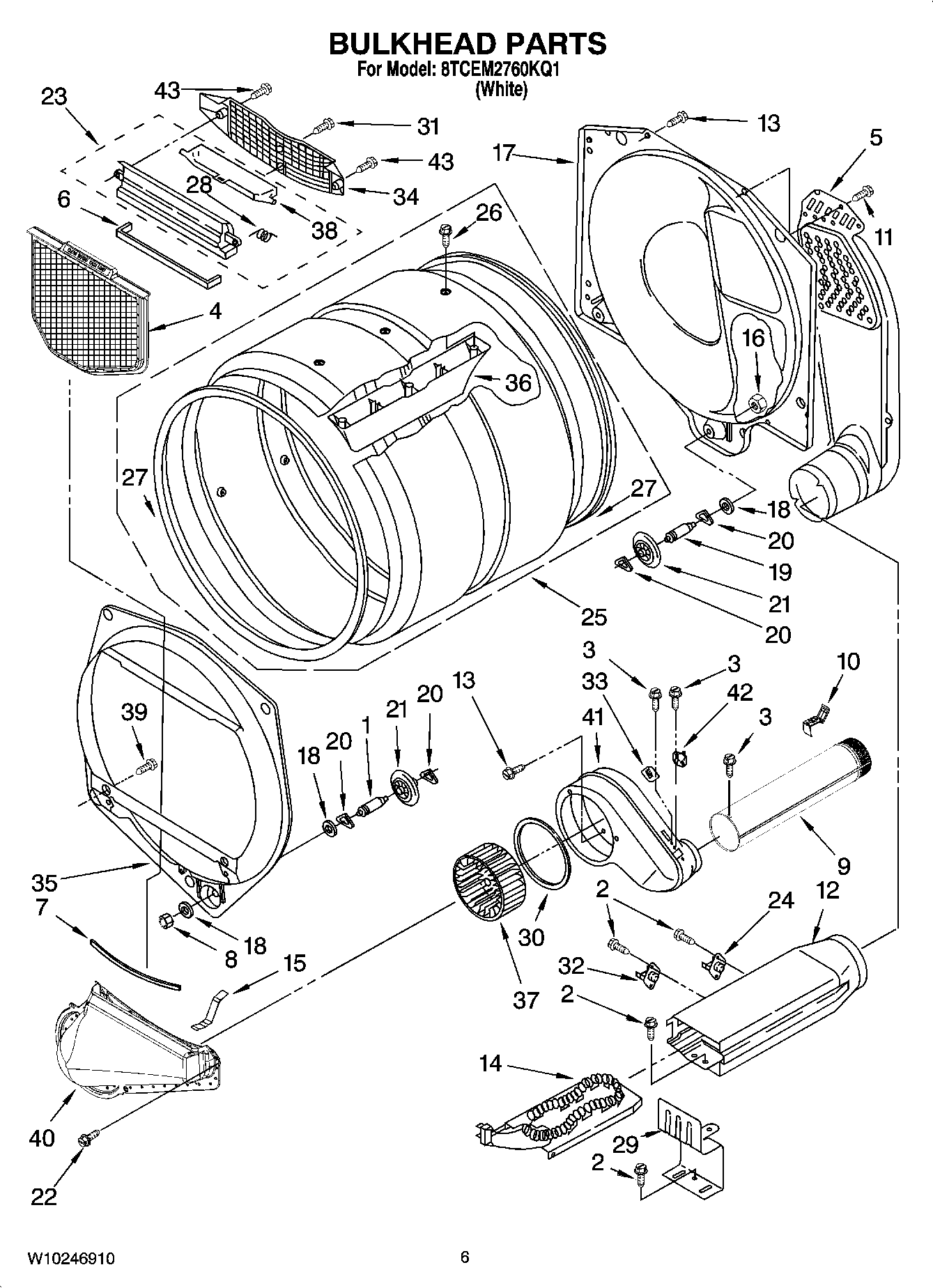

8TCEM2760KQ1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392067 Whirlpool Dryer Repair Kit
W11224254 Whirlpool Test Kit
ACCESSORY PARTS
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
1SHAFT
3WP90767 Whirlpool Screw
4W10120998 Whirlpool Dryer Lint Screen Filter
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9279936 Whirlpool Exhaust Pipe
10W11684573 Whirlpool Clip Assembly
11WP693995 Whirlpool Screw
12W10802681 Whirlpool Box Assembly
13WP488729 Whirlpool Refrigerator Door Screw
14W10864898 Whirlpool Dryer Heating Element
15WP8066208 Whirlpool Clip
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WP489463 Whirlpool Refrigerator Screw
23W11129408 Whirlpool Out Housing
24279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WP3394986 Whirlpool Spring
298066099 Whirlpool Bracket
30WP697770 Whirlpool Blower Cover Plate Seal
32THRMST-FIX
33WP3392519 Whirlpool Dryer Thermal Fuse
34W11086603 Whirlpool Dryer Link Screen Air Grille
35WP697557 Whirlpool Bulkhead Assembly
36WPW10113136 Whirlpool Drum Baffle
37WHEEL
38W11222846 Whirlpool Door
39WP308685 Whirlpool Microwave Screw
40WPW10128606 Whirlpool Lint Duct
41W10888146 Whirlpool Housing
42WP3387138 Whirlpool Cycling Thermostat
43WP3387230 Whirlpool Screw
