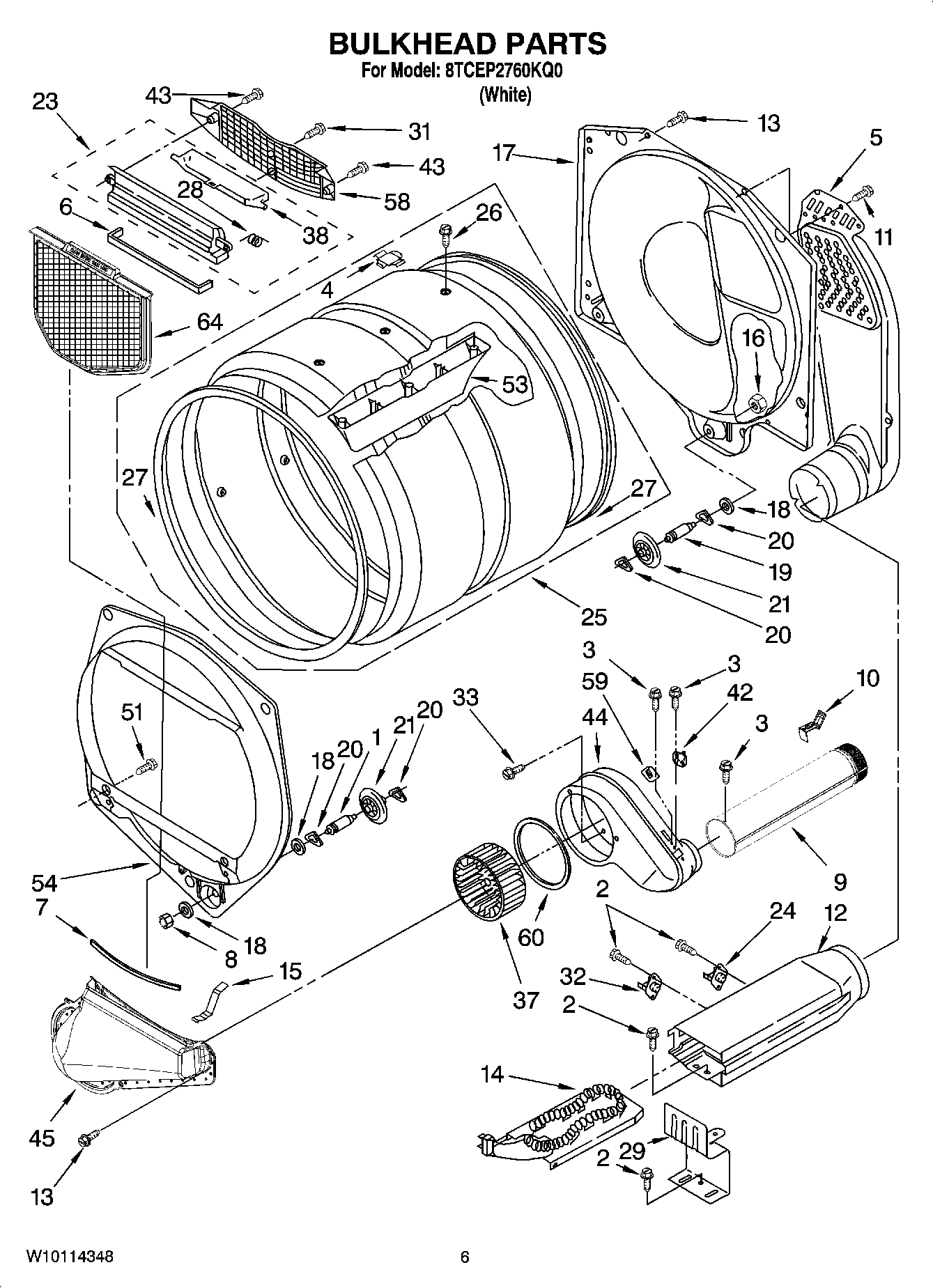

8TCEP2760KQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

8TCEP2760KQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

8TCEP2760KQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
4392067 Whirlpool Dryer Repair Kit
W11224254 Whirlpool Test Kit
ACCESSORY PARTS
1SHAFT
3WP90767 Whirlpool Screw
48066086 Whirlpool Plug
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9279936 Whirlpool Exhaust Pipe
10W11684573 Whirlpool Clip Assembly
11WP693995 Whirlpool Screw
12W10802681 Whirlpool Box Assembly
13WP488729 Whirlpool Refrigerator Door Screw
14W10864898 Whirlpool Dryer Heating Element
15WP8066208 Whirlpool Clip
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
23W11129408 Whirlpool Out Housing
24279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
25W10545923 Whirlpool Drum Assembly
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WP3394986 Whirlpool Spring
298066099 Whirlpool Bracket
32THRMST-FIX
33WP489463 Whirlpool Refrigerator Screw
37WP697772 Whirlpool Dryer Blower Wheel
38W11222846 Whirlpool Door
42WP3387138 Whirlpool Cycling Thermostat
43WP3387230 Whirlpool Screw
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
51WP308685 Whirlpool Microwave Screw
53WPW10113136 Whirlpool Drum Baffle
54WP697557 Whirlpool Bulkhead Assembly
58W11086603 Whirlpool Dryer Link Screen Air Grille
59WP3392519 Whirlpool Dryer Thermal Fuse
60WP697770 Whirlpool Blower Cover Plate Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
